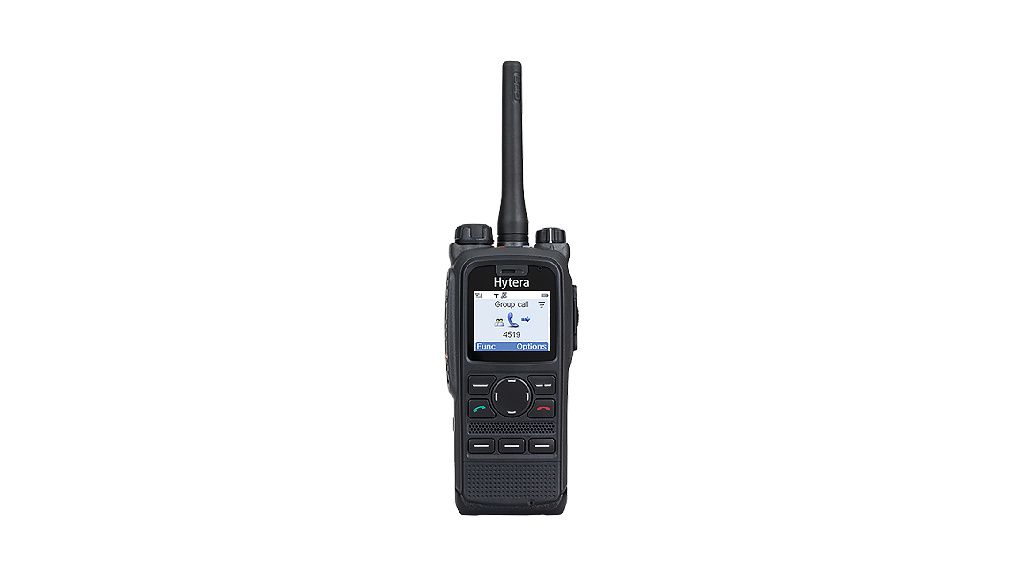

PT560H Mission Critical TETRA Portable Radio

Handheld | TETRA

Full of functionality, packed inside an ergonomic design, the Hytera PT560H TETRA handset boasts an IP67 protection to deliver unbeatable TETRA communication, no matter the environment.

Highlights of PT560H

VERSATILE VOICE CALLS

Supporting various voice call types, including; Private Call, Group Call, All Call and Emergency Call.

LONE WORKER

The lone worker feature uses a timer in the radio to measure inactivity. If the timer expires, a warning is issued, and if there is no response to that, the alarm is triggered.

BLUETOOTH AUDIO

Wireless connectivity to audio devices to improve user experience.

GPS

Global Positioning System, enabling location based services to improve safety and control.

MAN DOWN

The man down feature will let you know if the radio has been tilted past a certain angle. This may happen for instance if the radio user has fallen over or is unconscious or injured. The alarm will be triggered after a warning is issued to the user.

Specifications of PT560H

General data
User Interface
Transmitter
Location Service
Environmental Specs

General data
Frequency Range	380-430 MHZ
Dimensions(H×W×D) mm	127.5 mm × 55 mm × 36.5 mm; 127.5 mm× 55 mm× 39.5 mm(with 2000 mAh standard battery)
Weight	368g（with 2000 mAh standard battery and antenna）
Operating Voltage	7.4 V
Battery	Standard: 2000 mAh Smart Li-lon battery; Option: 2500 mAh Li-lon battery
Battery Life (TMO 5/5/90 duty cycle)	>22 H（2000 mAh）; >27 H（2500 mAh）

User Interface
Display	1.8 inch，160*128 pixels，262144 colors
Talk Group-TMO	6000
Talk Group-DMO	4000
Telephone book	2000
Inbox	400
Outbox	50
State Message	200

Transmitter
Channel Bandwidth	25 kHz
RF Power Output	3 W
RF Power Level Accuracy	±2 dB
RF Power Control	5 dB per step, 5 levels and 4 steps in total
Receiver Class	ETSI EN 392-2/396-2 Class A and Class B
RX Sensitivity(Static)	≤-116 dBm（typical-118 dBm）
RX Sensitivity(Dynamic)	≤-107 dBm（typical-109 dBm）
Audio Power Output	2 W(Max: 3 W)

Location Service
RX Sensitivity	Acquisition sensitivity: -146 dBm; Tracking sensitivity: -165 dBm
Horizontal Position Accuracy	≤2.5 m (50% probable -130 dBm）
Cold Start (Time to First Fix)	<35 s
Hot Start (Time to First Fix)	<1 s
Note	Conditions: Open Sky environment, 130 dBm signal strength, 24 H static

Environmental Specs
Operating Temperature	-30℃ ~ +60℃
Storage Temperature	-40℃ ~ +85℃
Dust & Water Protection	IP65/66/67/68 Per IEC60529
Humidity	ETS 300-019-1-7 Class 7.3E; MIL-STD-810 G
Vibration,Drop&Shock	ETS 300-019-1-7 Class 5M3; MIL-STD-810 G; GJB150A-2009
