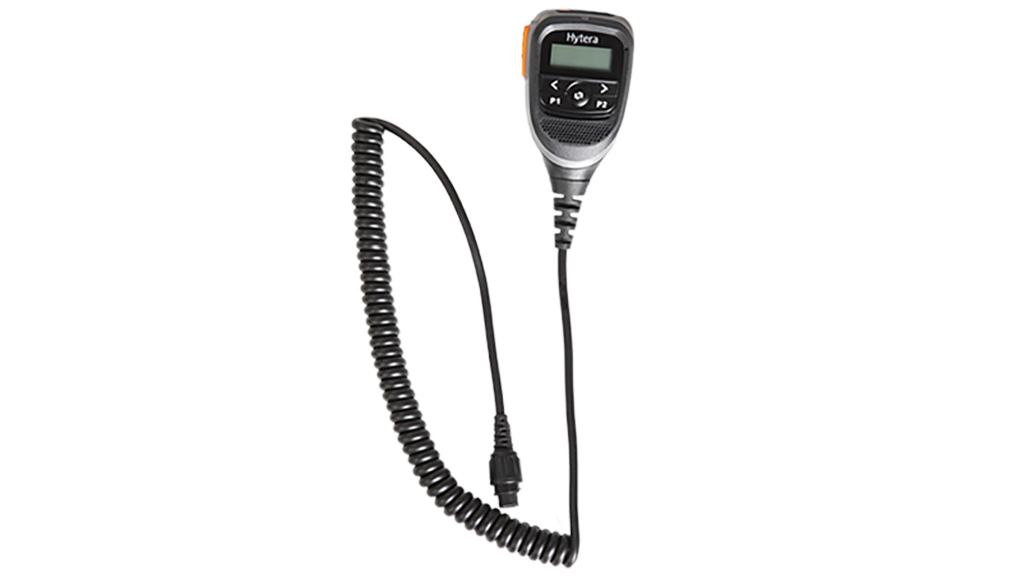

30030000000141 - SM25A3 Remote Speaker Microphone with LCD Display -- for E-pack100, E-pack200, E-center

30030000000141 - SM25A3

Ergonomically designed and IP54 compliant remote speaker microphone with LCD display. It can control functions of digital wireless ad hoc network repeaters such as power on and off, audio output and input, emergency alarm, display and configuration parameters (status information display, volume adjustment, power switching, frequency switching, etc.)

Specifications of 30030000000141 - SM25A3

  • Specifications
Specifications
Dimensions 92.8 x 62.5 x 32.1 mm
Weight about 160g
Color black
PTT Key available
Emergency Key available
Connector 10-pin connector
Cable length max. 2.2 m (fully extended coiled cord)
Microphone Sensitivity –42±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa
Speaker Power 2 W (rated); 3 W (max.)
Speaker Impedance 20 Ω ±15% @ 1.5 kHz
Speaker Frequency Response 97 ±3 dB @ 1 kHz 2 W/30 cm
Ingress protection IP54
Operating Temperature -30°C to 65°C
Storage Temperature –40℃ to 85℃
PTT cycles ≥ 100,000
Applicable devices E-pack100, E-pack200, E-center

* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
