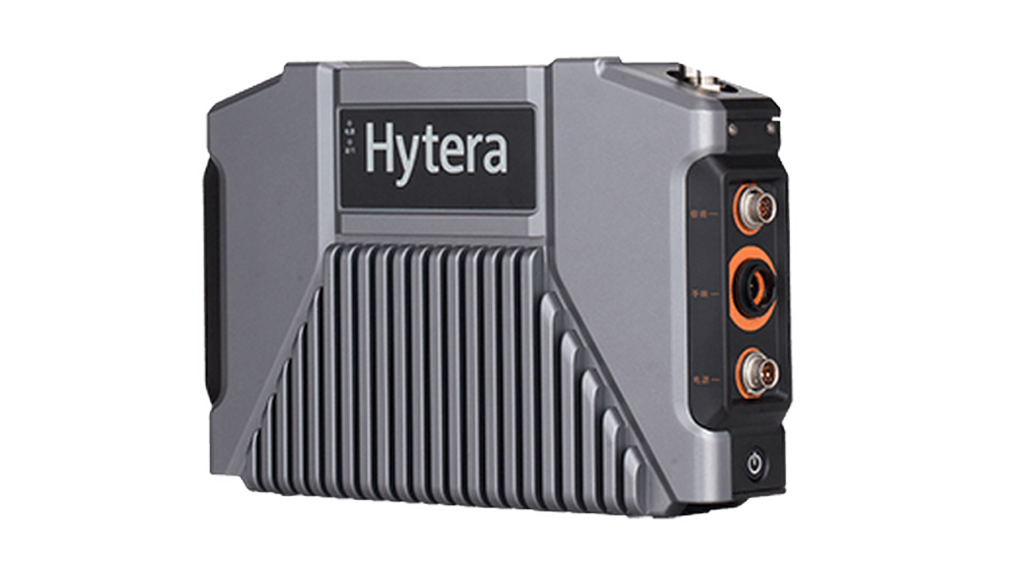

The Hytera Digital Wide Area NETworking (WANET) Ad Hoc Repeater E-pack100 is intended for fast and flexible communication system deployment. The E-pack100 can not only be used as a radio to make and receive calls, it also can also create a wireless mobile Ad Hoc network to route voice. One E-pack100 can function as a radio, repeater, and mesh node with one frequency, greatly saving frequency resources. With it’s light, small and IP67 design, the E-pack100 can be installed in a vehicle, carried in a backpack, or be pole or wall-mounted making it suitable for deployment as temporary communication or to provide or extend indoor coverage.
General | |
---|---|
Protocol | DMR Tier ll |
Networking capacity | 31 |
Operating bandwidth | 25KHz |
Channel spacing | 12.5k |
Frequency | 136-174 MHz 410 - 470 MHz |
Tx Power | 5/10/20W Adjustable |
Rated voltage | DC 14.8V |

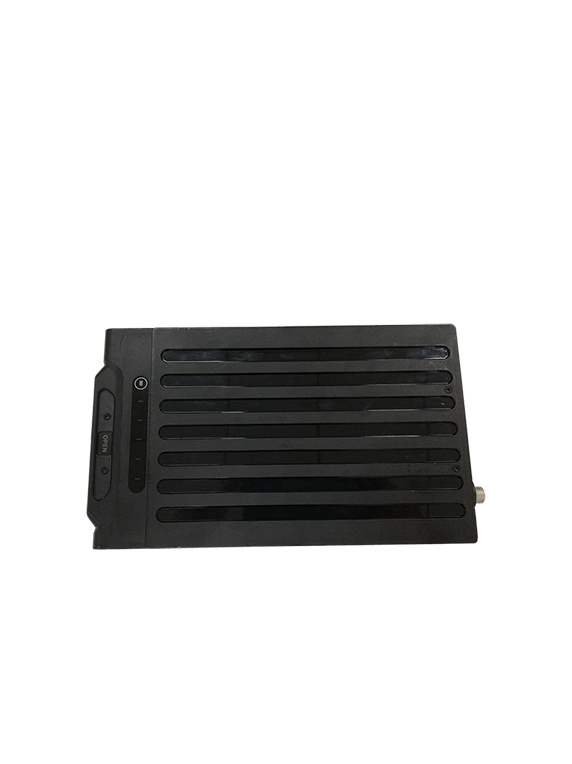

Battery capacity | 185WH |
Charging time | Rapid charge 2h 80%; 3h fully charged |
Battery life | About 10 hours (15–85 duty cycle) |
Vocoder type | AMBE++/NVOC |
Frequency stability | ±0.5ppm |
American MIL-STD | MIL-STD-810 C/D/E/F/G |
Dust & water intrusion | IP67 |
Antenna impedance | 50Ω |
Dimensions (LxWxD) | 295 x 187 x 68mm |
Weight | 3.6Kg (with battery) |
Storage temperature | -40 °C to +85°C |
Operating temperature | -30°C to +60°C |
E-Pack Antenna (136-139 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (138-141 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (140-143 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (142-145 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (144-147 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (146-149 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (148-151 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (150-153 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (152-155 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (154-157 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (156-159 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (158-161 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (160-163 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (162-165 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (164-167 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (166-169 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (168-171 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
E-Pack Antenna (171-174 MHz)F4 Platform mast /No suction cap /Thick soft rod. Gain=2.15dBi/ VSWR≤1.5/ PL-259 Male
UHF Antenna (Model: TQC-400FC) (440-456 MHz) -- for E-Pack
UHF Antenna (Model: TQC-400FC) (454-470 MHz) -- for E-Pack
