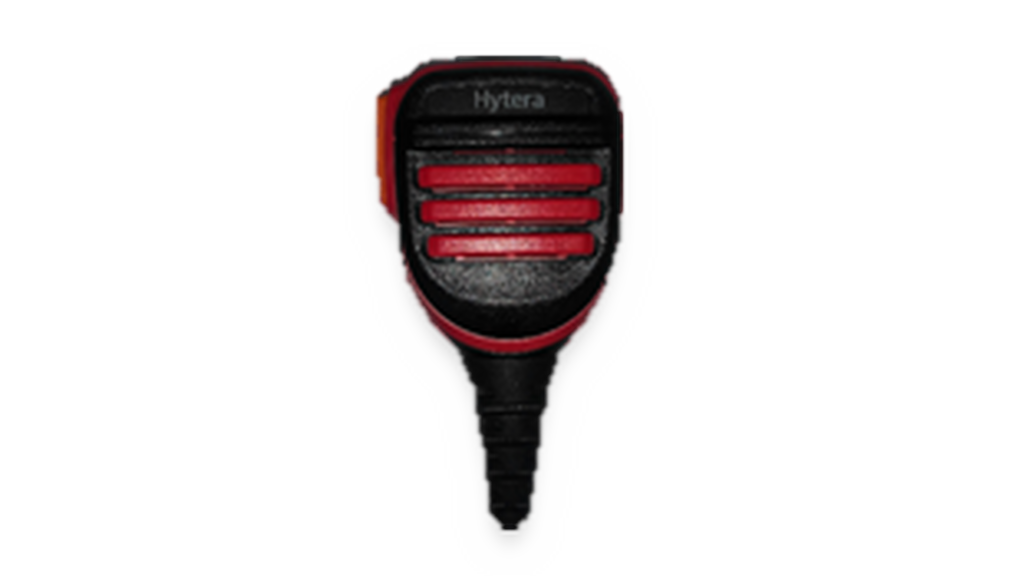

Specifications of SM26N13P-Ex
- Specifications
| Specifications | |
|---|---|
| Dimensions | 76.85 x 60.55 x 34（mm） |
| Weight | about 168g |
| Color | black-red |
| PTT Key | available |
| Emergency Key | available |
| Radio connector | 13-pin connector |
| Microphone Sensitivity | -42 ±3dB @1kHz 3.0V 2.2K, 0dB=1V/Pa |
| Speaker Power | 1.5 W (rated); 2 W (max.) |
| Speaker Impedance | 16Ω ±15% @ 1.2 kHz |
| Speaker Frequency Response | 94 ±3dB @1kHz 1W/30cm (at 300Hz~3.4kHz AVE) |
| Certification | CE, IECEx, ATEX, FM |
| IP Rating | IP67 |
| Intrinsically safe certification (IECEx) | Ex ib Mb Ex ib IIC T4 Gb Ex ib IIIC T90℃ Db |
| Operating Temperature | –25℃ to 60℃ |
| Storage Temperature | –40℃ to 85℃ |
| Suitable radios | HP715Ex IIA, HP715Ex IIC, HP795Ex IIA, HP795Ex IIC, PT890Ex |
