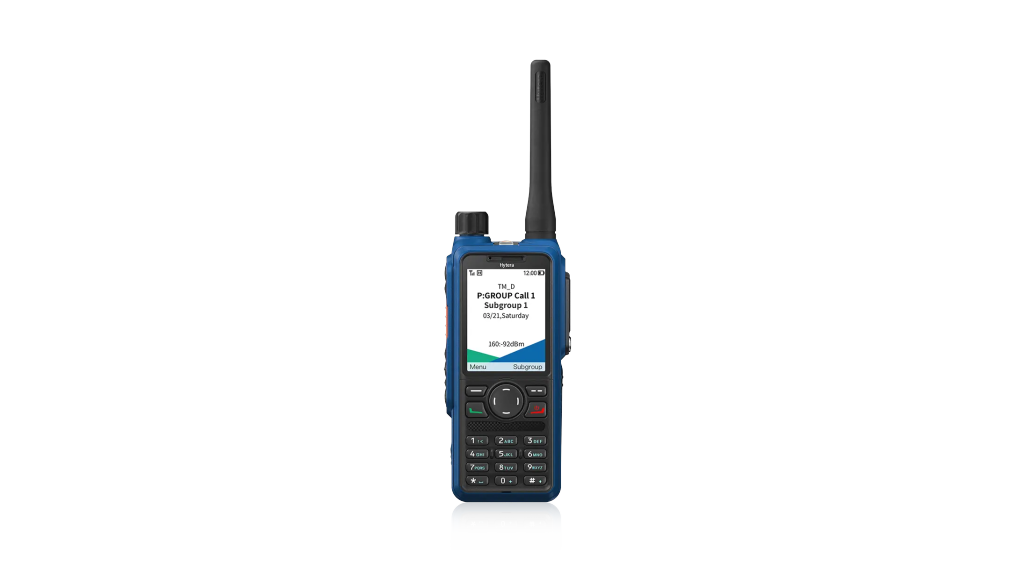

Highlights of HP795Ex IIA
Built for Personnel Safety
Optional standalone mode settings. In case of danger, the HP795Ex IIA will activate
the man-down alarm function, precisely sending location details to protect the personal
safety of team members.
Versatile Connectivity
Supports BT 5.3, WLAN, and NFC functionalities, allowing for the expansion of third-party
application solutions, enabling remote and tag management of radios, ensuring efficient
terminal management.
Easy to Use
User-friendly UI design, upgraded 2.4-inch screen, and multifunctional buttons, along
with large LED indicator lights, providing a comfortable viewing experience, convenient
operation, and doubled efficiency.
Authoritative IS Certifications
Through the rigorous testing of the globally recognized certification organizations, HP795Ex IIA obtains the IECEx/ATEX certificates, to reduce the risk of accidents, and ensure the safety of users and operators.
Clear and Loud Voice
With a 2W high-power speaker, the audio is louder. Integrated with AI intelligent noise reduction algorithm, automatic gain control (AGC), and other multiple audio technologies, HP795Ex IIA isolates kinds of noisy backgrounds, and addresses weak sound issues, to make critical voice information clearer and more reliable.
Extended Coverage
5W(VHF)/4W(UHF) TX power extends the coverage area. Critical information can be received even in remote areas, reducing coverage blind spots, enabling rapid response, and collaborating in the timely handling of critical missions.
Rocksolid & Longlasting Battery
Designed with a high-grade battery protection board and battery lock, HP795Ex IIA avoid potential sparks even dropped accidentally, and ensures the safe use of the battery in hazardous circumstances. Additionally, HP795Ex IIA prompt on screen with flashing red LED indicator, effectively addressing the security risks of non-original batteries. It also adopts a large-capacity intelligent IS battery and power-saving technology design to reduce standby power consumption, meeting the need for extended communication, and allowing seamless shift changes.
Wider range of operation temperature (in Ex area)
Thanks to new explosion-proof materials and advanced mechanical design, the HP795Ex IIA is built to work under temperatures from –25°C to 50°C in explosion-prone areas. With stable and even heat dissipation, the HP795Ex IIA is engineered to work in extreme conditions, bringing extra safety and efficiency to everyday work.
Specifications of HP795Ex IIA
- General
| General | |
|---|---|
| Frequency range | 400-480MHz;136-174MHz;350-400MHz;330-400MHz |
| Channel Capacity | 1024 |
| Zone Capacity | 64 |
| Operating voltage | 7.4 V (rated) |
| Battery | Standard: 1950 mAh lIC intrinsically safe Li battery (Typical) Optional: 2850 mAh lIC intrinsically safe Li battery (Typical) |
| Battey Life(5/5/90 Duty Cycle,High TX Power) | Standard battery: 19h (GNSS OFF)/16h (GNSS ON) Optional battery: 29h (GNSS OFF)/25h (GNSS ON) |
| Dimensions(H×W×D) mm | 130*55*37mm(with standard battery) 130*55*41mm(with optional battery) |
| Weight | about 390g (with standard battery and antenna) about 437g (with optional battery and antenna) |
| Display | LCD,320x240 pixel, 262000 colors, 2.4inch |
* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
Standard Accessories of HP795Ex IIA

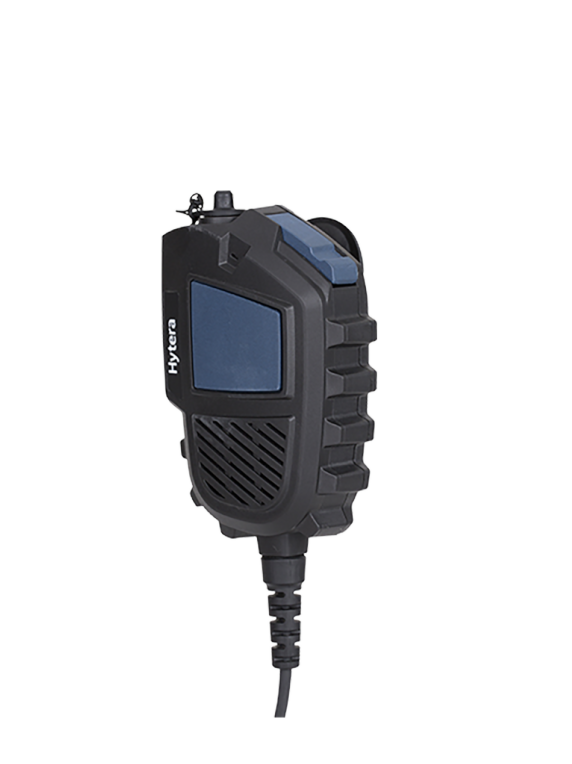

Optional Accessories of HP795Ex IIA
