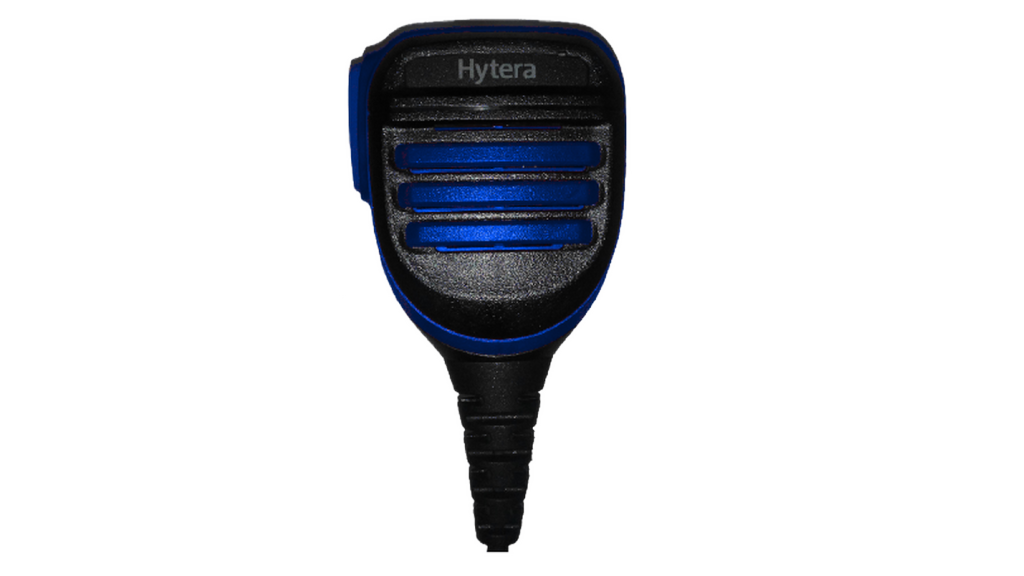

Specifications of SM26N13P-Ex BLUE
- Specifications
| Specifications | |
|---|---|
| Dimension (mm) | 76.85 x 60.55 x 34 |
| Weight | about 168g |
| Colour | black-blue |
| PTT Key | available |
| Emergency Key | available |
| Radio connector | 13-pin connector |
| Microphone Sensitivity | -42 ±3dB @1kHz 3.0V 2.2K, 0dB=1V/Pa |
| Speaker Impedance | 16Ω ±15% @ 1.2 kHz |
| Speaker Power | 1.5 W (rated); 2 W (max.) |
| Speaker Frequency Response | 94 ±3dB @1kHz 1W/30cm (at 300Hz~3.4kHz AVE) |
| IP Rating | IP67 |
| Certification | CE, IECEx, ATEX, FM |
| Intrinsically safe certification (IECEx) | Ex ib Mb Ex ib IIC T4 Gb Ex ib IIIC T90℃ Db |
| Operating Temperature | –25℃ to 60℃ |
| Storage Temperature | –40℃ to 85℃ |
| Suitable radios | HP715Ex IIA, HP715Ex IIC, HP795Ex IIA, HP795Ex IIC, PT890Ex |
* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
