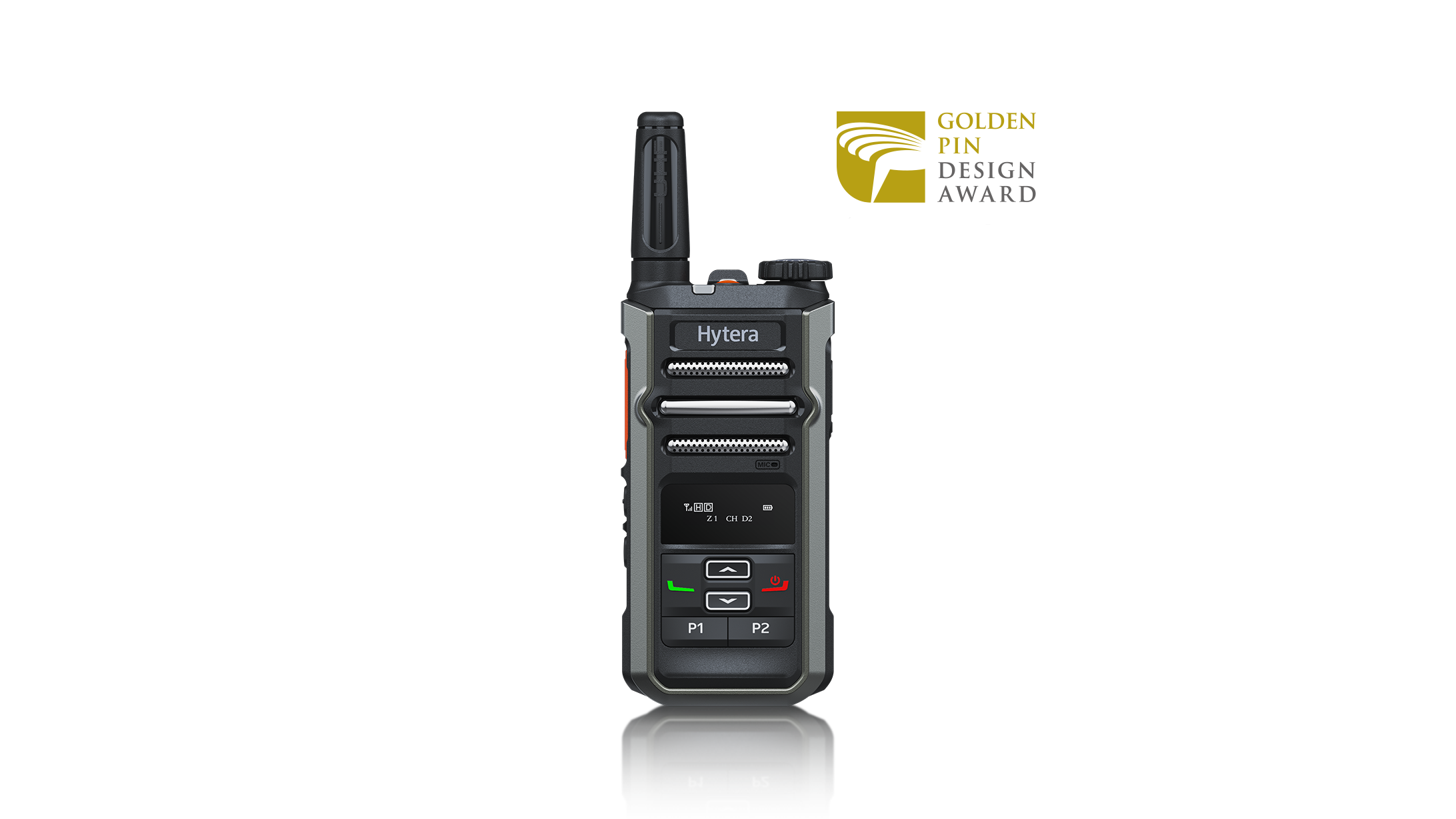

Highlights of BP365
IMPROVED USER EXPERIENCE
Long-life keys | 3.5 mm jack audio connector | USB Type-C port for programming and
upgrading.
FAST CHARGING
100% charged in 2.5 hours | Thanks to USB Type C connectivity it can be easily charged
with standard USB cables and power supply units and even USB power banks.
EXTENDED COMMUNICATION
Stay always connected with brand-new RF solution, 3W TX power and a RX sensitivity
up to 0.18 μV
EXCELLENT COVERAGE
The BP5 has a high sensitivity receiving module and high efficiency monopole antenna
to enhance signal penetration and achieve better call affect even in weak signal areas.
In addition, the monopole antenna has a unique thick screw thread design and is not
easy to break and bend, it helps to enhance antenna life time and also increase the
radiation efficiency compared to traditional antennas by 10% to extend radio communication
distance.
SIMPLE AND STYLISH
Metal channel selector knob | metal mesh speaker | dual-shot injection molding & plating
case
Specifications of BP365
- General data
- Receiver
- Transmitter
- Environmental Specs
| General data | |
|---|---|
| Frequency Range | 400-440MHz, 430-470MHz |
| Channel Capacity | 256 |
| Zone Capacity | 8 |
| Channel Spacing | 12.5 kHz/20 kHz/25 kHz |
| Operating Voltage | 3.8 V (rated) |
| Battery | 2,200mAh Li-Polymer |
| Battey Life(5/5/90 Duty Cycle,High TX Power) | Analog: 10 hours Digital: 14 hours |
| Frequency Stability | ±0.5 ppm |
| Antenna Impedance | 50 Ω |
| Dimensions(H×W×D) mm | 158 mm x 55 mm x 24 mm |
| Weight | 135 g |
| Display | 0.9 inch OLED |
| BT | BT 5.0 BLE+EDR |
| Receiver | ||
|---|---|---|
| Sensitivity(Analog) | 0.18 μV (12 dB SINAD) | |
| Sensitivity(Digital) | 0.18 μV/BER5% | |
| Adjacent Channel Selectivity | TIA-603: 60 dB@12.5 kHz / 70 dB@20/25 kHz ETSI: 60 dB@12.5 kHz / 70 dB@20/25 kHz | |
| Intermodulation | TIA-603: 70 dB@12.5/20/25 kHz; ETSI: 65 dB@12.5/20/25 kHz | |
| Spurious Response Rejection | TIA-603: 70 dB@12.5/20/25 kHz; ETSI: 70 dB@12.5/20/25 kHz | |
| Blocking | TIA-603: 80 dB; ETSI: 84 dB | |
| Hum&Noise | 40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz | |
| Rated Audio Power Output | 0.5 W | |
| Rated Audio Distortion | ≤3% | |
| Audio Response | +1~-3 dB | |
| Conducted Spurious Emission | <-57dBm | |
| Transmitter | ||
|---|---|---|
| RF Power Output | 3 W/1 W | |
| FM Modulation | 11K0F3E@12.5 kHz; 14K0F3E@20 kHz; 16K0F3E@25 kHz | |
| 4FSK Digital Modulation | 12.5 kHz data only: 7K60FXD; 12.5 kHz data and voice: 7K60FXW | |
| Conducted/Radiated Emission | -36 dBm＜1 GHz; -30 dBm＞1 GHz | |
| Modulation Limiting | ±2.5 kHz@12.5 kHz; ±4.0 kHz@20 kHz; ±5.0 kHz@25 kHz | |
| FM Hum&Noise | 40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz | |
| Adjacent Channel Power | 60 dB@12.5 kHz; 70 dB@20/25 kHz | |
| Audio Distortion | ≤3% | |
| Digital Vocoder Type | AMBE+2™ | |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 | |
| Environmental Specs | ||
|---|---|---|
| Operating Temperature | -20 ℃ to +50 ℃ | |
| Storage Temperature | -40 ℃ to +85 ℃ | |
| ESD | IEC 61000-4-2（Level 3） ±4kV (Contact) , ±8kV (Air) | |
