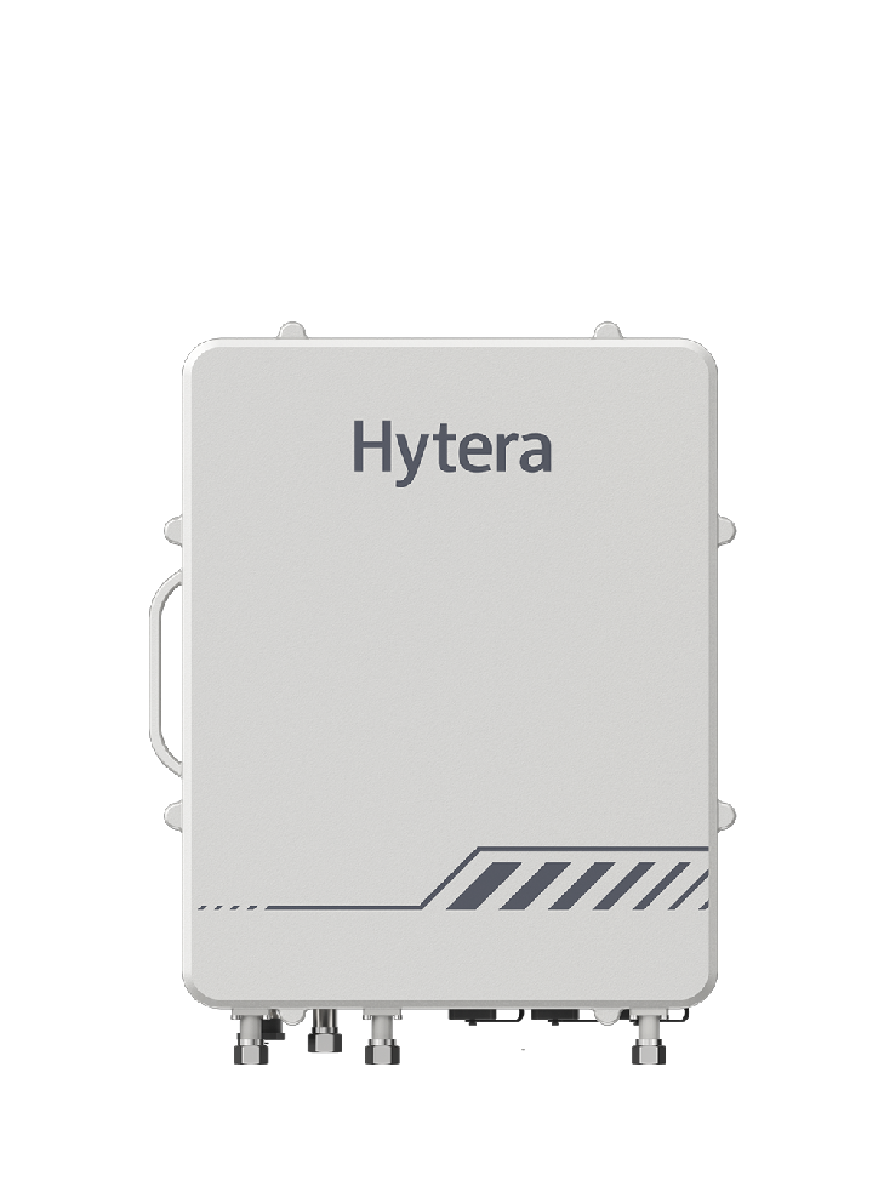

Highlights of DS-6250S
Powerful performance with wide coverage
The DS-6250S makes radio users confident to communicate anywhere in the field. It
features a maximum output power of 50 W and supports tri-diversity receiving. In addition,
it can be directly mounted on the top of buildings and towers, reducing loss caused
by feeder, connectors, etc.
SDR technology, easy to expand and maintain
The DS-6250S allows users to remotely configure its frequency, output power and number
of carriers through the software - without buying any additional hardware or conducting
reconstructions, facilitating frequency applications and subsequent network expansion.
Low power consumption, slash operational costs
The DS-6250S features low power consumption of less than 350W, just one-third of traditional
base stations. When powered by solar power system or UPS, it uses fewer batteries
and takes up less space greatly saving money for site renting and electricity fee.
Moreover, with lower power consumption design and high efficient heat dissipation,
it requires no dedicated air conditioner. All of these help keep the operational costs
to a minimum.
All in one design, born for outdoor
DS-6250S adopts an integrated high-integration design, with a volume of less than
20 L and a weight of only 16.7 kg, which is easy to transport to any place, greatly
reducing the installation cost. It can be adapted to outdoor environments and doesn't
require base station shelter protection, reducing deployment costs.
High reliability
IP68 and 20 kA lightning protection, can withstand temperatures ranging from -40°C
to 55°C, strong environmental adaptability. What's more, the DS-6250S can support
1+1 redundancy.
Flexible deployment
The DS-6250S can be swiftly mounted on walls, poles, vehicles, and trolleys, enabling
the full potential of DMR Tier lll to be harnessed in any environment. The fast and
flexible deployment saves much time and costs, making various dispatching services
possible.
Efficient networking
The DS-6250S comes with a RJ45 port and a SFP port, both of which can be used for
wired cascading and support external wireless link equipment. Moreover, the DS-6250S
can create networks separately or together with the DS-6210/DS-6211 base stations.
Flexible frequency usage
Built on multi-carrier technology, the DS-6250S utilizes carrier spacing above 50
kHz. What's more, it supports the DMR trunking simulcast feature, which enables base
stations to use the same frequency in the network for better use of spectrum resources.
Specifications of DS-6250S
- BS Specificaition
- Receiver
- Transmitter
| BS Specificaition | |
|---|---|
| Standard Compliance | DMR |
| Frequency Range | UHF1: 415-445MHz; VHF: 136-174MHz |
| Carrier Capacity | 8 (extendable to 24 carriers at most) |
| Power Supply | DC 48V / AC 220V with power adapter |
| Power Consumption | UHF: ≤350W; VHF: ≤210W |
| Clock Synchronization | GPS/Beidou/Glonass/Galileo/PTP |
| Dimensions(H×W×D) mm | 447mm×357mm×125mm |
| Weight | ≤16.7kg |
| Operating Temperature | -40 to +55℃ |
| Storage Temperature | -40 to +85℃ |
| Relative Humidity | 5% to 100% RH |
| IP Rating | IP68 |
| Wind Resistant | 240km/h |
| Lightning Protection | 20kA |
| Mean Time Between Failures(MTBF) | ≥100000h |
| Receiver | ||
|---|---|---|
| RX Sensitivity(Static) | -122dBm@BER5% | |
| Transmitter | ||
|---|---|---|
| TX Power | UHF:; 2 -carrier: ≤50W; 4 -carrier: ≤25W; 8 -carrier: ≤10W; VHF:; 1 -carrier:≤ 50W; 2 -carrier:≤ 25W; 4 -carrier:≤ 10W | |
* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
