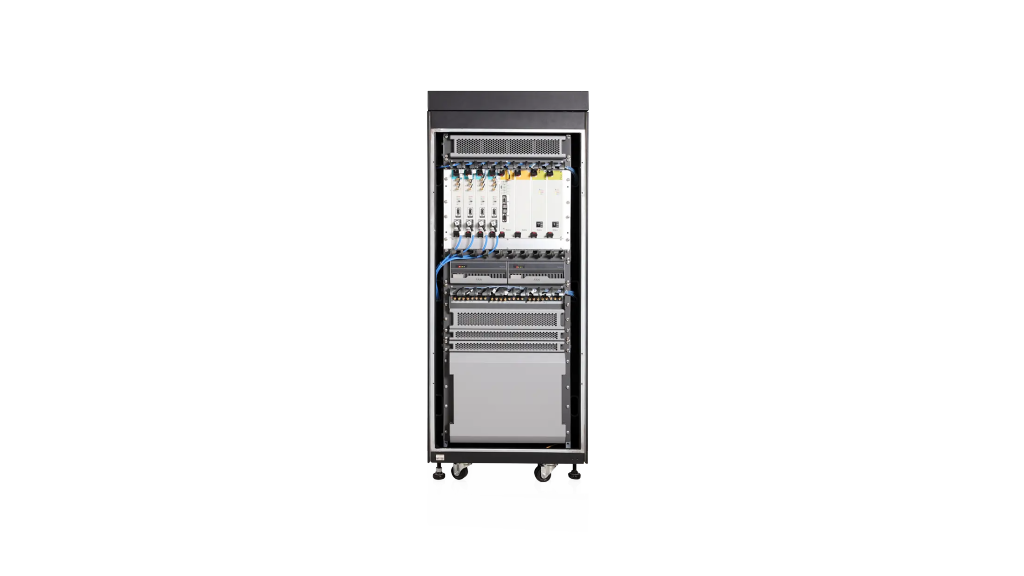

Specifications of DS-6210
- System Performance
- BS Specificaition
- Receiver
- Transmitter
| System Performance | |
|---|---|
| Max. BS Capacity | 512 |
| Max. Carrier Capacity per BS(carrier) | 16(extendable to 48 carriers at most) |
| Network Capacity (carrier) | 2048 |
| Subscriber Capacity per MSO | 100000 |
| LDS Capacity (pcs) | 50000 |
| NMC Capacity (pcs) | 64 |
| MPT Interconnect (way per gateway) | 16 |
| PSTN/PABX Interconnect (way per gateway) | 60(2xE1)/30(1xE1) |
| Group Call Set-up Duration (ms) | <300(within a single MSO) |
| Max. Number of Interconnected MSOs | ≤512 |
| MS Capacity per System | 100000 |
| BS Specificaition | ||
|---|---|---|
| Standard Compliance | PDT/DMR | |
| Frequency Range | UHF3：330-400MHz; UHF1：400-470MHz; UHF2：450-520MHz; UHF5：806-941MHz; VHF：136-174MHz | |
| Carrier Capacity | 1CH to 16CH(expandable to 48 at most) | |
| Power Supply | 110V AC / 220V AC;-48V DC | |
| Dimensions(H×W×D) mm | 42U:600 mm × 700 mm × 2000 mm; 29U:600 mm × 600 mm × 1430 mm | |
| Weight | 8-carrier (42U) ≤314 kg(fully configured); 4-carrier (29U) ≤165 kg(fully configured) | |
| Operating Temperature | -15℃～+35℃ | |
| Storage Temperature | -40℃～+85℃ | |
| IP Rating | IP20 | |
| Receiver | ||
|---|---|---|
| RX Sensitivity(Static) | -118 dBm@BER5% | |
| Transmitter | ||
|---|---|---|
| Adjust Power Range | 1 W～50 W | |
* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
