Specifications of DS-6211
- System Performance
- BS Specificaition
- Receiver
- Transmitter
| System Performance | |
|---|---|
| Subscriber Capacity per MSO | 10000 |
| Max. Number of Memberships | 1000000 |
| Max. Number of Interconnected MSOs | ≤128 |
| MS Capacity per BS | 500 |
| BS Specificaition | ||
|---|---|---|
| Standard Compliance | PDT/DMR | |
| Frequency Range | UHF1：400-470MHz;UHF2：450-520MHz;UHF3：330-400MHz;VHF：136-174MHz | |
| Carrier Capacity | 1-8 carriers（Maximum up to 24 carriers） | |
| Power Supply | DC 48V; AC 220V | |
| Clock Synchronization | GPS/PTP | |
| Operating Temperature | Extreme: –30 to +60°C; Normal: 15 to 35°C | |
| Storage Temperature | –40°C to +85°C | |
| Receiver | ||
|---|---|---|
| RX Sensitivity(Static) | -118dBm@BER≤5% | |
| Transmitter | ||
|---|---|---|
| Adjust Power Range | 5W - 100 W | |
* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
Videos

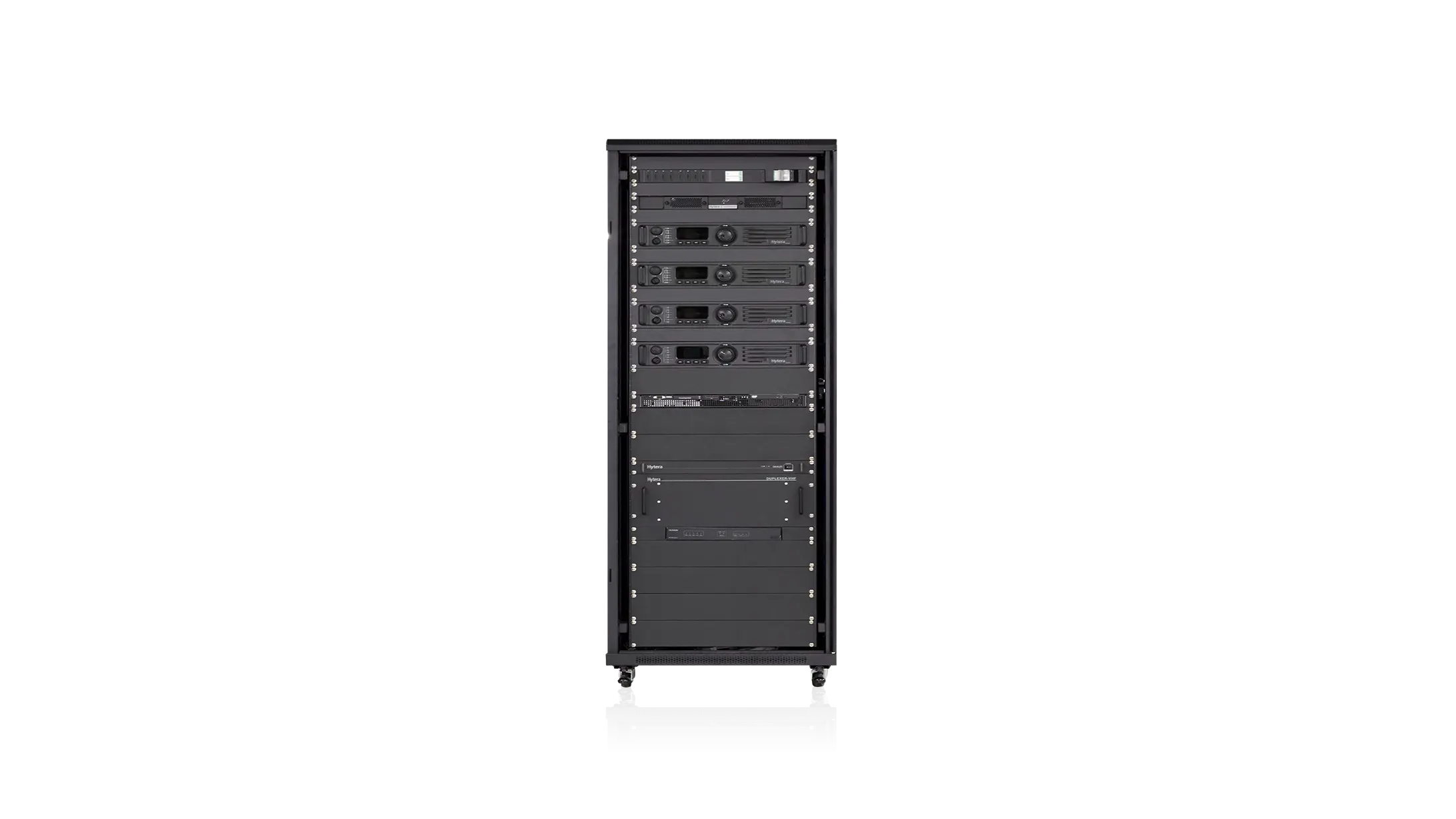

Hytera DMR Trunking Base Station
