Highlights of XPT
Cost-effective System
The conventional system can be upgraded to XPT system through software, protecting
the existing investments.
Large Capacity
Each XPT single-site system supports up to 8 voice repeaters and 8 data repeaters,
Each XPT single-site system supports up to 1200 radios and 245 groups for communication,
One XPT multi-sites system supports up to 16 single sites
Strong Fault-tolerant Capability
XPT system automatically detects failures and takes measures to minimize the influences,
ensuring proper repeater services in fault tolerance mode
No Control Channel
In contrast to the classic trunked radio, Hytera XPT system does not use any control
channels. All available radio channels are utilized for the communication.
Call Control
The XPT system adopts the "Request and Permit” mechanism to allocate channels. The
radio transmits or receives services only after the data handshake is successful.
This avoids call conflict and prevents interference from a radio with strong signal.
Advanced Load Balancing
The XPT system allocates different groups to different home repeaters, which minimizes
call conflicts on the same repeater and improves success rate of call setup.
Specifications of XPT
| MS Capacity per System | 1200 private call / 245 group call |
| Frequency Range | UHF1：400MHz～470MHz; VHF1：136MHz～174MHz; UHF3：350MHz～400MHz; VHF3：210 MHz～270 MHz; UHF5：806 MHz～941 MHz; UHF2：450MHz～527MHz | |
| Power Consumption | ≤180 W/carrier | |

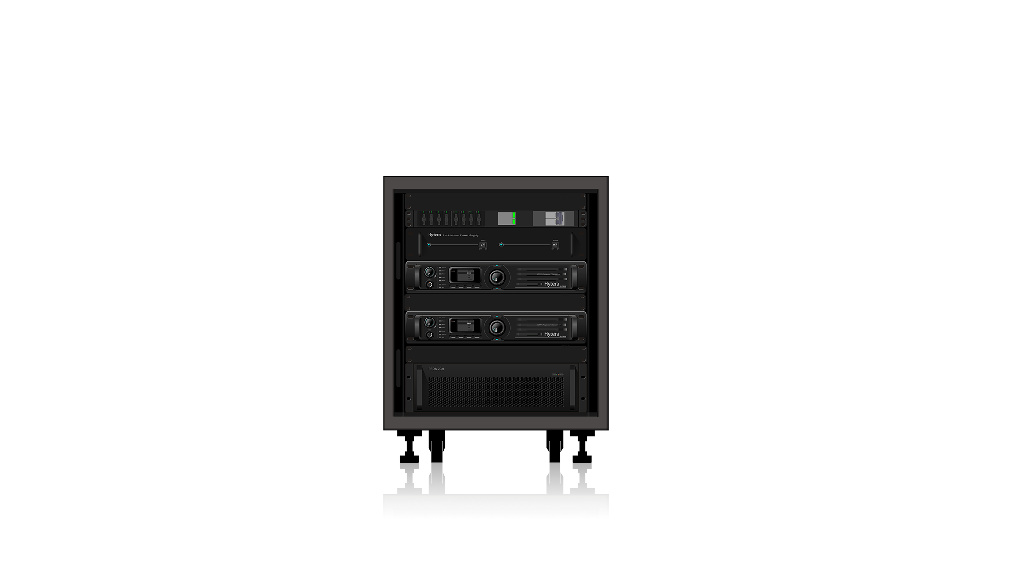

| Dimensions(H×W×D) mm | 4-carrier: 600 mm × 600 mm × 1750 mm（37U）; 8-carrier: 600 mm × 600 mm × 1750 mm（37U）; 2-carrier: 600 mm × 600 mm × 675 mm（13U） | |
| Weight | 8-carrier: ≤ 400 kg; 4-carrier: ≤ 200 kg; 2-carrier: ≤ 110 kg | |
| Operating Temperature | -30°C～+60°C | |
| Storage Temperature | -40°C～+85°C | |
| Relative Humidity | Base Station: 5% to 95%RH; MSO: 10% to 90%RH | |
| Working Altitude | ≤2000 m | |
| Mean Time to Repair(MTTR) | 30 minutes | |
| Mean Time Between Failures(MTBF) | 100,000 hours | |
| RX Sensitivity(Static) | -118 dBm@BER≤5% | |
| Max. Valid RX Level | -10 dBm（BER≤0.01%） | |
| TX Power | Repeater：≤50 W; Antenna connector：≤14 W | |
| Adjust Power Range | 5 W~50 W | |
