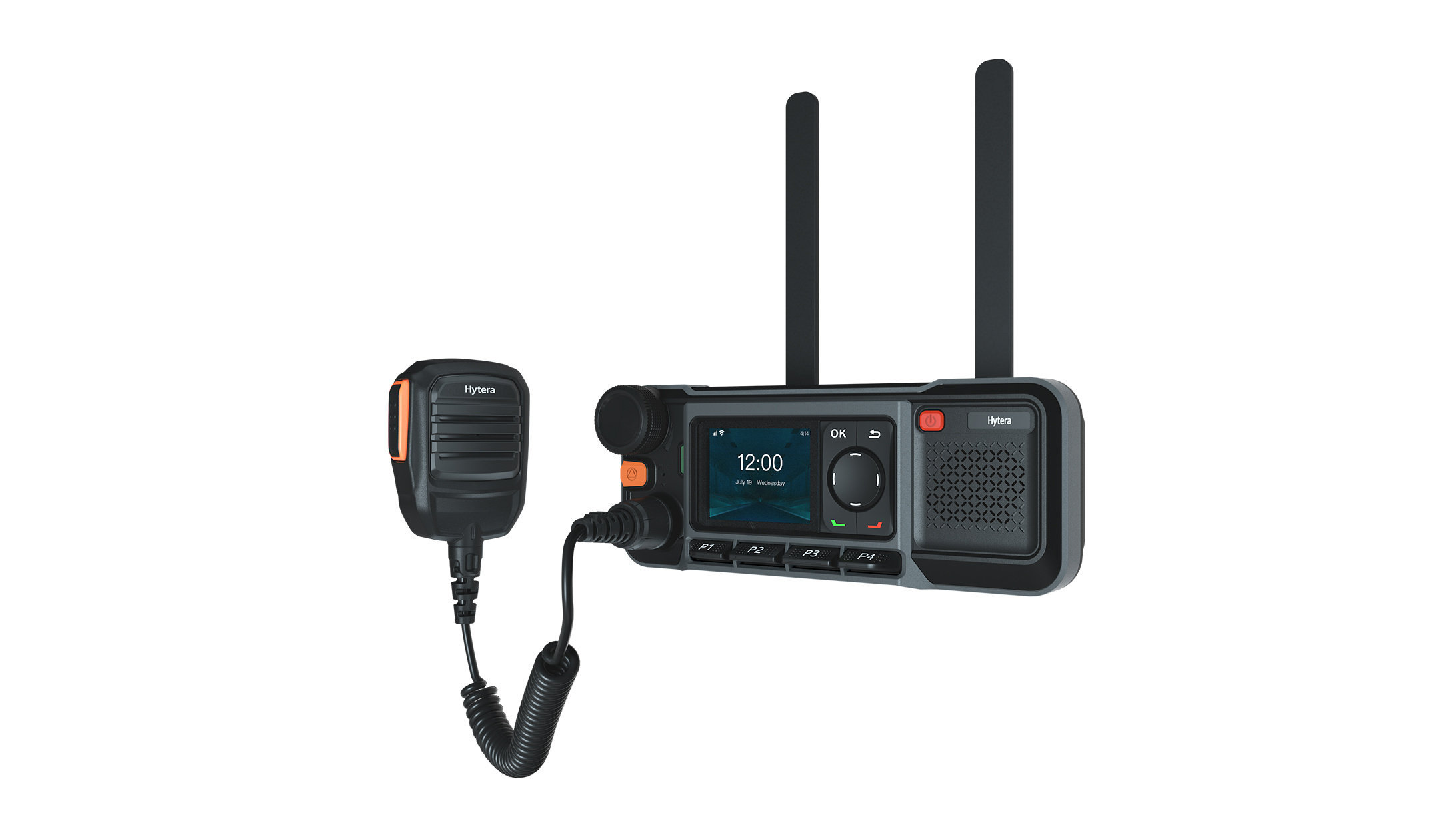

MNC360 Push-to-Talk over Cellular (PoC) Mobile Radio

MNC360

Mobile | LTE

The MNC360 is a push-to-talk over cellular (PoC) mobile radio designed for in-vehicle communication. With Hytera innovative design, it provides reliable, loud and clear voice service for various field communications scenarios. The simple-to-use design enables ease of radio installation, removal, and operation. Working as a professional business-ready PTT mobile radio, the MNC360 is the ideal communication device in the transportation industry.

Highlights of MNC360

Loud and Clear Audio

The built-in 4-watt speaker comes with distortion suppression, howling suppression and noise cancelling technology, which enables the MNC360 to transmit loud and clear audio even with the window rolled down in construction sites or bustling streets.

SMOOTHER COMMUNICATION

Compared with regular smartphones, the two external LTE antennas on the MNC360 improve its RX sensitivity by 3db, covering the weak signal area such as a suburb or underground parking lot. The smart switch enables the MNC360 to always select the network with better signal strengths. Stable, seamless, and high-quality communications are ensured everywhere.

FLEXIBILITY AND ADAPTABILITY

Paring with wired or wireless accessories, the MNC360 gives users more freedom and flexibility for voice communications. With the Android system and standard APIs, the MNC360 is open for third-party apps to create an in-vehicle ecosystem for data application in the field. The MNC360 is also highly customizable to extend the capabilities to fit specific needs.

SMART DESIGN, SAFE DRIVING

The MNC360 is a safety assistant providing over-speed alarm and fatigue driving alarm to ensure a safe trip. Keys on the MNC360 are automatically locked during driving, helping the driver focus more on the road and less on the radio. The External USB camera can be connected to the MNC360, working as a dash camera to record the driving journey.

Specifications of MNC360

  • Network
  • Hardware
  • Environment
  • Certification
Network
Frequency Band GSM: 850/900/1800/1900 WCDMA: B1/B2/B3/B4/B5/B8 TDD-LTE: B38/B39/B40/B41 (2496–2690 MHz); FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28
Hardware
Operating System Android 7.1
Memory 1GB Ram + 8GB ROM
TF Card 128GB (Max)
Dimensions (H x W x D) 170mm x 66mm x 39.3mm
Weight 300g
Display Screen Size 2.0 Inches
Display Resolution 320x240mm
Sim Card 2x Micro-Sim
Positioning GPS/BDS/GLONASS/Galileo/A-GPS
WLAN 2.4 GHz, 802.11 b/g/n
BT BT 4.2
NFC Optional
External Interfaces Micro-USB 2.0 (OTG) 3.5 mm audio jack Two LTE Antenna Ports 2-pin external speaker port GPS antenna connector Power inlet 10-pin aviation port
Input Voltage 13.6 ±15% V DC
Speaker 4W Built in (8W External)
Environment
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 85°C
ESD IEC 61000-4-2, (ESD) 12kV (air); 8kV (contact)
Ingress Protection IP54
Certification
Certificate FCC/IC/CE
