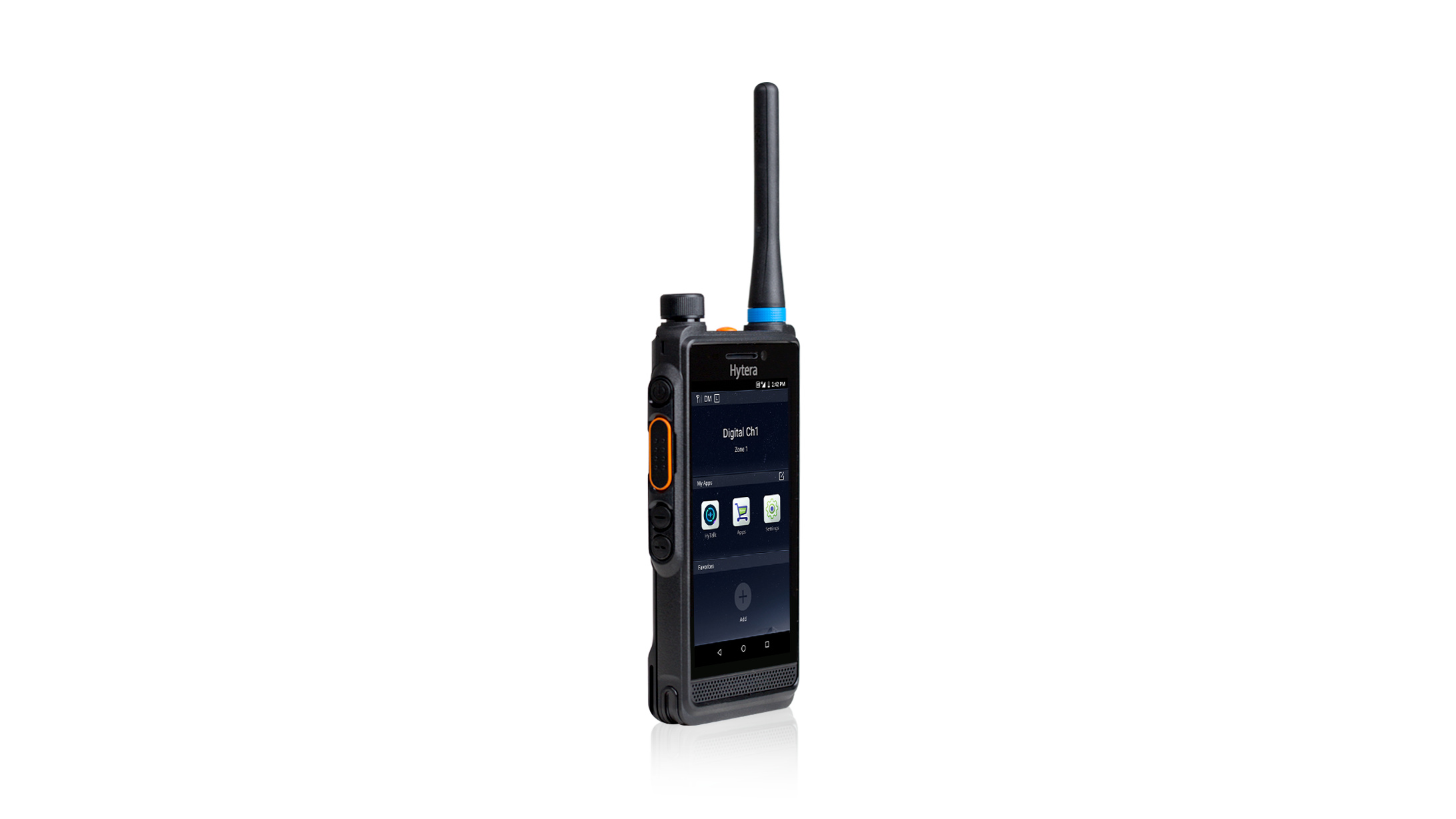

PDC550 is a smart PoC radio which enables the collaboration of multiple communication modes

Handheld | LTE-PMR | GPS

The PDC550 is a smart PoC radio which enables the collaboration of multiple communication modes including broadband and narrowband networks as well as public and private networks in various scenarios. Now available in UHF and VHF variants.

Highlights of PDC550

BROADBAND AND NARROWBAND CONVERGENCE

Enables the collaboration of multiple communication modes including broadband and narrowband networks as well as public and private networks in multiple scenarios.

OPEN PLATFORM PROVIDING INFINITIES

Multiple applications can run on it. Open API allows third party developing customized applications.

FRIENDLY DESIGN

5-inch industrial-grade HD touch screen adopts the third-generation glass of Corning Gorilla Glass.

RUGGED AND COMPACT DESIGN

With exquisite structural technology, IP68, military standard(MIL-STS-810G) and 1.2m drop-proof-design.

LOUD AND CLEAR VOICE QUALITY

Built-in 1W(up to 2.5W)speaker provides loud and clear audio quality for versatile voice service.

MULTIPLE PROTECTION MECHANISMS ENSURING SECURITY

Communication security: The TF card slot design is used for communication and hardware encryption. Application security: The radio uses professional MDM management software that can remotely control 100% terminal applications. All applications must complete signature authentication before uploaded to MDM, to eliminate malicious codes.

Specifications of PDC550

Standards and Frequencies
General data
Receiver
Support Audio and Video
Environmental Specs
Certification

Standards and Frequencies
Narrow Band	DMR: UHF:400-470MHz; VHF:136-174MHz
LTE	TDD-LTE:B38/B39/B40/B41; FDD-LTE:B1/B3/B5/B7/B8/B20/B26/B27/B28
CDMA	BC0
WCDMA	B1/B3/B5/B8
TD-SCDMA	Europe&Asia-Pacific&Africa&South Korea:B34/B39
GSM	850/900/1800/1900MHz
WLAN	2.4GHz,802.11 b/g/n
NFC	Available(payment is not supported)
BT	BT 4.1(shared for broadband and narrowband networks)
Positioning	GPS/AGPS/GLONASS/Galileo/BeiDou(shared for broadband and narrowband networks)

General data
Dimensions(H×W×D) mm	155x 75x 21.5mm
Weight	375g(induding battery,antenna,and back clip)
Operating System	Android 8.1
Memory	Memory(Broad Band):3GB RAM+32GB ROM,expandable memory(maximum 128GB); Memory(Narrow Band):Expandable to 128GB with Micro SD card
Sensors	Gravity sensor,compass,distance sensor,optical sensor
Peripheral Interface	Hytera dedicated 13-pin interface,Charging interface for charger,Antenna interfacr(SMA interface,shared with Td5)
Display	5.0-inch HD touch screen,1280x720 resolution
Card Slots	3,2Nano SIM card slot,1Micro SD card slot
Camera	Rear 13 mega-pixel camera+front 5 mega-pixel camera
Operating Voltage	7.4V(Rated)

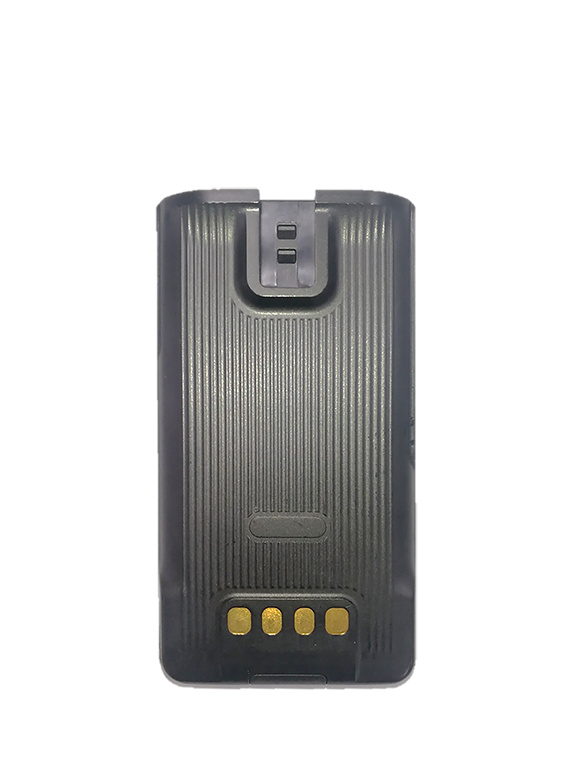

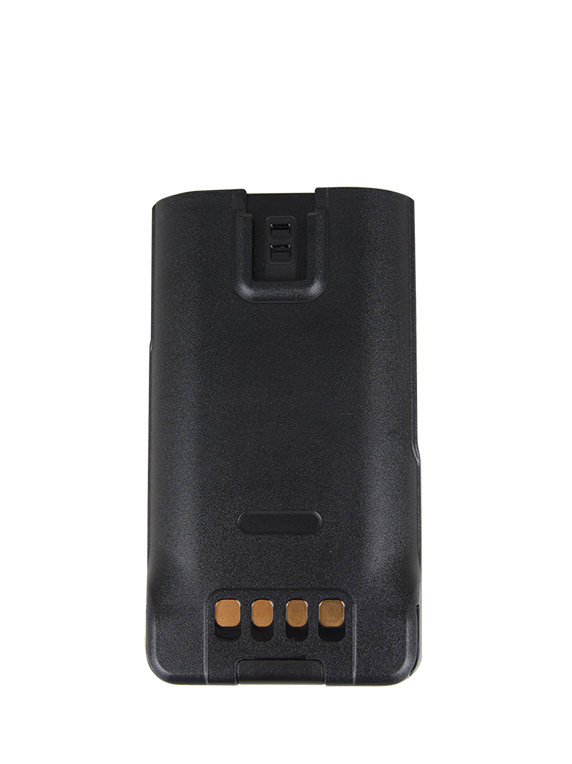

Battery	Standard 2400 mAh/Optional 3500mAh,7.4V
Charging Time	2400mAh; DMR mode:＞12hours(5-5-90 duty cycle); PoC mode:about 8-9 hours(10/10/80)&24 hours(standby)

Receiver
Channel Spacing	25/12.5kHz
TX Power	UHF:1W/4W; VHF:1W/5W
RX Sensitivity	Analog typical value:＜0.28uv; Digital typical value:-110dBm/BER1%; Analog limit value:＜0.22uv; Digital limit value:-116dBm/BER1%
Intermodulation	ETS＞65dB; TIA603C＞70dB
Blocking	＞84dB
Spurious Response Rejection	TIA603C＞70dB; ETS＞70dB
Adjacent Channel Selectivity	25KHz/TIA603C＞70dB; 25KHz/ETS＞70dB; 12.5KHz/TIA603C＞60dB; 12.5KHz/ETS＞60dB
Frequency Stability	±0.5ppm
Audio Power Output	2.5W
Audio Distortion	≤3%

Support Audio and Video
Video File Types	MP4,3GP
Video Encoding Technology	VP8,H.264(BP/MP/HP),MPEG-4(SP/ASP),H.263(HEVC）
Image File Types	JPG,GIF,BMP,PNG
Video Resolutions and Frames Per Second	1080P,30fps

Environmental Specs
Operating Temperature	-20℃ ~ +60℃
Storage Temperature	-30℃~ +70℃
ESD	IEC 61000-4-2(Level 4); ±12kV(air discharge); ±8kV(contact discharge)
Dust & Water Protection	IP68
Vibration,Drop&Shock	1.2m
