Highlights of PNC380
STAY CONNECTED, STAY INFORMED
Leveraging the broad coverage of 2G, 3G, 4G, and Wi-Fi networks of various carriers,
the PNC380 delivers seamless communications across your country. Talk to groups or
individuals instantly at a push of the PTT button, or make a telephone call with the
full keypad at your will.
4G LIVE VIDEO
Equipped with a 5 MP rear camera, the radio allows you to feed the on-site videos
to the dispatcher or supervisor in real time over 4G network, improving situational
awareness and facilitating decision-making.
POSITIONING
The PNC380 provides positioning services by using GPS, GLONASS, and BDS in combination,
together with the assisted GPS technology.
IP67 AND MIL-STD-810G
Certified with IP67 rating, the radio is fully protected from dust and is water-proof
up to 1 meter for 30 minutes. The radio also meets the MIL-STD-810G standard to withstand
1.5-meter drop.
4,000 MAH—LASTS ALL DAY LONG
The 4,000 mAh Li-ion battery offers over 24 hours of talk and standby time on a 5-5-90
duty cycle, and can be charged through the radio's Micro USB port.
ENHANCED ERGONOMIC DESIGN
Compact and ergonomic design, paired with the deliberate side key layout, makes the
one-hand operation easy and comfortable. The anti-slip textured case ensures firm
grip even in moist conditions.
LOUD AND CLEAR AUDIO
Adopting the dual-mic noise reduction technology, the radio always picks up the right
voice from noisy background. The advanced acoustics design substantially elevates
sound loudness and sharpness.
DEDICATED EMERGENCY BUTTON
An orange emergency button on the top of the radio helps you send an emergency call
to a dispatcher or supervisor in case of an emergency.
Camera(Pro)
Equipped with a 5 MP rear camera, the radio allows you to feed the on-site videos.

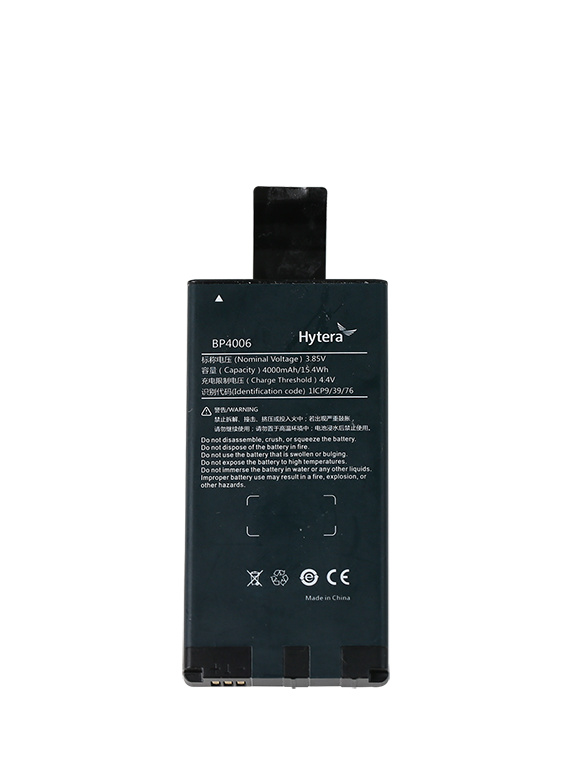

Battery
The 4000 mAh Li-ion battery offers over 24 hours of talk and standby time on a 5-5-90 duty cycle.
Emergency Button
It can help you send an emergency call to a dispatcher or supervisor in case of an emergency.
Full Keypad
The full keypad makes input easy on the radio.
Specifications of PNC380
- Data Information
- General Information
- Image Type
- Audio Information
- Environmental Specs
- Certification
| Data Information | |
|---|---|
| LTE | Asia,Europe,Middle East and Africa: TDD-LTE: B38/B39/B40/B41; FDD-LTE: B1/B3/B5/B7/B8/B18/B19/B20/B26/B27/B28; American: TDD-LTE: B38/B41; FDD-LTE: B2/B3/B4/B5/B7/B12/B13/B17/B26/B28; |
| CDMA | Asia,Europe,Middle East and Africa:BC0 |
| WCDMA | Asia,Europe,Middle East and Africa:B1/B3/B5/B8; American:B2/B4/B5 |
| TD-SCDMA | Asia,Europe,Middle East and Africa:B34/B39 |
| GSM | Asia,Europe,Middle East and Africa:850/900/1800/1900; American:850/900/1800/1900 |
| WLAN | 2.4GHz and 5GHz |
| NFC | PNC380 Pro：Supported(optional) |
| BT | BT 4.1 |
| Positioning | GPS/GLONASS/BDS/AGPS |
| General Information | ||
|---|---|---|
| Dimensions(H×W×D) mm | 145.1x 60 X 26.1mm | |
| Weight | 208g(with battery and antenna) | |
| Operating System | Android 7.1 | |
| Memory | RAM：1GB,ROM：8GB, Micro SD/TF card:Maximum 32G | |
| Peripheral Interface | Micro USB 2.0(5V/2A); 3.5 mm audio jack | |
| Display | 2.0〃320*240 | |
| Card Slots | 1 Nano SIM card slot and 1 Micro SD card slot | |
| Camera | 5 MP rear camera; Video recording：720 P (1280x720) 30 FPS; Flash：Supported | |
| Operating Voltage | 3.85V | |
| Battery | 4000 mAh | |
| Image Type | ||
|---|---|---|
| Image File Types | JEPG (.jpg), PNG (.png) | |
| Audio Information | ||
|---|---|---|
| Input | Microphone:2 ; Dual Mic Noise Reduction: Support | |
| Output | 32 mm, circular, rated power: 1 W | |
| File Types | MPEG (.m4a),3GPP（.3gp) | |
| Environmental Specs | ||
|---|---|---|
| ESD | IEC 61000-4-2（level 3） | |
| Dust & Water Protection | IP67 | |
| Humidity | MIL-STD-810 G | |
| Vibration,Drop&Shock | MIL-STD-810 G | |
| Certification | ||
|---|---|---|
| Certification | CE/MIL-STD-810 G/FCC/IC | |
Standard Accessories of PNC380
Optional Accessories of PNC380
