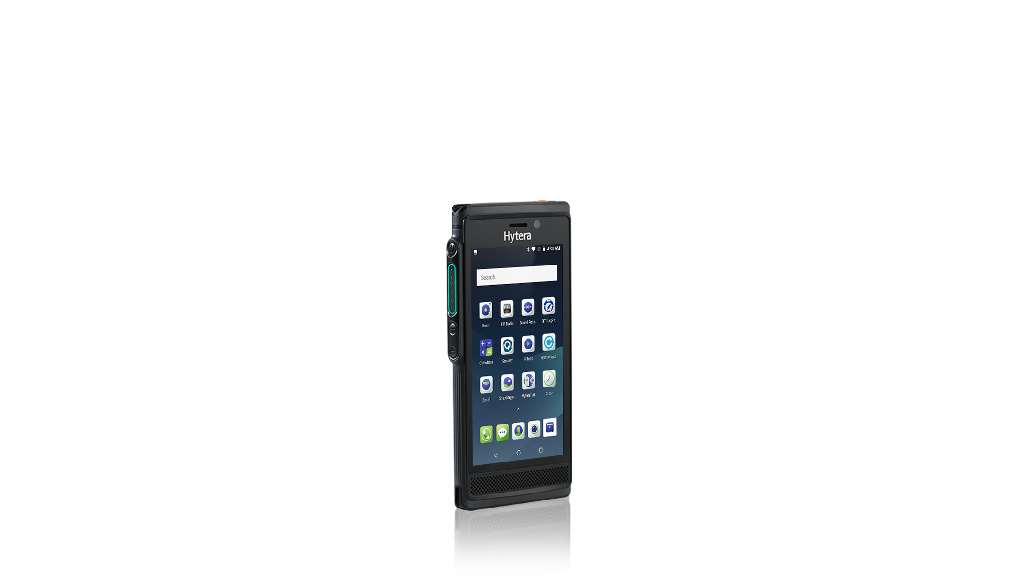

PNC550 Integrating smartphone and professional Push-to-Talk over cellular functionality

PNC550

Handheld | LTE

The PNC550 is a smart PoC terminal, integrating smart phone and professional Push-to-talk over cellular functionality. Hytera's PNC550, is equipped with Android 8.1 operating system, 5-inch multi-touch screen, high definition camera and 2W high fidelity speaker; not only does this product meet the basic needs of voice intercom for industry users, but also delivers the requirements for multimedia usage. PNC550 is compatible with a range of PoC solution platforms on the market and can be adapted to individual needs of the customer.

Highlights of PNC550

UNIFIED MANAGEMENT PLATFORM

Smart MDM provides unified management of PNC550. It supports firmware upgrade, AAP push and installation remotely, and also allows management of authority for users. SmartMDM supports authentication and data encryption.

POC SOLUTION

PNC550 can implement versatile voice, video and data services over the public network. The dedicated PTT design make it easy to initiate instant call anytime and anywhere.

5-INCH HD MULTI-TOUCH DISPLAY

5-inch multi-touch Gorilla Glass display with 1080 x 720 WVGA resolution can be used outdoors in direct sunlight.

NFC FUNCTION

The built-in NFC module provides NFC related functions such as information query, authentication, identification, inspection etc.

INCLUSIVE SYSTEM

Integrated with the Android 8.1 system, PNC550 provides higher compatibility and security performance. It can support multiple applications. Open API and SDK allow third party development of customised applications.

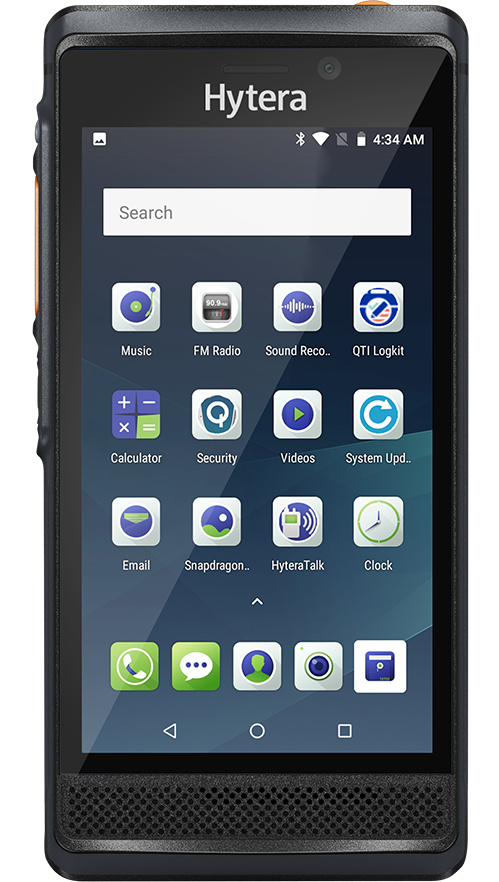

hytera image
5-inch HD Display

5-inch multi-touch display with 1280x720 resolution, adopting Gorilla Glass.

High Capacity Battery

The 4000 mAh removable battery can stand up to long work hours.

HD Camera

The PNC550 is equipped with 13 MP rear camera and 8 MP front camera.

Speaker

The built-in 2 W (max. 3 W) speaker delivers loud and clear audio.

Specifications of PNC550

  • Standards and Frequencies
  • General data
  • Support Audio and Video
  • Environmental Specs
  • Certification
Standards and Frequencies
LTE Europe&Asia-Pacific&South Korea: FDD-LTE:B1/B3/B5/B7/B8/B20/B26/B27/B28; TDD-LTE:B38; America: FDD-LTE:B2/B3/B4/B5/B7/B12/B13/B17/B26/B28; TDD-LTE:B34/B38/B39/B40/B41
CDMA Europe&Asia-Pacific&South Korea: BC0
WCDMA B1/B3/B5/B8; B2/B4/B5; America: Europe&Asia-Pacific&South Korea:
TD-SCDMA B34/B39; Europe&Asia-Pacific&South Korea:
GSM 850/900/1800/1900MHZ
WLAN 2.4GHz,802.11 b/g/n
NFC Support
BT BT 4.2
Positioning GPS(AGPS)/Beidou/Glonass/Galileo/Network
General data
Dimensions(H×W×D) mm 156.5x 76 x 14mm
Weight <250g(With Standard Battery)
Operating System Android 9.0
Memory 3GB RAM + 32GB ROM / 4GB RAM + 64GB ROM Expandable to 128GB with Micro SD card
Sensors Gravity/Compass/Proximity/Light/Gyro
Peripheral Interface 3.5mm common audio interface; USB 2.0(Type C)charger interface
Display 5.0-inch HD Screen, 1280*720
Card Slots Three card slots,2×Nano-SIM,1×Micro SD
Camera 13MP AF 8MP FF
Operating Voltage 3.7V(Rated)
Battery 4000mAh Li-ion
Support Audio and Video
Video File Types Mp4、3GP
Video Encoding Technology VP8、H.264(BP/MP/HP)、MPEG-4(SP/ASP)、H.263(HEVC)
Image File Types JPG、PNG、GIF、BMP
Video Resolutions and Frames Per Second 1080P@30fps
Environmental Specs
Operating Temperature -20℃~+60℃
Storage Temperature -30℃~+70℃
ESD ±12kv(Air); IEC 61000-4-2(Level 4); ±8kv(Contact)
Dust & Water Protection IP68
Vibration,Drop&Shock 1.2m
Certification
Certification CE/MIL-STD-810 G/FCC
