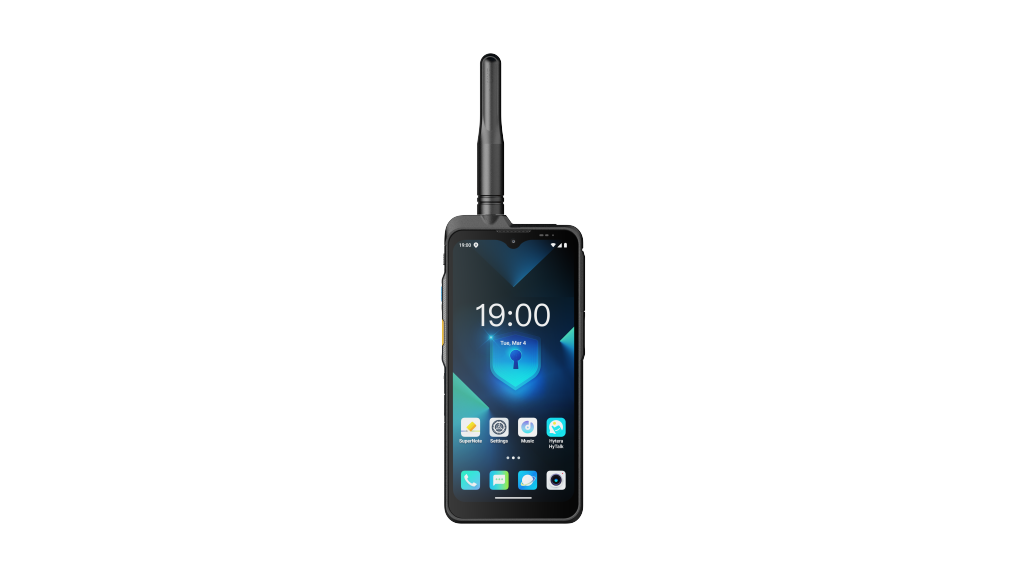

PNC660 450MHz MCX Smart Device

PNC660 450MHz

Handheld | LTE | GPS

The PNC660 450MHz features advanced hardware and top-tier security tech for reliable 5G communication, equipped with a CC EAL5+ compliant security chip and comprehensive protection mechanism. Compliant with the 3GPP R15 standard, the PNC660 450MHz delivers high reliability for critical missions. Its intuitive design, integrated with industry applications, enhances efficiency and usability.

Specifications of PNC660 450MHz

  • Frequency Band
  • Hardware
  • Environment
  • Certification
Frequency Band
2G 850/900/1800/1900
WCDMA B1/B2/B4/B5/B8
LTE LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B26/B28(Full Band)/B66/B68/B71 LTE-TDD: B34/B38/B39/B40/B41(2496~2690MHz) /B42/B43/B48
NR N1/N2/N3/N5/N7/N8/N12/N20/N28/N38/N40/N41/N48/N66/N71/N77/N78/N79
HPUE B41/B42/N41/N78/N79
4×4 MIMO N41/N77/N78/N79
NR 2T4R N41/N77/N78/N79
450MHz B31/B72
Notes RF Uses PAMID Solution; EN-DC and CA Combinations Defined in Sheets "EN-DC Combination Requirements" and "CA Combination Requirements"
Hardware
Operating System Android 14+
CPU 6nm, Octa-core(1×2.7GHz, 3×2.4GHz,4×1.9GHz)
Al Performance ~13 TOPS
Memory RAM: 8GB, ROM:128GB/256GB
Dimensions(H×W×D) mm 166.6mm x 77.6mm x 14.3mm (without external antenna)
Weight 290g
Screen Size 6.3-inch FHD 1080x2340 Corning Gorilla Glass 5
Cameras Front: 13 MP, Rear: 50 MP and 8 MP
Flashlight Available
Battery 5,000 mAh
Charging USB Type-C Fast Charge (33W)
Card Slot Nano-SIM Card * 2, Supports eSIM, TF Card * 1
Motor Available
Speaker 3W
WLAN Supports 802.11 a/b/g/n/ac/ax, 2.4GHz+5GHz+6GHz
Sensor Fingerprint Recognition Reader, Gravity Accelerometer, Gyroscope, Magnetometer, Proximity Sensor, Ambient Light Sensor, Barometer
Positioning GPS Dual-Frequency/GALILEO/A-GPS
NFC Available
Video Resolution Encode 4K 30fps, Decode 4K 60fps
Interfaces Bottom USB Type-C 3.1 Gen2 & Side USB Type-C Port, Supports DP1.4
Front Indicator Light Available (one light with red, green, and blue colors)
Environment
Operating Temperature -20°C to +60°C
Storage Temperature -30°C to +70°C
Environmental Compliance RoHS/REACH
ESD IEC 61000-4-2, ±12 kV (Air); ±8 kV (Contact)
Ingress Protection IP68
Drop-proof 1.5m
Certification
Certification CE/GMS/IP68/MIL-STD 810H /E112 /common charging/EN18031

* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
