IPN

IPN

Repeaters Systems | TETRA | GPS

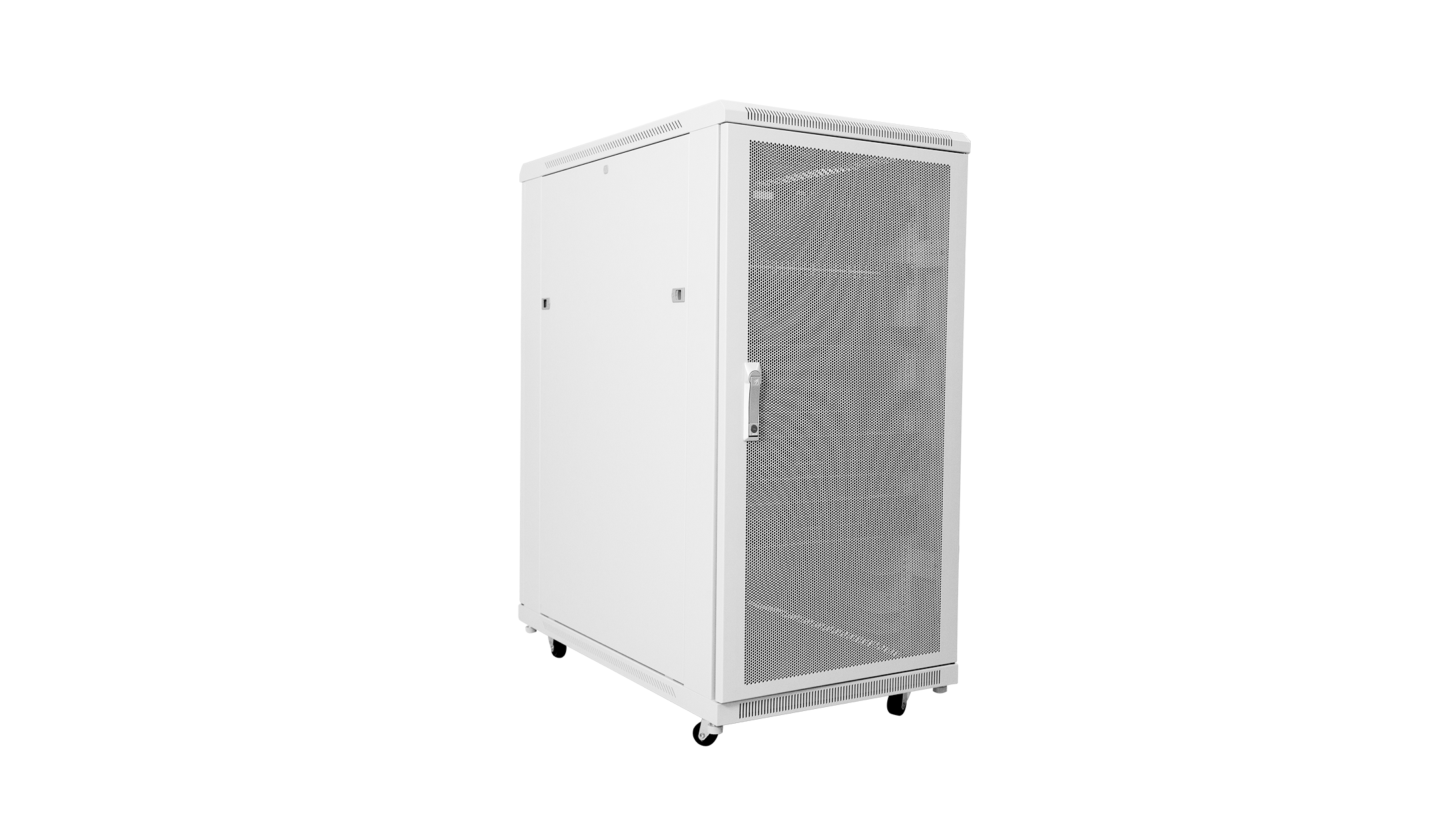

The IP Node (IPN) is the switch center in Hytera TETRA network, apart from the Switching Controller Function(SCF). The IP Node consists of standard 19-inch cabinet, carrier-class server, and other supporting hardware. The characteristics of pure software architecture and modular design endow the IPN with excellent performance. The system features powerful functions, stable and reliable operation, good scalability, and can be flexibly configured according to the network scale.

Specifications of IPN
Power Supply 100 ~ 240 VAC
Power Consumption 600W per Server
Switching Capability Max. 480 carriers  /Max. 120 BS per  IPN Server
PABX/PSTN Concurrent Calls Max. 30 per IPN Server
Dispatcher Concurrent Calls Max. 80 per IPN Server
Cabinet Size(W×H×D)mm 600mm x 900mm x 900mm
Cabinet Weight Max.140 kg
Operating Temperature +10℃ - +35℃

* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
