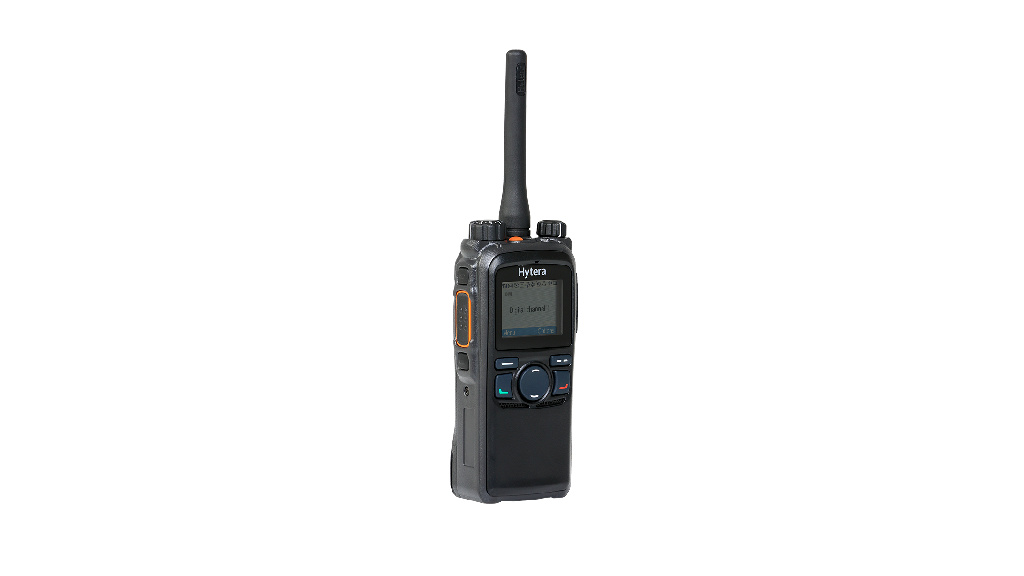

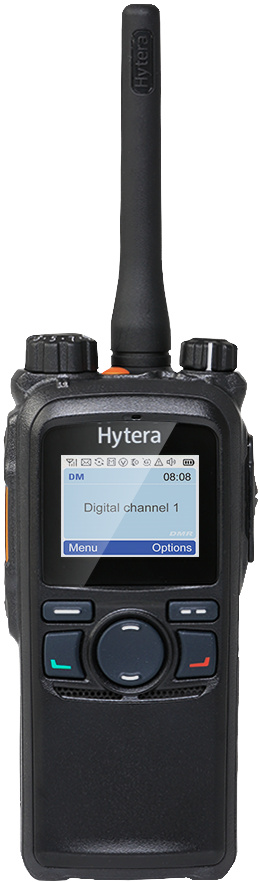

PD755 Versatile, professional digital two-way radio

Handheld | DMR

A popular all-rounder, the Hytera PD755 handheld digital two-way radio with half keypad and screen offers a vast array of functionality, with remarkable build quality, enabling reliable and secure communications in any situation. Request the PD755(G) variant for GPS and Man Down. For pricing and availability, use the link below to find and contact your local dealer.

Highlights of PD755

PSEUDO TRUNKING

Using pseudo-trunking, a Hytera patented technology, slots can be shared to improve capacity usage with transmissions either direct to handset or to repeater.

XPT

Hytera XPT (Extended Pseudo Trunking) enables you to use limited spectrum resources more efficiently, dynamically assigning channel resource without needing a dedicated control channel.

EMERGENCY MODE

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm. Also receive emergency notifications.

LONE WORKER

The lone worker feature uses a timer in the radio to measure inactivity. If the timer expires, a warning is issued, and if there is no response to that, the alarm is triggered.

GPS

Optional (PD755G only), enabling location based services to improve safety and control.

BLUETOOTH AUDIO

Optional (external adapter accessory), wireless connectivity to audio devices to improve user experience.

MAN DOWN

Optional (PD755G only), the man down feature will let you know if the radio has been tilted past a certain angle. This may happen for instance if the radio user has fallen over or is unconscious or injured. The alarm will be triggered after a warning is issued to the user.

Effective Communication

Making better use of the channel capacity with Hytera Dual-Slot Pseudo Trunking and compatible with XPT and DMR Tier III (licenced)

Rugged and Reliable

Dust and waterproof, rated IP67, sustaining performance in harsh environments

GPS Location

Available as an optional extra, GPS for tracking and positioning also includes man down feature

Simple Intelligent Design

Easy to grab and communicate instantly, with a large push-to-talk (PTT), programmable emergency button and keys to initiate comms

Safer Workforce

Emergency button, priority interrupt and lone worker features are provided as standard

Specifications of PD755

General data
Receiver
Transmitter
Environmental Specs
Location Service

General data
Frequency Range	UHF1: 400-470 MHz; UHF2: 450-520 MHz; VHF1:136-174 MHz
Channel Capacity	1024
Zone Capacity	64
Operating Voltage	7.4 V(rated)
Battery	2000 mAh(Li-Ion)（standard）; 2500 mAh(Li-Ion)（optional）
Battey Life(5/5/90 Duty Cycle,High TX Power)	2000 mAh(Li-Ion); Analog:UHF1/UHF2:13 h/12 h(G); VHF1:12 h/11 h(G)); Digital:UHF1/UHF2:16.5 h/14 h(G); VHF1:15.5 h/13.5 h(G)
Dimensions(H×W×D) mm	125 mm × 55 mm × 37 mm
Weight	485 g
Display	160×128 pixel ，65536 colors，1.8 inch，6 rows

Receiver
Sensitivity(Analog)	0.22 μV(Typical)(12 dB SINAD); 0.28 μV(12 dB SINAD); 0.4 μV(20 dB SINAD);
Rated Audio Power Output	0.5 W

Transmitter
RF Power Output	UHF1/UHF2:1 W/4 W; VHF1:1 W/5 W
Digital Vocoder Type	AMBE+2™ or SELP

Environmental Specs
Operating Temperature	-30 ℃～+55 ℃
Storage Temperature	-40 ℃～+85 ℃
ESD	IEC 61000-4-2（level 4） ±8 kV（Contact） ±15 kV（Air）
Dust & Water Protection	IP67
Humidity	MIL-STD-810 C/D/E/F/G
Vibration,Drop&Shock	MIL-STD-810 C/D/E/F/G

Location Service
Horizontal Position Accuracy	<10 m
Cold Start (Time to First Fix)	<1 min
Hot Start (Time to First Fix)	<10 s
Note	Accuracy specs are for long-term tracking(95th percentile values>5 satellites visible at a nominal -130 dBm signal strength)
