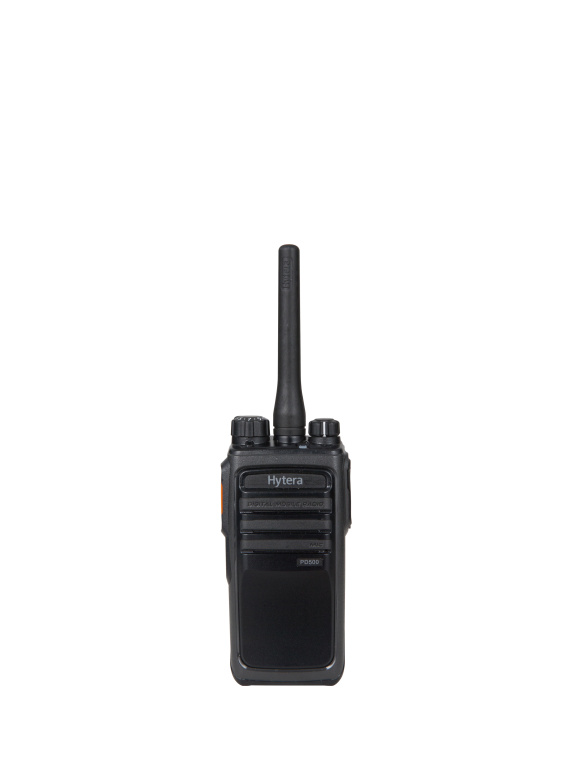

PD565 Lightweight, robust digital two-way radio

Handheld | DMR

Packed with functionality, the Hytera PD565 handheld digital two-way radio impresses with its safety features and flexibility to support for both digital and analogue communications, ideal for manufacturing, events and hospitality environments.

Highlights of PD565

QUICK TEXT MESSAGES

Pre-programmed via the Customer Programming Software and stored in the quick text menu ready to send to contacts.

RADIO CHECK

Allows other radio users to check if a radio is available.

STUN / UNSTUN

You can disable/enable the radio remotely, ideal if a device is lost, stolen or being misused.

ROAMING

This feature allows the radio to switch between sites on Multi-site Conventional and XPT systems, ensuring seamless communication.

RRS

Radio Register Service, allowing a dispatching application to see when a radio is switched on or switched off.

EMERGENCY MODE

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm. Also receive emergency notifications.

PSEUDO TRUNKING

Using pseudo-trunking, a Hytera patented technology, slots can be shared to improve capacity usage with transmissions either direct to handset or to repeater.

XPT

Hytera XPT (Extended Pseudo Trunking) enables you to use limited spectrum resources more efficiently, dynamically assigning channel resource without needing a dedicated control channel.

Specifications of PD565

General data
Environmental Specs

General data
Frequency Range	UHF1:400-470MHz; UHF3:350-400MHz; VHF:136-174MHz
Channel Capacity	512
Zone Capacity	32
Operating Voltage	7.4V(rated)
Battery	1500mAh (Li-ion); 2000mAh (Li-ion)
Battey Life(5/5/90 Duty Cycle,High TX Power)	Analog/Digital: 10hours/14hours (1500mAh); 14hours/19hours (2000mAh);
Dimensions(H×W×D) mm	115mm×54mm× 30mm(1500mAh)
Weight	280g(1500mAh)
