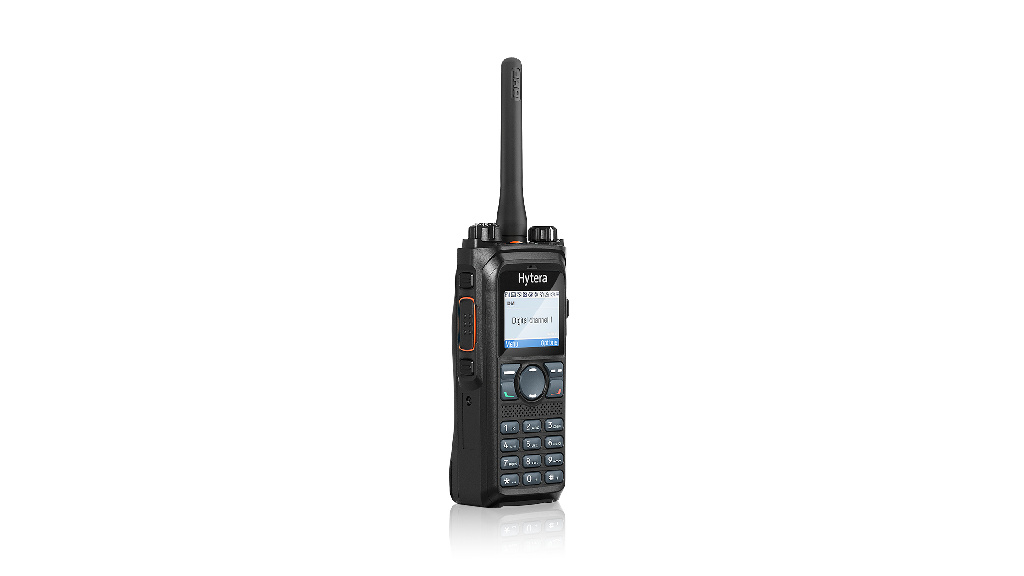

PD985 Feature-rich digital two-way radio

Handheld | DMR

Professional and versatile, the Hytera PD985 is the ultimate handheld digital two-way radio. Offering a range of advanced features and an exceptional audio experience, the PD985 can be utilised in all manner of working environments, playing an integral role in your communication network.

Highlights of PD985

BLUETOOTH AUDIO

Bluetooth 4.0 for wireless connectivity to audio devices to improve user experience.

PSEUDO TRUNKING

Using pseudo-trunking, a Hytera patented technology, slots can be shared to improve capacity usage with transmissions either direct to handset or to repeater.

XPT

Hytera XPT (Extended Pseudo Trunking) enables you to use limited spectrum resources more efficiently, dynamically assigning channel resource without needing a dedicated control channel.

FULL DUPLEX CALLS

Have a conversation on a call rather than a classic one-way transmission (DMR Tier III mode only)

VOICE RECORDING

Record your transmission and call data for future analysis. Requires micro SD card and separate application for playback, chargeable licence.

SINGLE FREQUENCY REPEATER

Utilise your PD985 radio as a repeater to improve coverage across your site (chargeable licence)

MAN DOWN

Optional (PD985G only), the man down feature will let you know if the radio has been tilted past a certain angle. This may happen for instance if the radio user has fallen over or is unconscious or injured. The alarm will be triggered after a warning is issued to the user.

LONE WORKER

The lone worker feature uses a timer in the radio to measure inactivity. If the timer expires, a warning is issued, and if there is no response to that, the alarm is triggered.

EMERGENCY MODE

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm. Also receive emergency notifications.

GPS

Optional (PD985G only), enabling location based services to improve safety and control.

Specifications of PD985

General data
Receiver
Transmitter
Environmental Specs
Location Service

General data
Frequency Range	UHFx:350-527 MHz; UHF5:806-941 MHz; VHF1:136-174 MHz
Channel Capacity	1024
Zone Capacity	64 (maximum of 256 channels per zone)
Channel Spacing	12.5 kHz/20 kHz/25 kHz
Operating Voltage	7.4 V(rated)
Battery	2000 mAh (Li-Ion);2500 mAh (Li-Ion)
Battey Life(5/5/90 Duty Cycle,High TX Power)	14.5 hours/19.5 hours (2000 mAh); 18 hours/24 hours (2500 mAh); Analog/Digital:
Frequency Stability	±0.5 ppm
Antenna Impedance	50 Ω
Dimensions(H×W×D) mm	131 mm × 54.5 mm × 36 mm（2000 mAh）;131 mm × 54.5 mm × 41 mm（2500 mAh）
Weight	350 g (2000 mAh);361 g (2500 mAh)
Display	LCD Display:160×128 pixel，65536 colours，1.8 inch，6 rows

Receiver
Sensitivity(Analog)	0.22 μV(typical)(12 dB SIN AD); 0.28 μV(12 dB SIN AD); 0.4 μV(20 dB SIN AD);
Sensitivity(Digital)	0.22 μV/BER 5%
Rated Audio Power Output	0.5 W

Transmitter
RF Power Output	UHF1/UHF3: 1 W/4 W; VHF1: 1 W/5 W; UHF5: 1 W/2.5 W
Digital Vocoder Type	AMBE+2™/SELP

Environmental Specs
Operating Temperature	-30 ℃～+60 ℃
Storage Temperature	-40 ℃～+85 ℃
ESD	IEC 61000-4-2（level 4）; ±15 kV（Air）; ±8 kV（Contact）
Dust & Water Protection	IP68
Humidity	Per MIL-STD-810 C/D/E/F/G Standard
Vibration,Drop&Shock	Per MIL-STD-810 C/D/E/F/G Standard

Location Service
Horizontal Position Accuracy	<10 m (95% probable); <5 m (50% probable)
Cold Start (Time to First Fix)	<1 minute
Hot Start (Time to First Fix)	<10 seconds
Note	Accuracy Specs are for long-term tracking(95th percentile values>5 satellites visible at a nominal -130 dBm signal strength)
