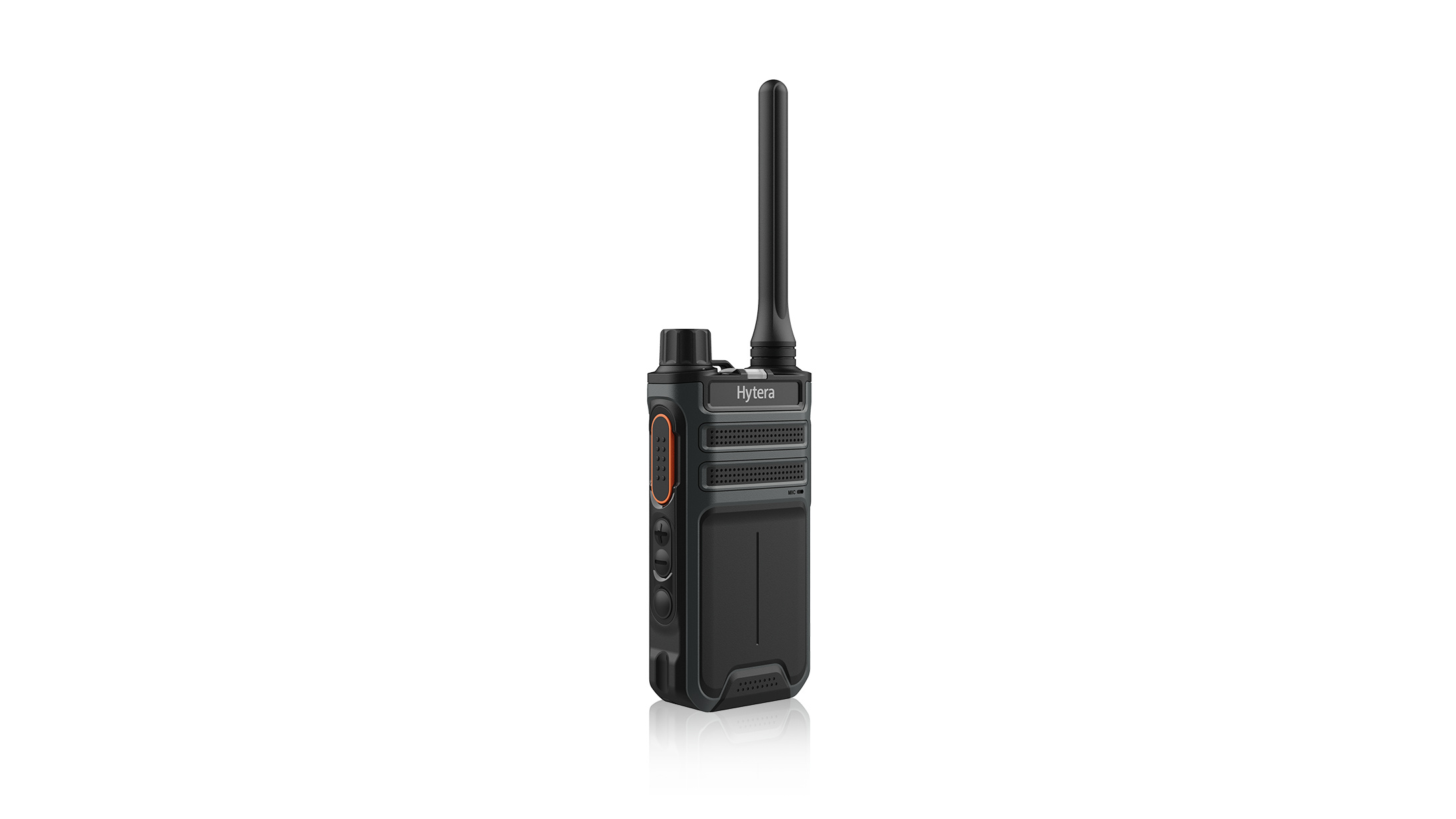

AP515LF Licence-free Analogue Business Radio (PMR446)

AP515 LF

Handheld | Analogue

The AP515LF series business radio is the perfect choice for instant communication. With a 3W speaker, the compact and light AP515LF can deliver loud and clear audio that allows you to hear and be heard in background noise. It has an incredibly long 25-hour battery life in its most minimal form. Type-C USB charge plug allows users to charge the radio with a power bank anywhere. With the extended range and a bunch of productivity and efficiency increasing features, the AP515LF will ensure you stay connected and productive. Check out the complete AP BP Licence-Free Range here

Highlights of AP515 LF

HEAR AND BE HEARD ANYWHERE

You might lose key information due to the unclear audio mixed with heavy background noise, or spend much extra time delivering your information to your partners. The AP515LF has a 3W speaker and advanced noise cancellation algorithm to eliminate unwanted background noise, reduce distortion, and suppress howling caused by other devices when in close proximity of each other, delivering louder and clearer audio. The background noise will no longer slow down your communication, and you can hear and be heard wherever you are.

COMMUNICATE THROUGHOUT THE WORKPLACE

The AP515LF has a high-sensitivity receiving module and high-efficiency monopole antenna to enhance signal penetration and achieve better call effect even in weak signal rooms. In addition, the monopole antenna has a unique stable design and is not easy to break and bend, it helps enhance the life time of the antenna and also increase the radiation efficiency compared to traditional antenna by 11% to extend radio communication distance.

DO MORE WHILE CARRYING LESS

With a 4000mAh Li-polymer battery, plus the low consumption design, the AP515LF has an incredibly long 25-hour battery life in its most minimal form to supply your increasing needs, without compromising in style or performance. The 10W USB Type-C charger can get the radio fully charged in 1.8-hours, or charge the radio in just one hour to get 8-hour of talk time. The long life battery also helps your teams power through extended shifts. So you can do more, while carrying less.

TRUSTWORTHY QUALITY

Hytera has the world's largest professional communication production line, and manufactures each device in accordance with Industry 4.0 standards. Strict supplier management system certification, each component meets the quality control requirements to ensure the consistency of product quality.

Specifications of AP515 LF

  • General
  • Receiver
  • Transmitter
  • Environmental
General
Frequency Range 446.0 - 446.2 MHz
Supported operating modes Analogue PMR446
Channels & zones Channel capacity: 32 Zone capacity: 2 Channels per zone: 16
Channel Spacing 12.5 kHz
Operating Voltage 3.7 V (rated)
Battery 4000 mAh 3.7 V
Battery Life (5/5/90 Duty Cycle, High TX Power) 25h
Frequency Stability ±0.5ppm
Antenna Impedance 50Ω
Dimensions (H x W x D) 105 x 55 x 29.5mm
Weight (with antenna & battery) 200g
Receiver
Sensitivity 0.18μV (12dB SINAD)
Adjacent Channel Selectivity TIA-603: 60dB@12.5kHz ETSI: 60dB@12.5kHz
Intermodulation TIA-603: 70dB@12.5kHz ETSI: 65dB@12.5kHz
Spurious Response Rejection TIA-603: 70dB@12.5kHz ETSI: 70dB@12.5kHz
Blocking TIA-603: 80dB; ETSI: 84dB
Hum and Noise 40dB@12.5kHz
Rated Audio Power Output 0.5W
Rated Audio Distortion ≤3%
Audio Response +1~-3dB
Conducted Spurious Emission <-57dBm
Transmitter
RF Power Output UHF: 0.5W
FM Modulation -36dBm<1GHz; -30dBm>1GHz
Modulation Limiting ±2.5kHz@12.5kHz
FM Hum & Noise 40dB@12.5kHz
Adjacent Channel Power 60dB@12.5kHz
Audio Response +1 to -3dB
Audio Distortion ≤3%
Environmental
Operating Temperature -30℃ to +60℃ (-30℃* Radio only - Battery -20℃)
Storage Temperature -40℃ to +85℃
ESD IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
Dust and Water Intrusion IEC 60529 IP54
Humidity MIL-STD-810 H
Shock and Vibration MIL-STD-810 H
