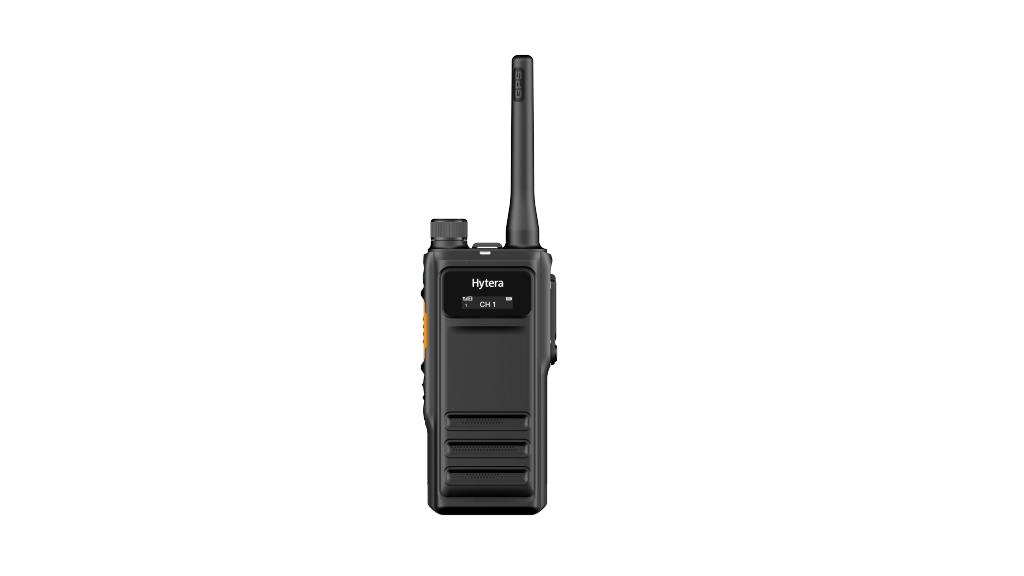

HP605 Professional DMR Portable Two-way Radio

HP605

Handheld | DMR

The HP605 digital mobile radio makes communication in customer service and extreme environments more efficient and enjoyable. With abundant features, 24 hour Lithium Polymer Battery and class leading audio performance, staff can stay safe, be heard and focus on their daily tasks using the small and light HP605.

Highlights of HP605

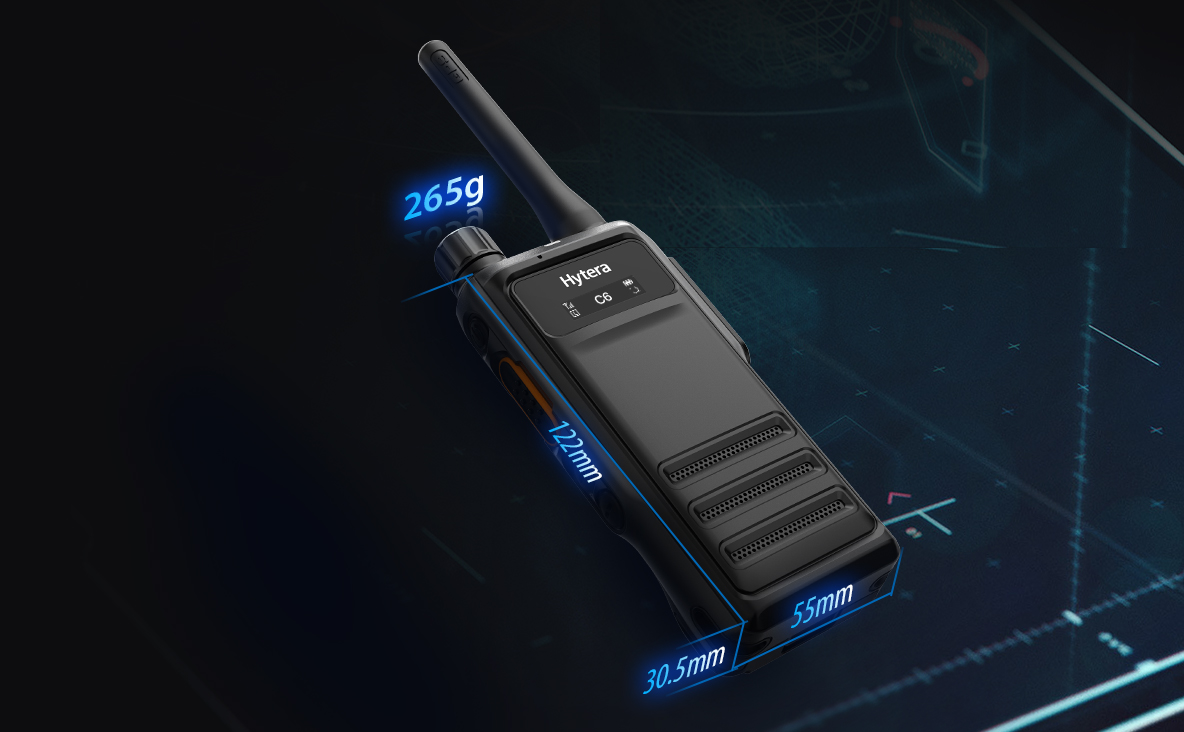

LIGHT AND STYLISH

The streamlined HP605 is compact and light and designed for ease of use with a Tactile PTT and programmable buttons for common functions. The integrated BT5.0 technology provides flexible wireless connection with accessories for hands-free operation.

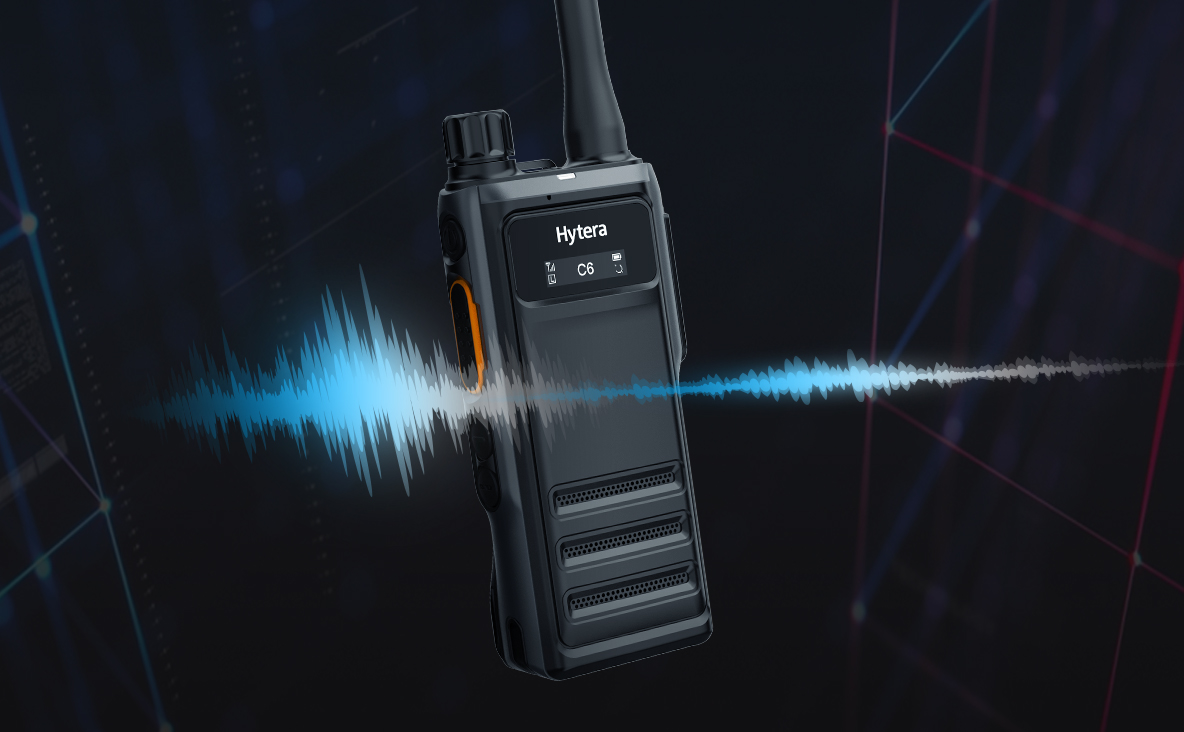

CLEAR AUDIO

The HP605 uses the cutting-edge AI-based noise cancellation technology to decrease the unwanted background noise and reduce howling, maintaining high audio clarity. Users can now hear and be heard regardless of any noise.

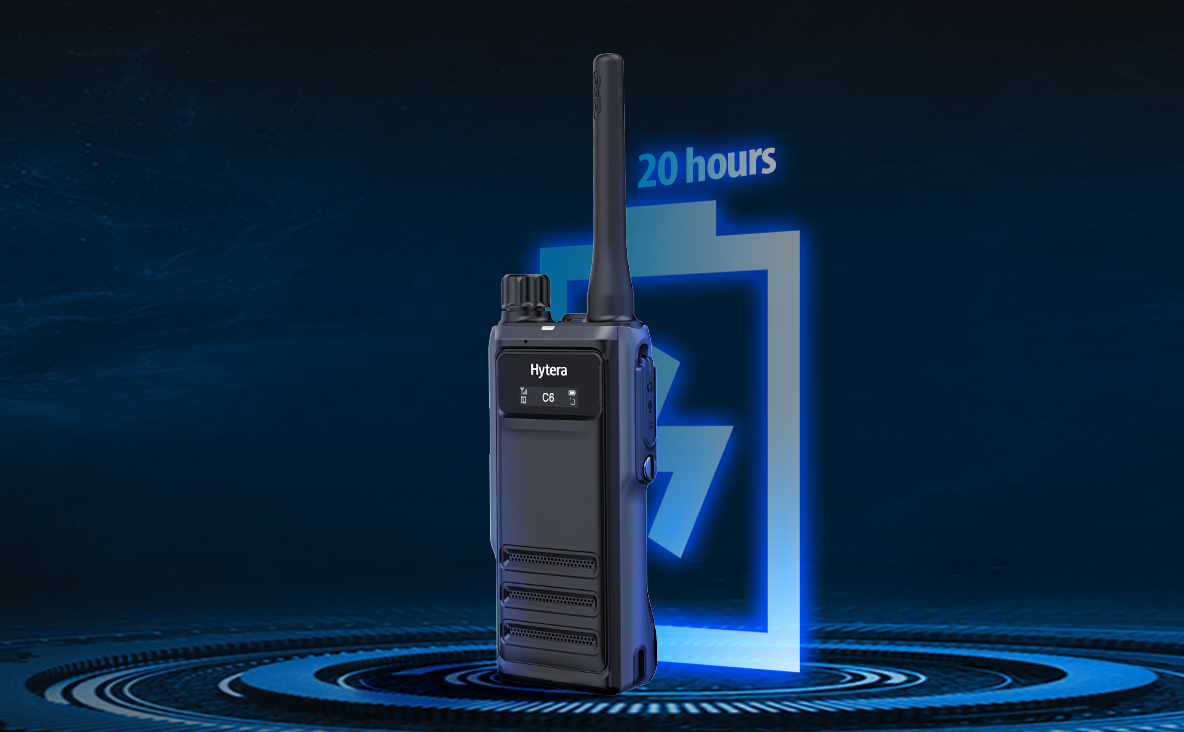

LONG BATTERY LIFE

The HP605 has a long battery life over 20 hours @ 5-5-90 as standard. Users no longer need to charge the radio or change the battery during their shift

RUGGED AND DURABLE

Manufactured to meet MIL-STD-810 G standard, the HP605 is IP67 rated and can withstand a 2-meter drop to stand up to the toughest user environments

GPS

Optional, enabling location based services to improve safety and control.

BLUETOOTH AUDIO

Optional, wireless connectivity to audio devices to improve user experience.

ADVANCED ENCRYPTION

Optional, the advanced encryption provides a safer and more reliable encryption mechanism to protect communication security.

ROAMING

Optional, roaming allows radios to move between sites in the IP Multi-site Connect system or XPT Multi-site system without dropping connection.

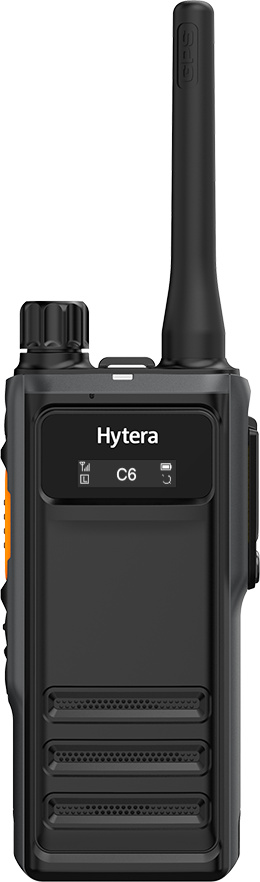

hytera image
High Sensitivity

Industry-leading sensitivity gives enhanced coverage with existing infrastructure to ensure clear audio in weak signal areas.

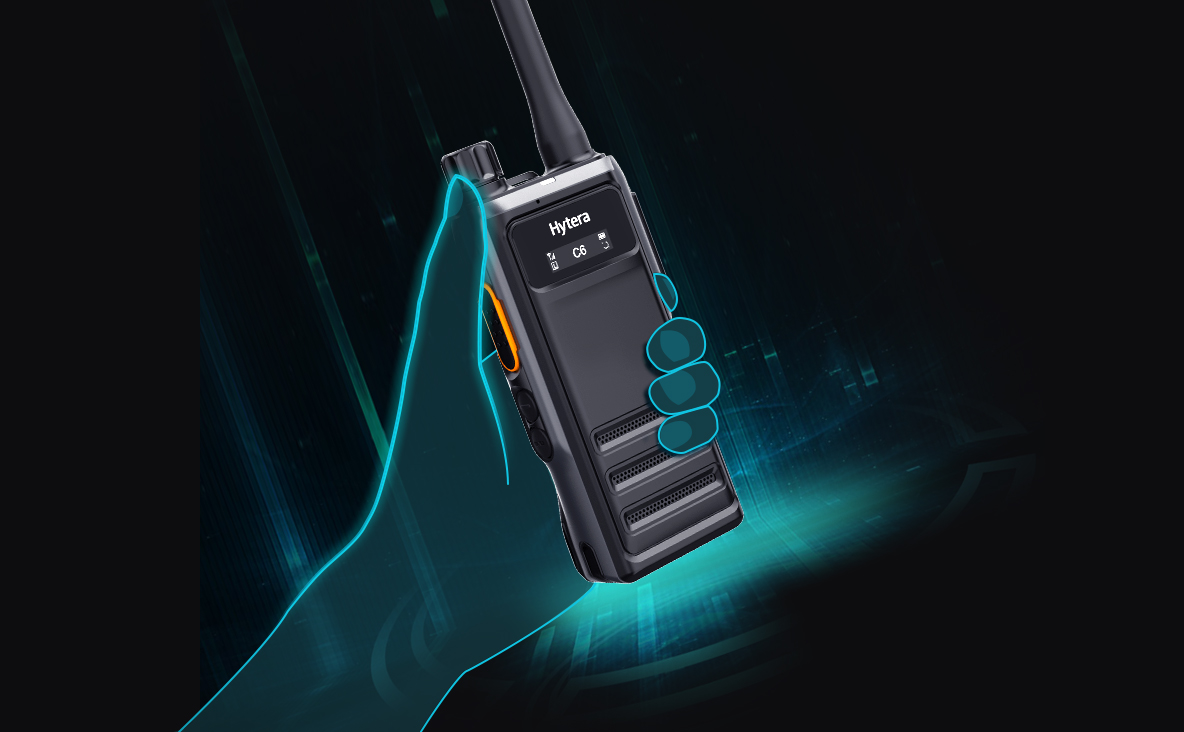

Button

Tactile PTT, two programmable buttons and more shortcut function settings.

High Reliability

IP67 rated, able to withstand a 2-meter drop and meets MIL-STD-810 G standard

Battery

A long battery life of over 20 hours @ 5-5-90 as standard means the user no longer needs to replace the battery or charge the radio during their shift.

Specifications of HP605

  • General data
  • Environmental Specs
General data
Frequency Range VHF: 136-174MHz UHF: 400-527MHz
Channel Capacity 1024
Zone Capacity 64 (256 channels per zone)
Channel Spacing 12.5 kHz/20 kHz/25 kHz
Operating Voltage 7.7 V(rated)
Battery 2000 mAh Li-polymer
Battey Life(5/5/90 Duty Cycle,High TX Power) GNSS disabled: 20hours; GNSS enabled: 16hours
Frequency Stability ±0.5 ppm
Antenna Impedance 50 Ω
Dimensions(H×W×D) mm 122 mm ×55 mm×30.5 mm
Weight 265 g
Display 0.91-inch OLED
BT V5.0 BLE+EDR (hardware option)
Sensitivity(Analog) 0.16 μV  (Typical) (12 dB SINAD); 0.18 μV (12 dB SINAD)
Sensitivity(Digital) 0.18 μV/BER5%
Adjacent Channel Selectivity ETSI: 60 dB@12.5 kHz / 70 dB@20/25 kHz TIA-603: 60 dB@12.5 kHz / 70dB@20/25 kHz
Intermodulation TIA-603: 70 dB; ETSI: 65 dB
Blocking ETSI: 84 dB; TIA-603: 80 dB
Hum&Noise 40 dB@12.5 kHz; 43 dB@20 kHz,; 45 dB@25 kHz
Rated Audio Power Output 0.5 W
Rated Audio Distortion ≤3%
Audio Response +1 to -3 dB
Conducted Spurious Emission <-57 dBm
RF Power Output UHF: 1 W/4 W; VHF: 5 W/1 W
FM Modulation 11K0F3E@12.5 kHz; 14K0F3E@20 kHz; 16K0F3E@25 kHz
4FSK Digital Modulation 12.5 kHz Data Only: 7K60FXD; 12.5 kHz Data and Voice: 7K60FXW
Conducted/Radiated Emission -30 dBm>1 GHz; -36 dBm<1 GHz
Modulation Limiting ±2.5 kHz@12.5 kHz; ±4.0 kHz@20 kHz; ±5.0 kHz@25 kHz;
FM Hum&Noise 40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz
Adjacent Channel Power 60 dB@12.5 kHz; 70 dB@20/25 kHz
Audio Distortion ≤3%
Digital Vocoder Type AMBE+2™
Digital Protocol ETSI-TS102 361-1,-2,-3
Environmental Specs
Operating Temperature -30 ℃~+60 ℃
Storage Temperature -40 ℃~+85 ℃
ESD IEC 61000-4-2 (Level 4); ±15 kV (air); ±8 kV (contact)
MIL Standard MIL-STD-810 C/D/E/F/G
Dust & Water Protection IP67
Humidity MIL-STD-810G
Vibration,Drop&Shock MIL-STD-810G
Horizontal Position Accuracy <5 meters
Cold Start (Time to First Fix) <1 minute
Hot Start (Time to First Fix) <10 seconds
Note Accuracy Specs are for long-term tracking (95th percentile values>5 satellites visible at a nominal-130 dBm signal strength)
