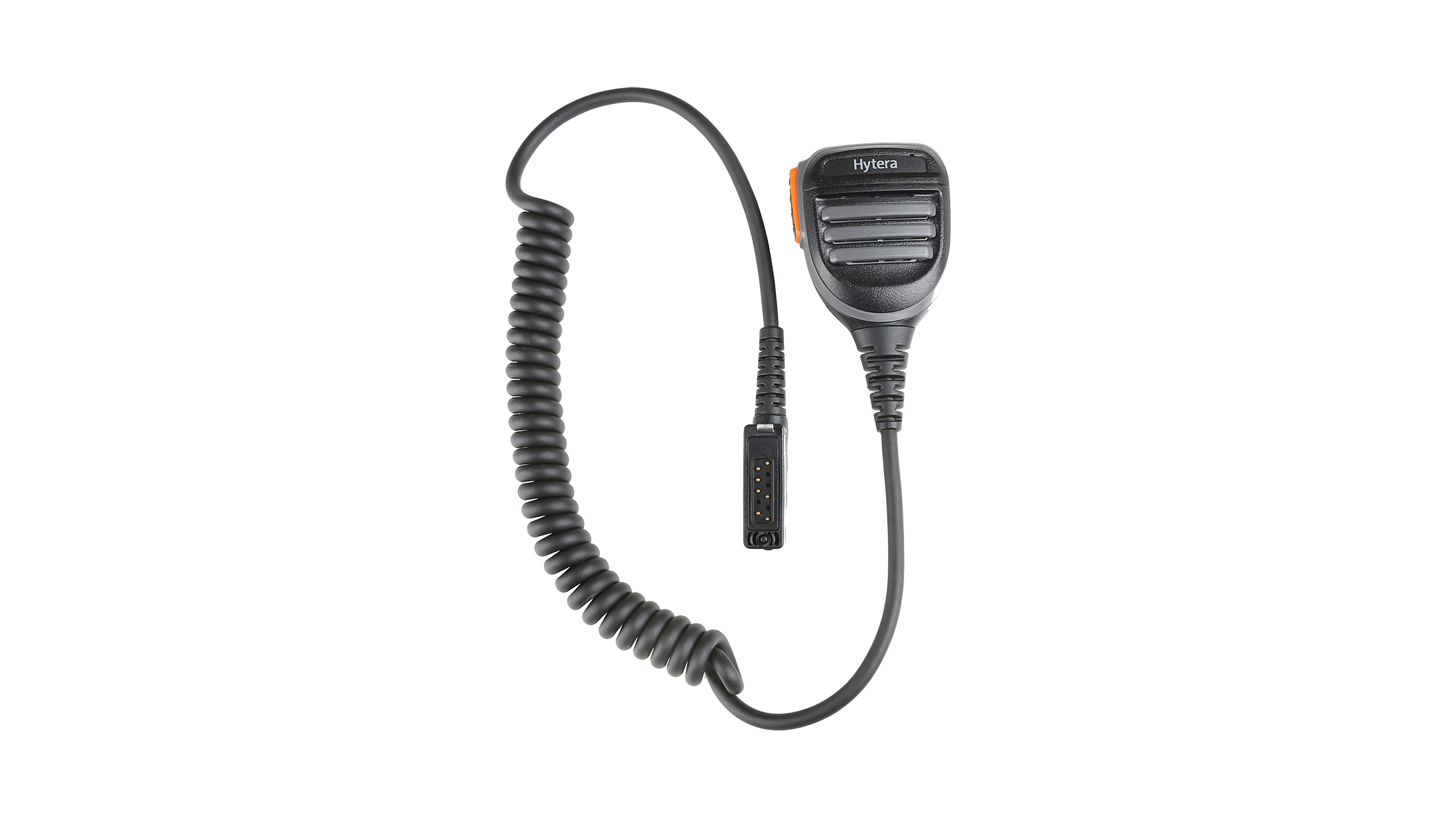

Compact and lightweight IP54 compliant remote speaker microphone. With an integrated chip for verification as an original Hytera accessory. with emergency button and 2.5 mm external audio connector audio jack for use with earpieces EAS03, EHS17 with 360° swivel metal clip. Applicable for HP505, HP565, HP605, HP685, HP705, HP785, PDC680, PDM680, PTC680, PDC550, PD605, PD665, PD685, X1e, X1p, Z1p
Dimensions | 76.85 * 60.55 * 34mm |
Weight | about 150 g |
Color | black & grey |
PTT Key | available |
Emergency Key | available |
Accessory Interface | 2.5mm |
Connector | 13pin |
Microphone Sensitivity | –42±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa |
Speaker Power | 2W (rated);3W (max.) |
Speaker Impedance | 20 Ω±15% @ 1.5 kHz |
Speaker Frequency Response | 97±3 dB @ 1 kHz 2 W/30 cm |
Certification | CE, UL913 |
IP Rating | IP54 |
Anti-explosion levels | / |
Operating Temperature | –30℃ to 60℃ |
Storage Temperature | –40℃ to 85℃ |
Note | / |
