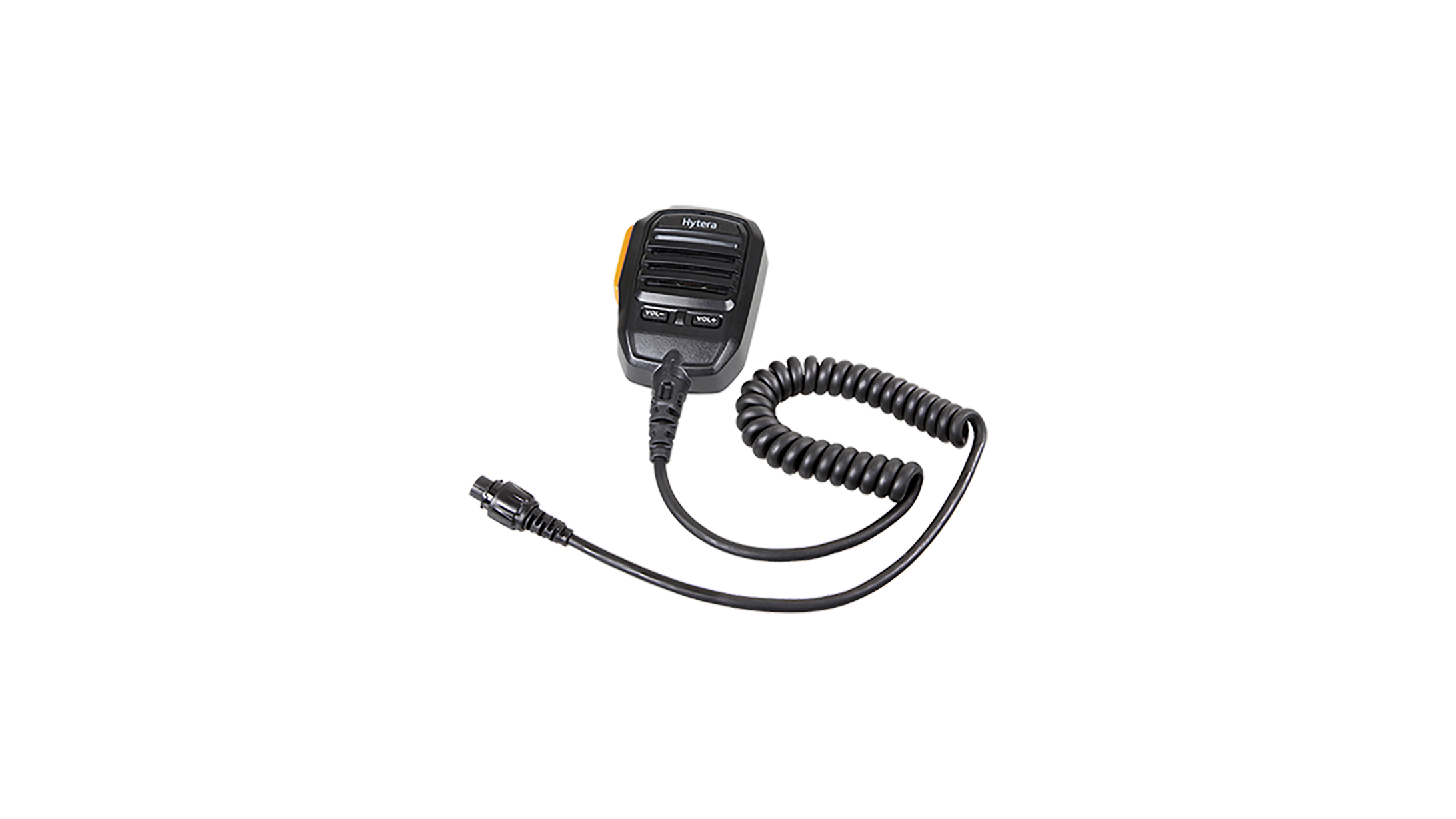

SM18A1

Waterproof Remote Speaker Microphone(IP67)

Audio

Specifications of SM18A1

  • Specs_Acc_Audio
Specs_Acc_Audio
Dimensions 86.3* 62.1* 43.8mm
Weight about 150 g
Color black
PTT Key available
Emergency Key none
Connector 10-pin connector
Microphone Sensitivity –42±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa
Speaker Power 1 W (rated); 1.5 W (max.)
Speaker Impedance 8 Ω±15% @ 1kHz
Speaker Frequency Response 78±4 dB @ 1 kHz 1 W/30 cm
IP Rating IP67
Operating Temperature –30℃ to 70℃
Storage Temperature –40℃ to 85℃
