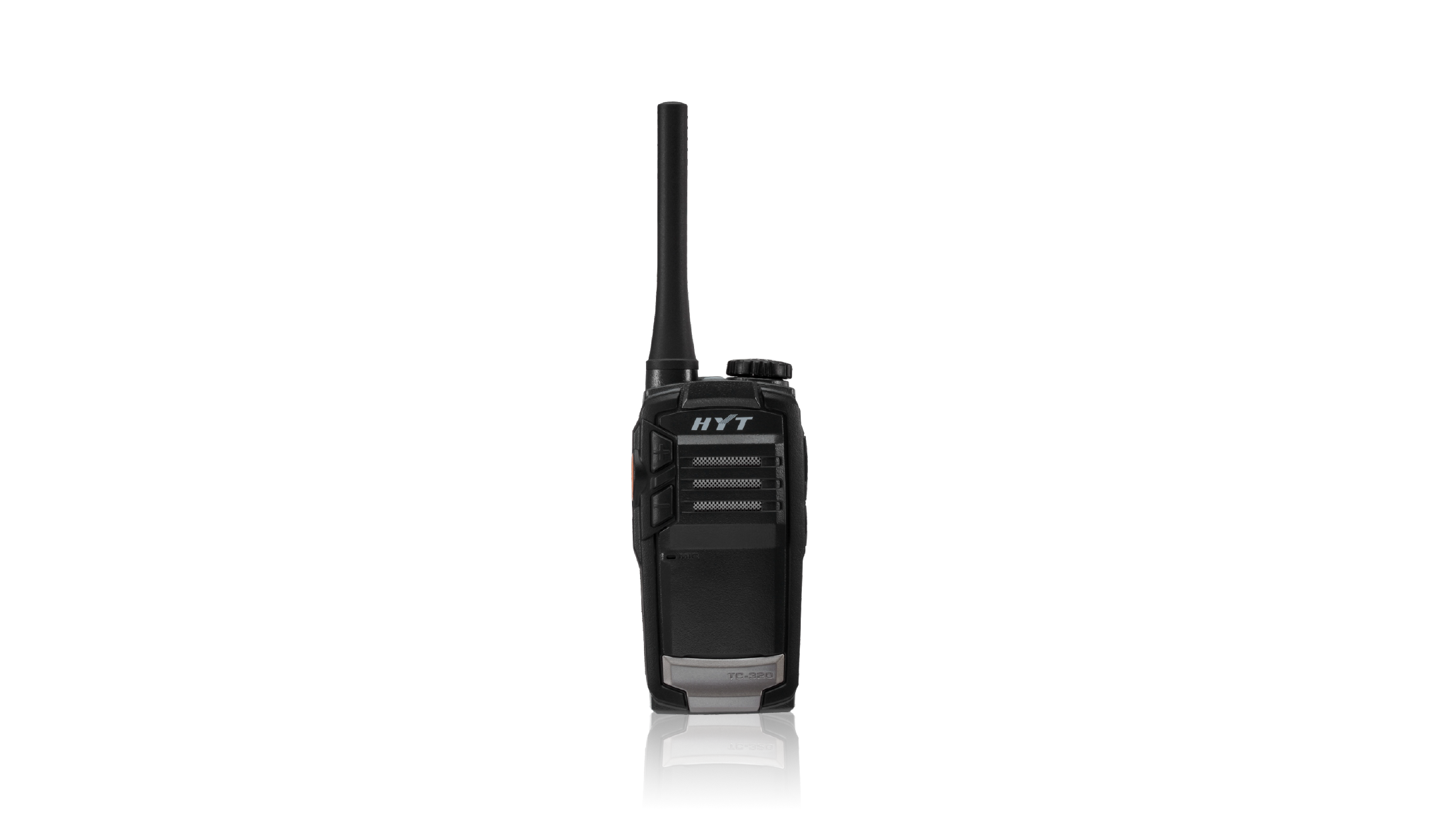

Highlights HYT TC-320
Delicate, Compact and Durable Body
Strong enough to withstand 1.5m drop with delicate and compact body design, ideal
for indoor use in warehouses and manufacturing.
Double Injection Molding and Anti-skid Design
The combination of double injection molding and anti-skid technology brings users
comfortable and convenient operation experience.
Fashionable Design and Compact Appearance
With ergonomic design, this slim and compact product can help users relieve themselves
of fatigue from long-time operation.
Chargeable and Programmable through Mini USB Interface
You can directly charge or program TC-320 through its new added Mini USB interface.
Long Battery Life
The 1700mAh high capacity Li-ion battery can secure a battery life up to 10 hours.
Wide Communication Range
2W output power can realize wide communication range.
Specifications of HYT TC-320
- General
- Receiver
- Transmitter
| General | ||
|---|---|---|
| Frequency Range | 400-470 MHz | |
| Channel Capacity | 16 | |
| Channel Spacing | 25 kHz/12.5 kHz | |
| Operating Voltage | 3.8 V | |
| Battery | 1100 mAh | |
| Battey Life(5/5/90 Duty Cycle,High TX Power) | 8 hours | |
| Frequency Stability | ±2.5 ppm | |
| Antenna Impedance | 50 Ω | |
| Dimensions(H×W×D) mm | 100 mm × 48 mm × 27 mm | |
| Weight | 135 g | |
| Receiver | ||
|---|---|---|
| Sensitivity(Analog) | ≤0.25/0.28 μV | |
| Adjacent Channel Selectivity | 60/55 dB | |
| Intermodulation | 55 dB | |
| Spurious Response Rejection | ≥55/50 dB | |
| S/N | ≥40/34 dB | |
| Rated Audio Power Output | 400 mW | |
| Rated Audio Distortion | ≤5% | |
| Conducted Spurious Emission | ≤-57 dBm | |
| Transmitter | ||
|---|---|---|
| RF Power Output | 2 W/0.5 W | |
| Modulation Limiting | ≤5 kHz/2.5 kHz | |
| FM Hum&Noise | ≥38 dB/34 dB | |
* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
Standard Accessories of HYT TC-320
