VM68X

Body Worn Camera

Bodycam RSM | RSM

The VM68X integrates a body worn camera with a remote speaker microphone. It is designed to capture, store, and share video, audio, and images in the field. Paired with Hytera multi-mode advanced radio, the VM68X allows you to easily initiate PTT calls and send an emergency alarm at critical moment.

Highlights of VM68X

Ultra HD Camera

With an ultra wide‑angle 140° diagonal field of view and 16 MP image sensor, the VM68X supports recording full HD video of 1080p@60 fps.

180° Rotatable Camera

The lens of VM68X can be rotated vertically by 180°, which provides a wider angle of view to capture critical events and more wearing options.

Data Encryption

The VM68X employs AES256 encryption algorithm to protect the captured evidence, including video, audio, and images.

Long-lasting Battery

The battery supports at least 8 hours of continuous video recording on a single charge. With the quick swap design, you can replace the battery easily in few steps.

More Than a BWC

The VM68X can connect to a radio through BT or cable so that it can be used as a remote speaker microphone. You can directly view the information and initiate PTT calls.

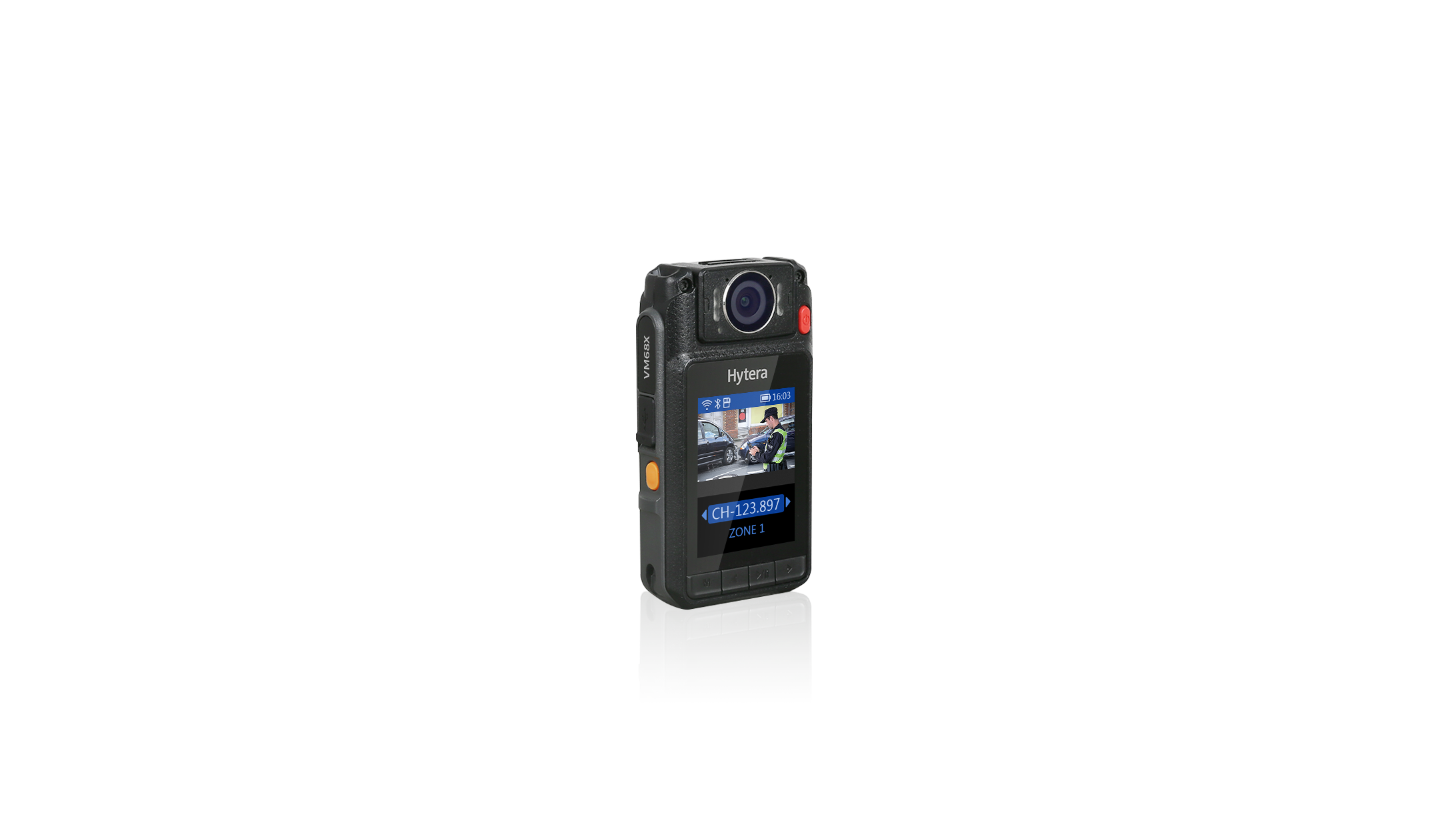

VM68X Body Worn Camera
Rotatable Ultra HD Camera

The lens of VM68X can be rotated vertically by 180°, which provides a wider angle of view to capture critical events and more wearing options.

Shortcut Button

One-Touch Video Recording and One-Touch Photo Taking

Long-lasting Battery

≥ 8-Hour Continuous Video Recording on a Single Charge, 10-Day Standby Time

Battery Latch

Easily Replace the Battery Anywhere and Anytime

Specifications of VM68X

  • General
  • Video and Imaging
General
Dimensions(H×W×D) mm 106.5 x 60 x 24
Weight <170克
Memory 16 GB32 GB64 GB128 GB (可选)
Peripheral Interface Mirco USB, 10-pin专用连接口
Display 尺寸:2.4英寸; 分辨率:240(RGB)x320; 类型:TFT-LCD 262K彩色显示屏
Camera 图像传感器:1600万像素 CMOS;镜头:定焦,全玻璃,180度可旋转,红外夜视切换可视角度: 140°(对角线),106°(水平) 78°(垂直) ;聚焦范围:0.8米 ~ 无穷远
Battery 2500 mAh
Charging Time ≤4 小时
Video and Imaging
Video File Types mp4
Image Resolution 1600万/500万/300万 (可选)
Video Resolutions and Frames Per Second 480P@30FPS,720P@30/60FPS,1080P@30/60FPS
Pre-recording/Post-recording 预录:10秒/20秒;延录:10秒/20秒/30秒
Battery Life(Continuous Video Shooting) 约7小时(480p@30fps)
*Note: Hytera body worn camera and video recording devices are not authorized to be marketed in the US.
