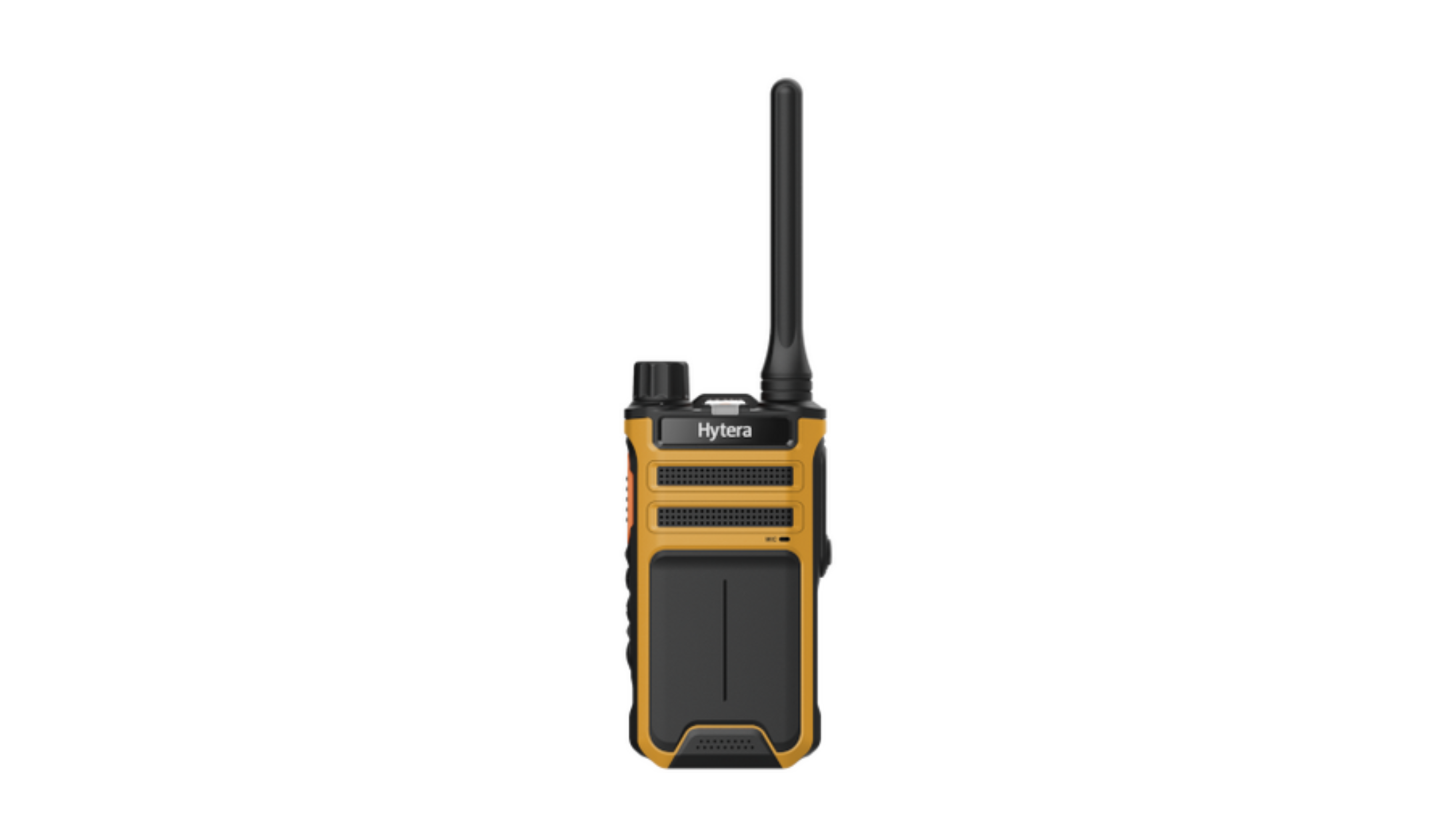

AP525LF Licence-free Analogue Business Radio (PMR446), IP66

AP525LF

Handheld | Analogue

The AP525LF series license-free business radio is the perfect choice for higher requirements in terms of robustness and ingress protection. The AP525LF is the IP66 version of the AP515LF with otherwise identical functionality. The higher degree of protection is represented by a partially orange housing. Check out the complete AP BP Licence-Free Range here

Highlights of AP525LF

HEAR AND BE HEARD ANYWHERE

You might lose key information due to the unclear audio mixed with heavy background noise, or spend much extra time delivering your information to your partners. The AP525LF has a 3W speaker and advanced noise cancellation algorithm to eliminate unwanted background noise, reduce distortion, and suppress howling caused by other devices when in close proximity of each other, delivering louder and clearer audio. The background noise will no longer slow down your communication, and you can hear and be heard wherever you are.

COMMUNICATE THROUGHOUT THE WORKPLACE

The AP525LF has a high-sensitivity receiving module and high-efficiency monopole antenna to enhance signal penetration and achieve better call effect even in weak signal rooms. In addition, the monopole antenna has a unique stable design and is not easy to break and bend, it helps enhance the life time of the antenna and also increase the radiation efficiency compared to traditional antenna by 11% to extend radio communication distance.

DO MORE WHILE CARRYING LESS

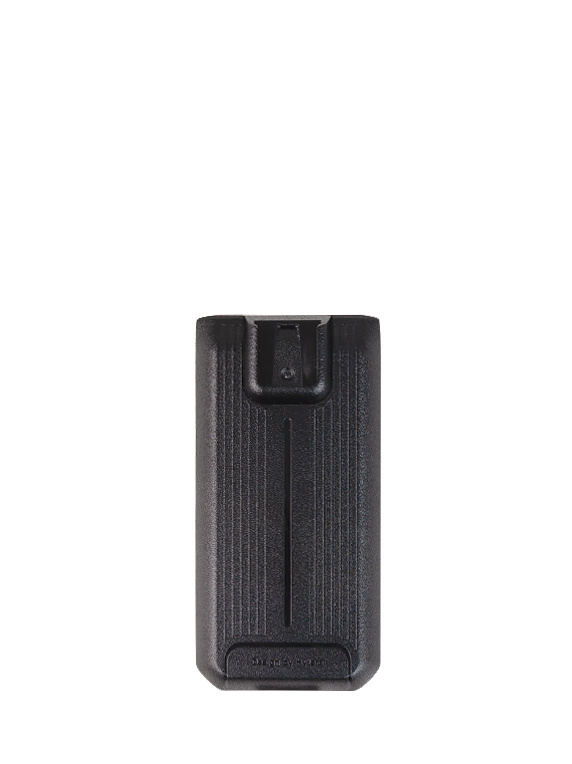

With a 4000mAh Li-polymer battery, plus the low consumption design, the AP525LF has an incredibly long 25-hour battery life in its most minimal form to supply your increasing needs, without compromising in style or performance. The 10W USB Type-C charger can get the radio fully charged in 1.8-hours, or charge the radio in just one hour to get 8-hour of talk time. The long life battery also helps your teams power through extended shifts. So you can do more, while carrying less.

TRUSTWORTHY QUALITY

Hytera has the world's largest professional communication production line, and manufactures each device in accordance with Industry 4.0 standards. Strict supplier management system certification, each component meets the quality control requirements to ensure the consistency of product quality.
hytera image

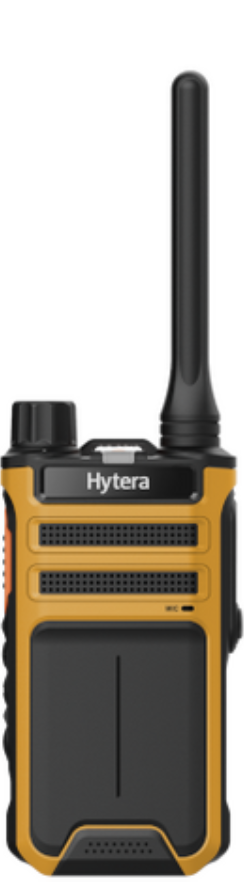

Aesthetic Design

For ease of use

PTT Key

Push-to-talk key easily accessible

High Reliability

The AP525LF is IP66-graded water-proof and dust-proof and meets stringent MIL-STD-810G military requirements for protection against vibration, 1.5-meter drops, extreme temperature, etc

Independent Volume Keys

Extends the life of the volume knob and can keep the volume settings unchanged after restarting

Anti-Slip and Durable Texture

Anti-abrasive housing for better handling

Type-C USB port

Allows to charge the radio with a power bank anywhere

Specifications of AP525LF

  • General
  • Receiver
  • Transmitter
  • Environmental
General
Frequency Range 446.0 - 446.2 MHz
Supported operating modes Analogue PMR446
Channels & zones Channel capacity: 32 Zone capacity: 2 Channels per zone: 16
Channel Spacing 12.5 kHz
Operating Voltage 3.7 V (rated)
Battery 4000 mAh / 3.7 V
Battery Life (5/5/90 Duty Cycle, High TX Power) 25h
Frequency Stability ±0.5ppm
Antenna Impedance 50Ω
Dimensions (H x W x D) 105 x 55 x 29.5mm
Weight (with antenna & battery) 200g
Receiver
Sensitivity 0.18μV (12dB SINAD)
Adjacent Channel Selectivity TIA-603: 60dB@12.5kHz ETSI: 60dB@12.5kHz
Intermodulation TIA-603: 70dB@12.5kHz ETSI: 65dB@12.5kHz
Spurious Response Rejection TIA-603: 70dB@12.5kHz ETSI: 70dB@12.5kHz
Blocking TIA-603: 80dB; ETSI: 84dB
Hum and Noise 40dB@12.5kHz
Rated Audio Power Output 0.5W
Rated Audio Distortion ≤3%
Audio Response +1~-3dB
Conducted Spurious Emission <-57dBm
Transmitter
RF Power Output UHF: 0.5W
FM Modulation -36dBm<1GHz; -30dBm>1GHz
Modulation Limiting ±2.5kHz@12.5kHz
FM Hum & Noise 40dB@12.5kHz
Adjacent Channel Power 60dB@12.5kHz
Audio Response +1 to -3dB
Audio Distortion ≤3%
Environmental
Operating Temperature -30℃ to +60℃ (-30℃* Radio only - Battery -20℃)
Storage Temperature -40℃ to +85℃
ESD IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
Dust and Water Intrusion IEC 60529 IP66
Humidity MIL-STD-810 H
Shock and Vibration MIL-STD-810 H
