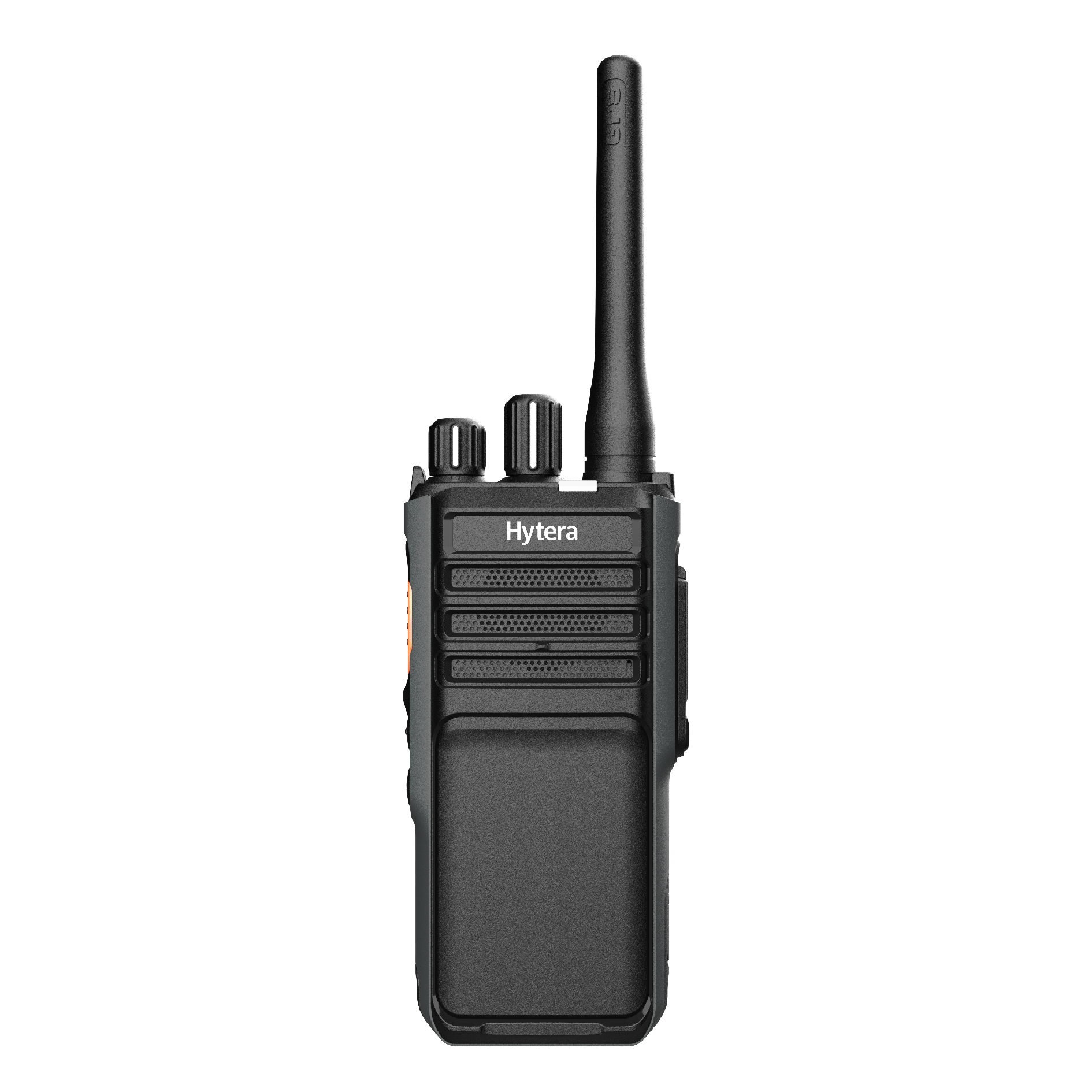

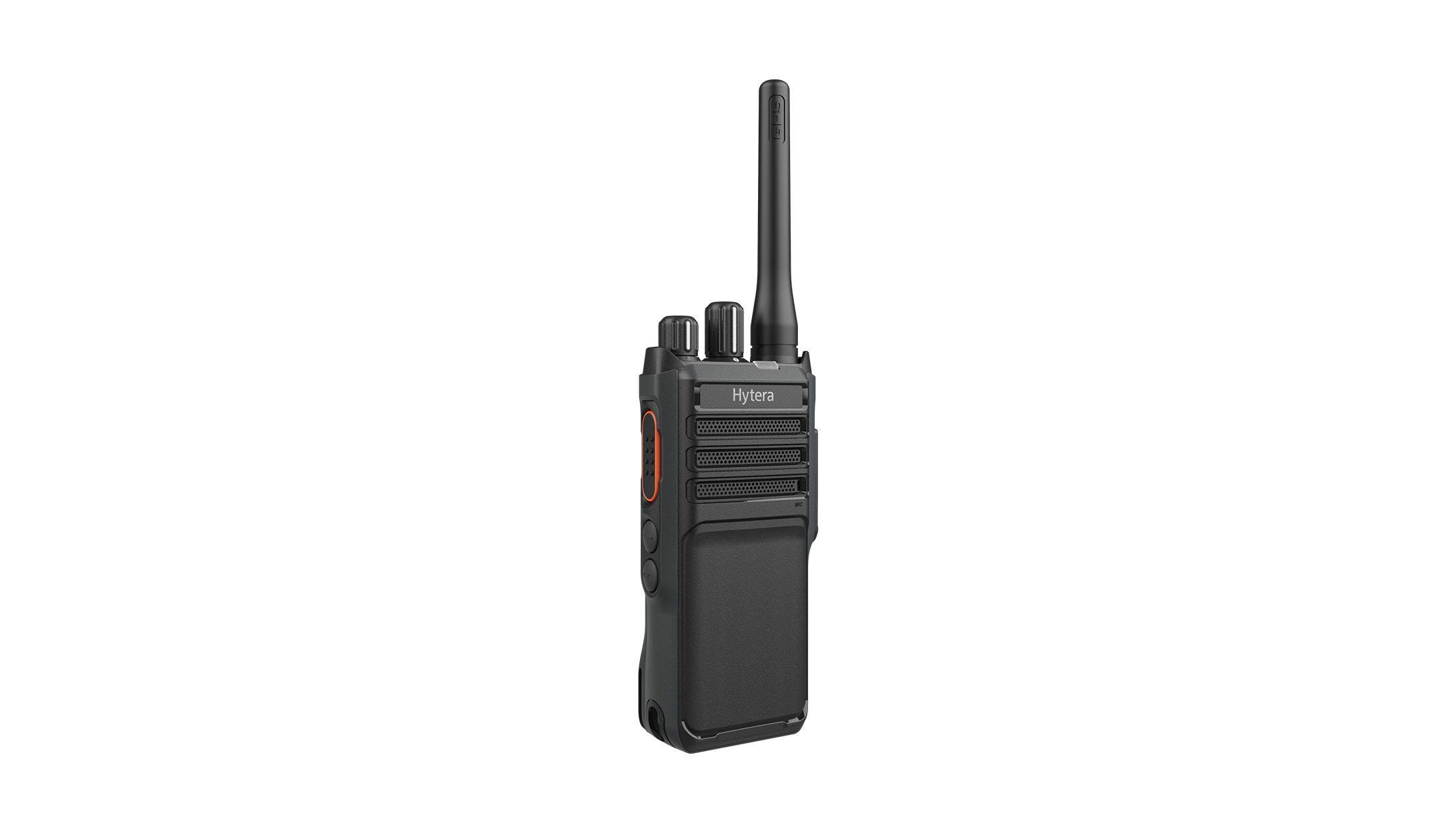

HP505 Professional DMR Portable Two-way Radio

Handheld | DMR

Hytera HP5 Series is a new-gen professional portable two-way radio that provides reliable voice communications for high-end office buildings, stadiums, industrial parks, schools, hospitals, and more. The universal Type-C port makes programming, upgrading, and charging more convenient than ever before. Durable enough to withstand dust, heat, shock and water submersion, the HP5 Series is IP67 and MIL-STD-810H certified. The superior audio has never been compromised, thanks to the powerful speaker and the AI-based noise cancellation algorithm. The outstanding sensitivity ensures stable communications in challenging environments.

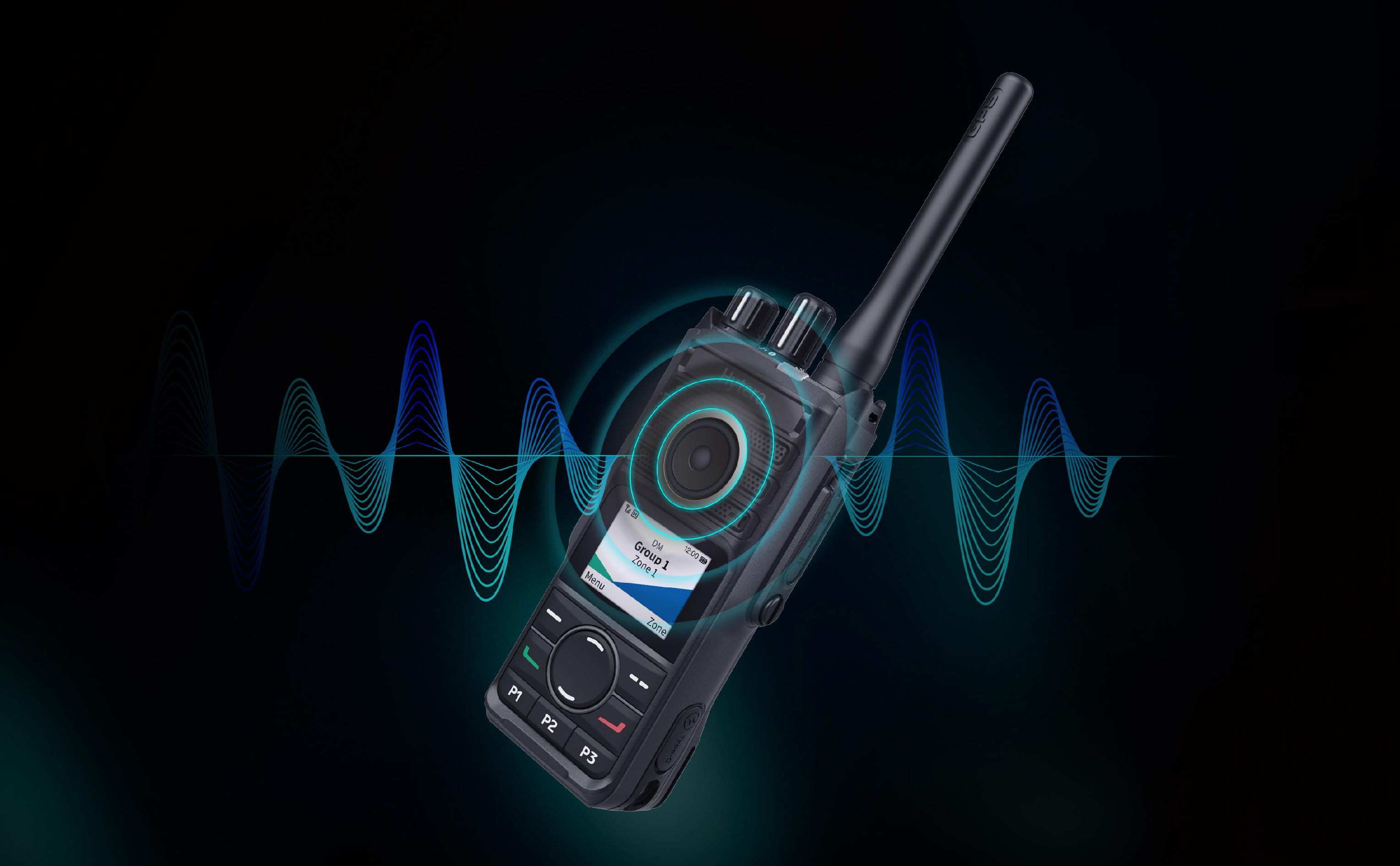

CRISP, CLEAR AUDIO

Crystal-clear audio in any environment, thanks to AI-based noise cancellation. Suppresses any annoying feedback howling and unwanted ambient noises.

BREAK THROUGH THE DISTANCE

With 0.18 µV (-122 dBm) sensitivity, the HP5 series provides exceptional communication coverage. It ensures reliable communications even with weak signals at the edge of coverage.

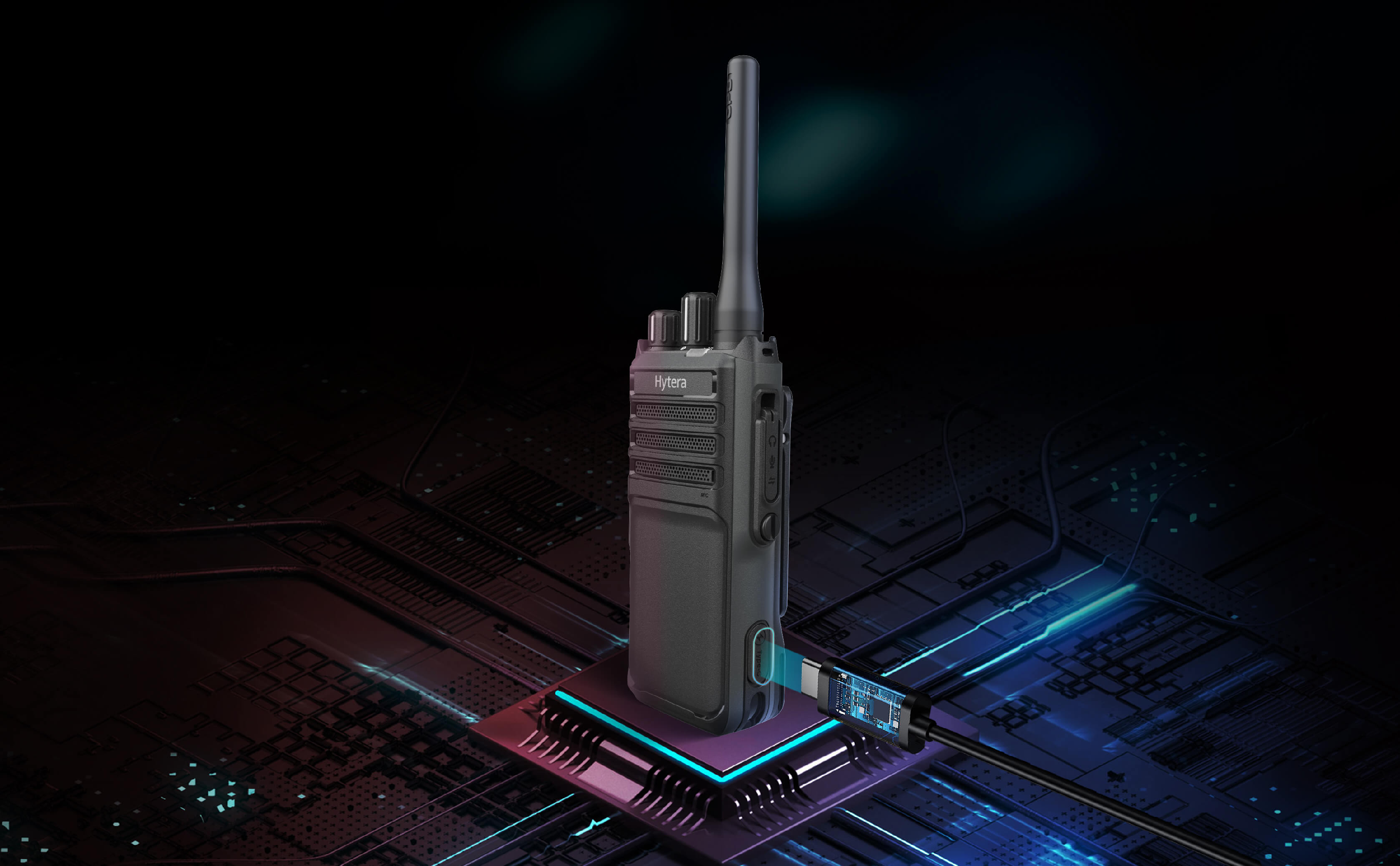

UNIVERSAL TYPE-C PORT

Just share the same USB data cable with your smartphone, then you can charge your radio with a power bank or car charger, or program and upgrade your radio.

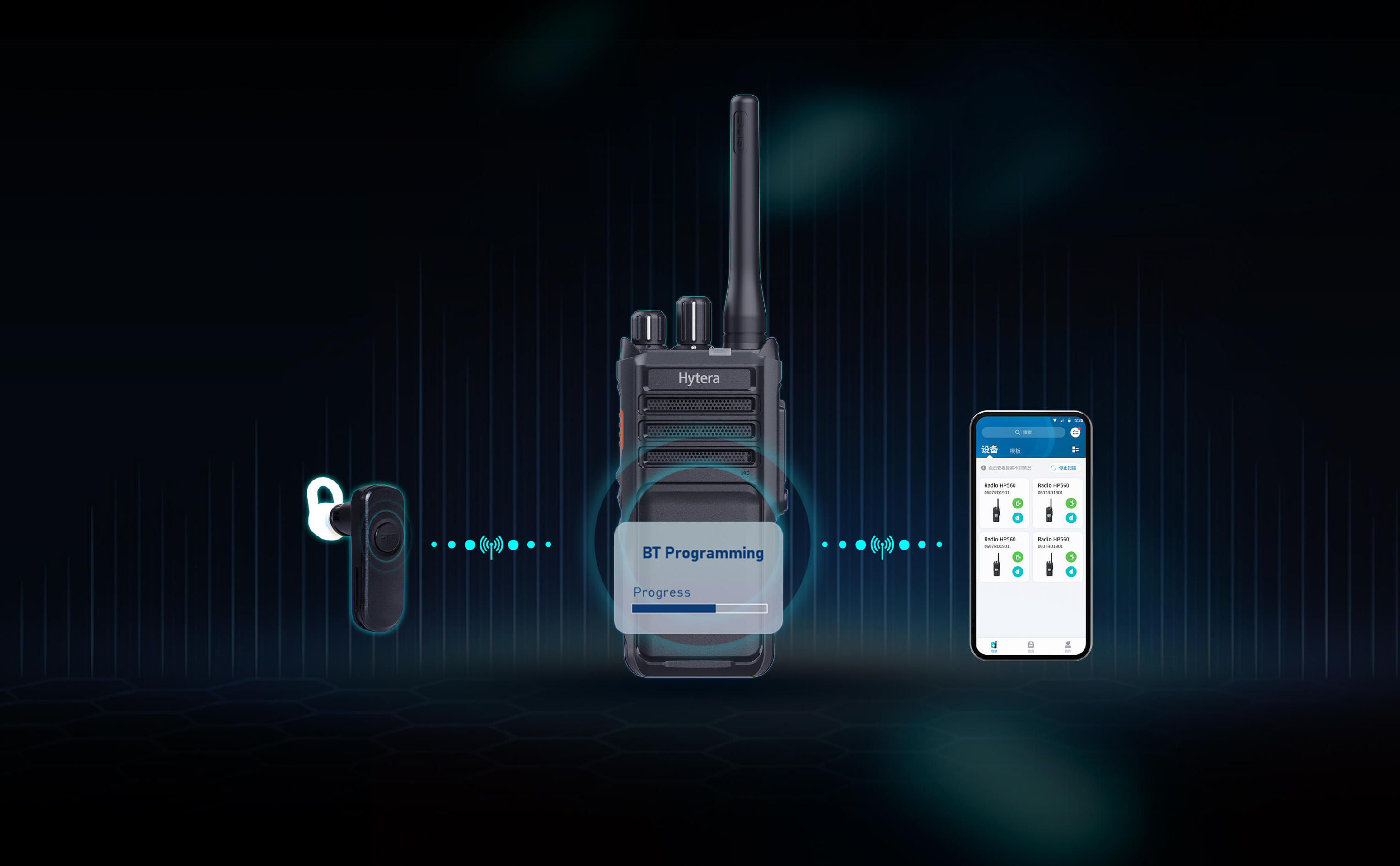

BT, WIRELESSLY, CONVENIENTLY

Optional BT 5.2 capability,using BT audio accessories. Allows to pair the radio with smartphone, using the Hytool Radio Manager App for radio programming.

TRACK YOUR PEOPLE AND DEVICE ANYWHERE

Provides updates to a dispatcher, thanks to the optional GPS, BDS and GLONASS positioning systems. The radio position is automatically sent with the emergency call.

EASIER TO USE

Dedicated dual knobs for volume and channel controls. Install or remove the belt clip more easily without screws. The enlarged LED indicator allows you to know the radio status at a glance, no matter whether the radio is in your hand or on your shoulder or waist.

RUGGED RELIABILITY

The radio housing is made of polycarbonate with excellent abrasion and heat resistance. IP67-rated and meets stringent MIL-STD-810G for protecting against dust, water, vibrations, 1.5 meter drops, extreme temperatures, and more.

High Reliability

IP67 rated and resilient to 1.5-meter drop to stand up to a lot of wear and tear, MIL-STD-810G standard

High Sensitivity

With industry-leading sensitivity, we can obtain better communication coverage with less equipment and cost investment, and ensure the transsmit timely of every key information

Type-C Port

Can be charged anytime, anywhere

Dual Knobs

One switch and volume adjustment, one channel switching

Specifications of HP505


Frequency Range	UHF: 400-470 MHz;VHF: 136-174 MHz
Channel Capacity	256
Zone Capacity	16
Channel Spacing	12.5 kHz/20 kHz/25 kHz
Operating Voltage	7.4 V (rated)

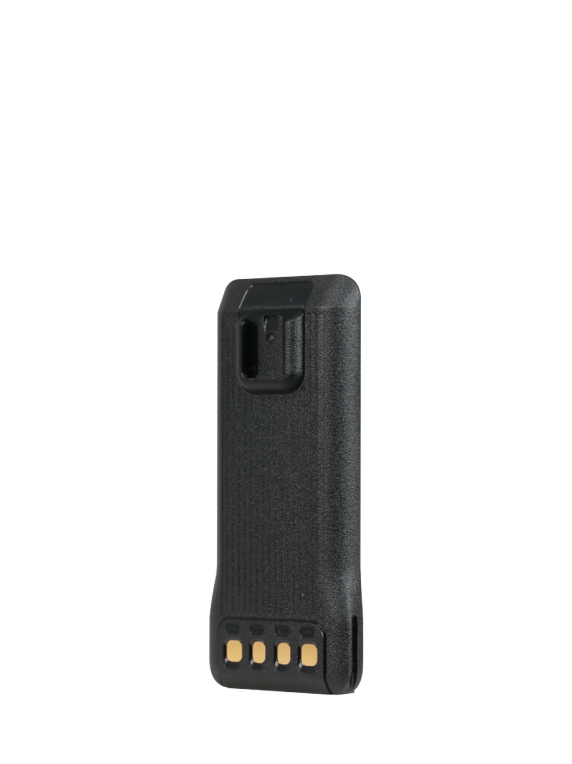

Battery	1500 mAh
Battey Life(5/5/90 Duty Cycle,High TX Power)	15 h (GNSS OFF); 13 h (GNSS ON)
Frequency Stability	±0.5 ppm
Antenna Impedance	50 Ω
Dimensions(H×W×D) mm	119 mm x 55 mm x 30.5 mm
Weight	265 g
BT	BT 5.2 BLE+EDR


Sensitivity(Analog)	0.18 μV (12 dB SINAD); 0.16 μV (Typical) (12 dB SINAD);
Sensitivity(Digital)	0.18 μV/BER5%
Adjacent Channel Selectivity	TIA-603: 60 dB@12.5 kHz / 70 dB@20/25 kHz;ETSI: 60 dB@12.5 kHz / 70 dB@20/25 kHz
Intermodulation	TIA-603: 70 dB@12.5/20/25 kHz;ETSI: 65 dB@12.5/20/25 kHz
Spurious Response Rejection	TIA-603: 70 dB@12.5/20/25 kHz;ETSI: 70 dB@12.5/20/25 kHz
Blocking	TIA-603: 80 dB; ETSI: 84 dB
Hum&Noise	40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz
Rated Audio Power Output	0.5 W
Rated Audio Distortion	≤3%
Audio Response	+1~-3 dB
Conducted Spurious Emission	<-57 dBm


RF Power Output	UHF: 4W/1W;VHF: 1W/5W
FM Modulation	11K0F3E@12.5 kHz; 14K0F3E@20 kHz; 16K0F3E@25 kHz
4FSK Digital Modulation	12.5 kHz data only: 7K60FXD; 12.5 kHz data and voice: 7K60FXW
Conducted/Radiated Emission	-36 dBm＜1 GHz; -30 dBm＞1 GHz
Modulation Limiting	±2.5 kHz@12.5 kHz; ±4.0 kHz@20 kHz; ±5.0 kHz@25 kHz
FM Hum&Noise	40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz
Adjacent Channel Power	60 dB@12.5 kHz;70 dB@20/25 kHz
Audio Distortion	≤3%
Digital Vocoder Type	AMBE+2™/SELP


Operating Temperature	-30 ℃ to +60 ℃ (Radio only - Battery -20 ℃)
Storage Temperature	-40 ℃ to +85 ℃
ESD	IEC 61000-4-2 (Level 4) ±8 kV (contact); ±15 kV (air)
MIL Standard	MIL-STD-810H
Dust & Water Protection	IEC60529-IP67
Humidity	MIL-STD-810H
Vibration,Drop&Shock	MIL-STD-810H


Horizontal Position Accuracy	<5 m
Cold Start (Time to First Fix)	<1 minute
Hot Start (Time to First Fix)	<10 seconds
Note	Accuracy Specs are for long-term tracking (95th percentile values>5 satellites visible at a nominal-130 dBm signal strength)
