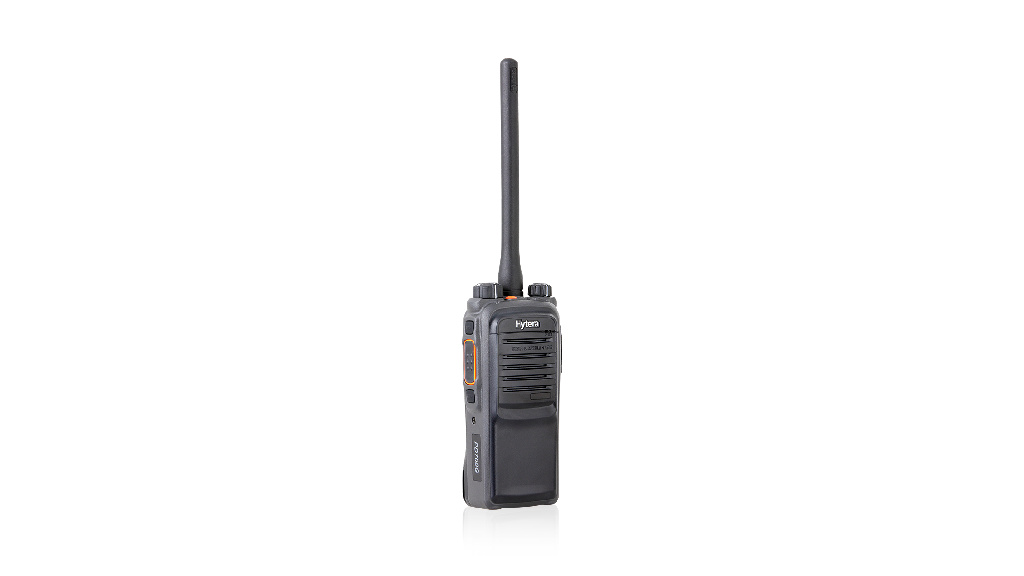

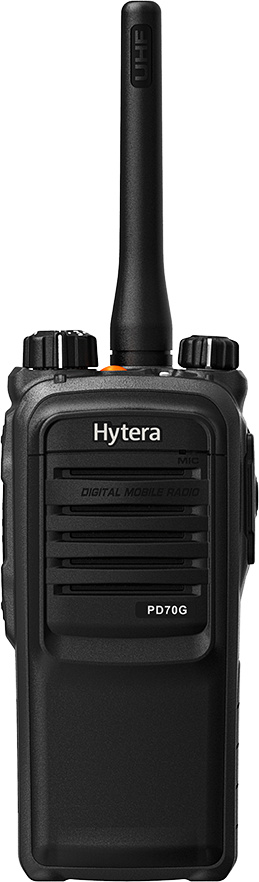

A popular all-rounder, the Hytera PD705 handheld digital two-way radio offers a vast array of functionality, with remarkable build quality, enabling reliable and secure communications in any situation. Request the PD705(G) variant for GPS and Man Down.
Making better use of the channel capacity with Hytera Dual-Slot Pseudo Trunking and compatible with XPT and DMR Tier III (licenced)
Dust and waterproof, rated IP67, sustaining performance in harsh environments
Available as an optional extra, GPS for tracking and positioning also includes man down feature
Easy to grab and communicate instantly, with a large push-to-talk (PTT) and programmable emergency button
Emergency button, priority interrupt and lone worker features are provided as standard
General data | |
---|---|
Frequency Range | UHF1:400-470 MHz; UHF2:450-520 MHz; UHF3:350-400 MHz; UHF5:806-825 MHz(TX only) 851-870 MHz(TX&RX) 896-902 MHz(TX only) 935-941 MHz(TX&RX); VHF1:136-174 MHz; VHF3:210-270 MHz |
Channel Capacity | 1024 |
Zone Capacity | 16 |
Channel Spacing | 12.5 kHz/20 kHz/25 kHz |
Operating Voltage | 7.4 V(rated) |
Battery | 2000 mAh (Li-Ion)(Standard); 2500 mAh(Li-Ion)(Optional) |
Battey Life(5/5/90 Duty Cycle,High TX Power) | Analog/Digital:15.5 hours/20 hours |
Frequency Stability | ±0.5 ppm |
Antenna Impedance | 50 Ω |
Dimensions(H×W×D) mm | 125 mm × 55 mm × 35 mm |
Weight | 335 g |
Receiver | ||
---|---|---|
Sensitivity(Analog) | 0.18 μV(typical)(12 dB SINAD); 0.22 μV(12 dB SINAD) | |
Sensitivity(Digital) | 0.22 μV/BER5% | |
Adjacent Channel Selectivity | ETSI: 60 dB @ 12.5 kHz / 70 dB @ 20&25 kHz; TIA-603: 60 dB @ 12.5 kHz / 70 dB @ 20&25 kHz | |
Intermodulation | TIA-603:70dB; ETSI:65dB | |
Spurious Response Rejection | TIA-603:70dB; ETSI:70dB | |
Blocking | 84 dB | |
Hum&Noise | 40 dB @ 12.5 kHz ; 43 dB @ 20 kHz ; 45 dB @ 25 kHz ; | |
Rated Audio Power Output | 0.5 W | |
Rated Audio Distortion | ≤3% | |
Audio Response | +1 ~-3 dB | |
Conducted Spurious Emission | <-57 dBm |
Transmitter | ||
---|---|---|
RF Power Output | UHF1/UHF2/UHF3:4 W/1 W; VHF:5 W/1 W; UHF5:3 W/1 W (806-870 MHz) 2.5 W/1 W(896-941 MHz) | |
FM Modulation | 11K0F3E @ 12.5 kHz; 14K0F3E @ 20 kHz; 16K0F3E @ 25 kHz | |
4FSK Digital Modulation | 12.5 kHz Data & Voice:7K60FXW; 12.5 kHz Data Only:7K60FXD | |
Conducted/Radiated Emission | -30 dBm > 1 GHz; -36 dBm ≤1 GHz | |
Modulation Limiting | ±2.5 kHz @ 12.5 kHz; ±4.0 kHz @ 20 kHz; ±5.0 kHz @ 25 kHz; | |
FM Hum&Noise | 40 dB @ 12.5 kHz; 43 dB @ 20 kHz; 45 dB @ 25 kHz | |
Adjacent Channel Power | 60dB @ 12.5 kHz; 70dB @ 20/25 kHz | |
Audio Distortion | ≤3% | |
Digital Vocoder Type | AMBE+2™or SELP |
Environmental Specs | ||
---|---|---|
Operating Temperature | -30 ℃~+60 ℃ | |
Storage Temperature | -40 ℃~+85 ℃ | |
ESD | IEC 61000-4-2(level 4); ±15 kV(Air); ±8 kV(Contact) | |
Dust & Water Protection | IP67 | |
Humidity | MIL-STD-810 C/D/E/F/G | |
Vibration,Drop&Shock | MIL-STD-810 C/D/E/F/G |
Location Service | ||
---|---|---|
Horizontal Position Accuracy | <5 meters | |
Cold Start (Time to First Fix) | <1 minute | |
Hot Start (Time to First Fix) | <10 seconds | |
Note | Accuracy Specs are for long-term tracking (95th percentile values>5 satellites visible at a nominal-130 dBm signal strength) |
VHF(66-74MHz/1575MHz)20cm
VHF/GPS stubby antenna 150-170MHz/1575MHz, 12cm, SMA (female) -- for HP5, HP6, PD7 series and PD985
VHF/GPS helical antenna 160-174MHz/1575MHz, 17cm, SMA (female) -- for TC-7, BD, PD4, PD5, PD7, HP5, HP6 series and PD985
VHF(70-76MHz/1575MHz)20cm
VHF(74-88MHz/1575MHz)20cm
VHF(136-147MHz/1575MHz)12cm
VHF(136-147MHz/1575MHz)17cm
VHF(147-160MHz/1575MHz)12cm
VHF(147-160MHz/1575MHz)17cm
VHF(136-174MHz/1575MHz)20cm
VHF(150-165MHz/1575MHz)12cm
VHF(146-174MHz)15cm
VHF(160-174MHz/1575MHz)12cm
VHF(160-174MHz/1575MHz)17cm
UHF(400-470MHz)9cm
UHF(450-470MHz)9cm
UHF(440-470MHz)15.7cm
UHF(450-520MHz/1575MHz)9cm
Mobile radio GPS antenna
Mobile Radio GPS antenna
Vehicle Power Adapter
Charging adapter for wireless earpiece (ESW01)
Battery Adapter for MCA02 and MCA05
Switching Power Adapter(EU)
Switching Power Adapter(UK)
Switching Power Adapter(EU)
Desktop Switching Power Supply
Dual Pocket Charger Kit
Rapid-rate Charger
Multi-Unit Charger
Multi-unit Charger Unit
Multi-unit Charger for Li-ion Battery( 2A)
Switching Power Adapter(EU&UK)
Switching Power Adapter(EU)
Switching Power Adapter(UK)
PTT&MIC cable
External speaker with audio amplifier for Hytera car kits
Remote Speaker Microphone (designed for connection to Car Kit)
Cable Kit incl. Foot Switch to be used with car kit
Wireless Adapter
3-wire Surveillance Earpiece with Transparent Acoustic Tube(Beige)
3-wire Surveillance Earpiece with Transparent Acoustic Tube(Black)
Detachable Earpiece with Transparent Acoustic Tube
Receive-only Earpiece with Transparent Acoustic Tube
Heavy duty Noise-cancelling Headset
Receive-Only C-Style Earloop
Receive-Only Adjustable Earhook with Swivel Speaker
C-Earset
Swivel Earset
Receive-Only Earbud
Receive-Only Earpiece with Transparent Acoustic Tube
Earbud
Wireless Earset Kit
2-wire Earpiece with Wireless Earphone and Neck Loop(Beige)
Neckloop Inductor for Wireless Earpiece
Ear Canal Wireless Receiver
Waterproof Remote Speaker Microphone(IP67)
Waterproof Remote Speaker Microphone(IP67)
Waterproof Remote Speaker Microphone(IP54)
Wireless PTT
Wireless Remote Speaker Microphone
