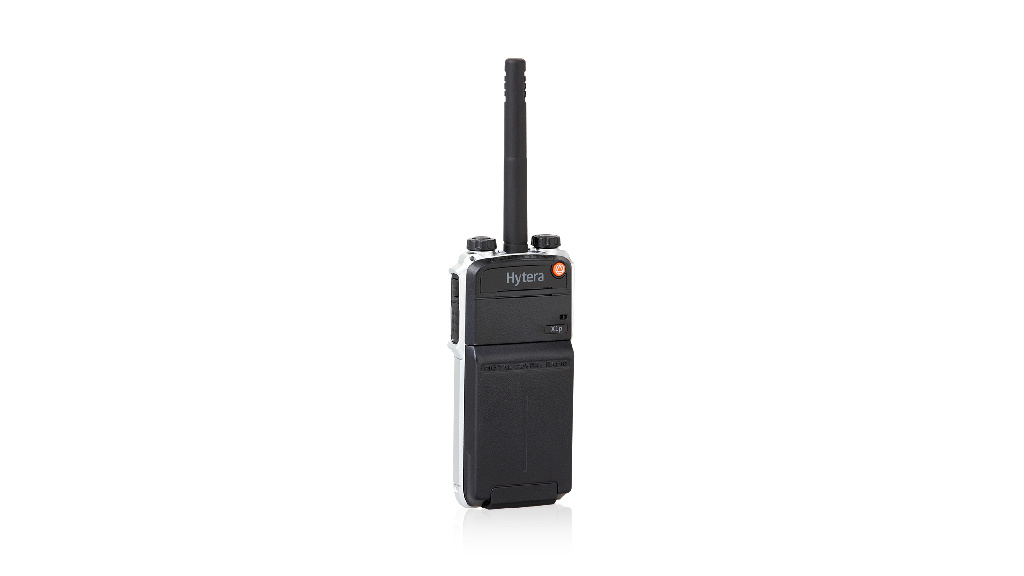

X1P Ultra-thin, discreet digital two-way radio

Handheld | DMR

Slim and lightweight, the Hytera X1p handheld digital two-way radio offers the perfect combination of ruggedness, versatility and refined design with LCD screen and keypad to enable advanced covert communications.

Highlights of X1p

LONE WORKER

The lone worker feature uses a timer in the radio to measure inactivity. If the timer expires, a warning is issued, and if there is no response to that, the alarm is triggered.

MAN DOWN

The man down feature will let you know if the radio has been tilted past a certain angle. This may happen for instance if the radio user has fallen over or is unconscious or injured. The alarm will be triggered after a warning is issued to the user.

GPS

Enabling location based services to improve safety and control.

EMERGENCY MODE

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm. Also receive emergency notifications.

BLUETOOTH AUDIO

Wireless connectivity to optional audio devices including covert earpieces to improve user experience.

PSEUDO TRUNKING

Using pseudo-trunking, a Hytera patented technology, slots can be shared to improve capacity usage with transmissions either direct to handset or to repeater.

XPT

Hytera XPT (Extended Pseudo Trunking) enables you to use limited spectrum resources more efficiently, dynamically assigning channel resource without needing a dedicated control channel.

Specifications of X1p

General data
Receiver
Transmitter
Environmental Specs
Location Service

General data
Frequency Range	UHF1: 400-470 MHz; UHF2: 450-520 MHz; UHF3: 350-400 MHz; UHF5: 806-941 MHz; VHF: 136-174 MHz
Channel Capacity	1024
Zone Capacity	64
Channel Spacing	12.5 kHz/20 kHz/25 kHz
Operating Voltage	7.4 V(rated)
Battery	1100 mAh (Li-Ion); 1400 mAh (Li-Ion); 1800 mAh (Li-Ion)
Battey Life(5/5/90 Duty Cycle,High TX Power)	12 hours/15 hours (1800 mAh); 7 hours/10 hours (1100 mAh); 9 hours/12 hours (1400 mAh); Analog/Digital:
Frequency Stability	±1.5 ppm
Antenna Impedance	50 Ω
Dimensions(H×W×D) mm	120 mm × 57 mm × 26 mm (1800 mAh); 120 mm × 57 mm × 23 mm (1400 mAh); 120 mm × 57 mm × 21 mm (1100 mAh)
Weight	252 g (1100 mAh); 265 g (1400 mAh); 287 g (1800 mAh)
Display	LCD Display:160×128 pixel，65536 colours，1.8 inch，6 rows

Receiver
Sensitivity(Analog)	0.22 μV(typical)(12 dB SIN AD); 0.3 μV(12 dB SIN AD); 0.4 μV(20 dB SIN AD);
Sensitivity(Digital)	0.3 μV/BER 5%
Adjacent Channel Selectivity	ETSI: 60 dB @ 12.5 KHz / 70 dB @ 20&25 KHz; TIA-603: 60 dB @ 12.5 kHz / 70 dB @ 20&25 kHz
Intermodulation	TIA-603: 70 dB; ETSI: 65 dB
Spurious Response Rejection	TIA-603: 70 dB; ETSI: 65 dB
Blocking	84 dB
Hum&Noise	40 dB @ 12.5 kHz ; 43 dB @ 20 kHz ; 45 dB @ 25 kHz
Rated Audio Power Output	0.5 W
Rated Audio Distortion	≤3%
Audio Response	+1 ～-3 dB
Conducted Spurious Emission	<-57 dBm

Transmitter
RF Power Output	UHF1/UHF2/UHF3: 4 W/1 W; UHF5: 3.0 W/1 W @806-870MHz, 2.5 W/1 W @896-941MHz; VHF: 5 W/1 W
FM Modulation	11K0F3E @ 12.5 kHz; 14K0F3E @ 20 kHz; 16K0F3E @ 25 kHz
4FSK Digital Modulation	12.5 KHz Data Only: 7K60FXD; 12.5 KHz Data & Voice: 7K60FXW
Conducted/Radiated Emission	-30 dBm > 1 GHz; -36 dBm ≤1 GHz
Modulation Limiting	±2.5 kHz @ 12.5 kHz; ±4.0 kHz @ 20 kHz; ±5.0 kHz @ 25 kHz
FM Hum&Noise	40 dB @ 12.5 kHz; 43 dB @ 20 kHz; 45 dB @ 25 kHz
Adjacent Channel Power	60 dB @ 12.5 kHz; 70 dB @ 20/25 kHz
Audio Distortion	≤3%
Digital Vocoder Type	AMBE+2™ or SELP

Environmental Specs
Operating Temperature	-30 ℃～+60 ℃
Storage Temperature	-40 ℃～+85 ℃
ESD	IEC 61000-4-2（level 4）; ±15 kV（Air）; ±8 kV（Contact）
Dust & Water Protection	IP67
Humidity	Per MIL-STD-810 C/D/E/F/G
Vibration,Drop&Shock	Per MIL-STD-810 C/D/E/F/G

Location Service
Horizontal Position Accuracy	<10 m (95% probable); <5 m (50% probable)
Cold Start (Time to First Fix)	<1 minute
Hot Start (Time to First Fix)	<10 seconds
Note	Accuracy Specs are for long-term tracking(95th percentile values>5 satellites visible at a nominal-130dBm signal strength)
