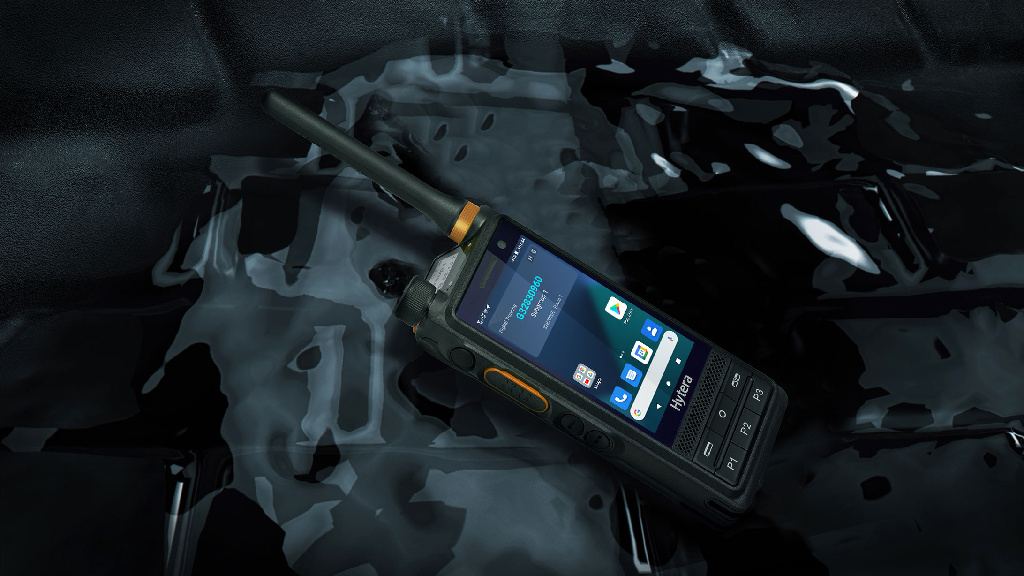

Hytera PDC680 dual-mode rugged radio combines a mission-critical DMR radio with an Android-based smartphone in a single device. It harnesses the power of narrowband and broadband technologies to provide mission-critical voice call, photo and video taking, positioning, and more. This innovative radio enables seamless communications between DMR network and public network such as 2G, 3G, LTE, and WLAN.
General | |
---|---|
Dimensions (H x W x D) | 140 x 60 x 29.1mm |
Weight (with antenna & battery) | 325±5g |
AP Processor | 8-core, 1.8GHz |
Operating System | Android 10 |
Google Certification | Google Mobile Services |
Memory | RAM: 3GB; ROM: 32GB eMMC, Supports up to 256GB with Micro SD card |
Ports | 13PIN Accessory/Charging Port |
Top Screen | 0.92"128x88 Colour: black & white |
Main Screen | 3.6" 1280x720, Capacitive, Touch Screen, Gloves Proofed, Passive Stylus |
Card Slots | 2 Nano SIM cards 1 Micro SD card 1 Encryption card |
Front Camera | 8MP, Fixed Focus |
Rear Camera | 13MP, Auto Focus |
Sensors | Proximity Sensor Ambient Light Sensor 6-axis sensor (accelerometer + gyroscope) Magnetometer Accelerometer |
Wireless Data Communication | ||
---|---|---|
DMR/Analogue | 340-470MHz | |
LTE | 3GPP LTE FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28 TDD-LTE: B34/B38/B39/B40/B41 | |
CDMA | CDMA 1xRTT BC0 CDMA2000 1xEV-DO BC0 | |
WCDMA | B1/B2/B4/B5/B8 | |
TD-SCDMA | B34/B39 | |
GSM | 850/900/1800/1900MHz | |
WLAN | 802.11 a/b/g/n/ac, 2.4GHz/5GHz | |
NFC (Optional) | 13.56MHz | |
BT | V4.2, BDR/EDR/BLE | |
Positioning | GPS/BDS/GLONASS/Galileo/QZSS/A-GPS Position performance for open zone : TTFF (Cold boot)< 1minute Horizontal position accuracy < 10meters |
Transceiver | ||
---|---|---|
Channel Spacing | 25/20/12.5kHz | |
TX Power | 1W/3W (Analogue) 1W/4W (DMR) | |
RX Sensitivity | 0.2uV/-121dBm (12dB SINAD) 0.16uV/-123dBm (12dB SINAD) (Typical) 0.2uV/-121dBm @BER5% | |
Inter-modulation | TIA-603: 70dB@12.5/20/25kHz ETSI: 65dB@12.5/20/25kHz | |
Blocking | 84dB | |
Suppression of Spurious Response | TIA_603: 70dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHz | |
Adjacent Channel Selectivity | TIA_603: 60dB@12.5kHz/70dB@20/25kHz ETSI: 60dB@12.5kHz/70dB@20/25kHz | |
Frequency Stability | ±0.5ppm |
Battery | ||
---|---|---|
Standard | 2400 mAh Li-polymer, 7.7V (Rated) | |

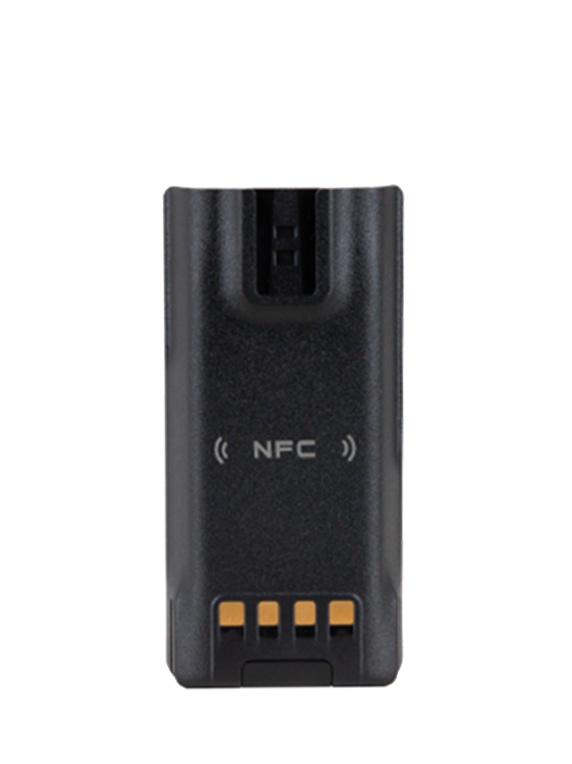

Optional High Capacity | 4000 mAh, 7.7V (Rated) |
Video and Photo | ||
---|---|---|
Video File Types | 3GPP(.3gp), MPEG-4(.mp4) QuickTime(.mov), WEBM(.webm), Windows Media(.asf,.wmv), RealMedia(.rmvb, .rm) MPEG-PS(.mpg, .mpeg), MPEG-TS(.ts), AVI(.avi), Matroska(.mkv) | |
Image File Types | JPEG(.jpg), GIF(.gif ), PNG(.png), BMP(.bmp) | |
Video Recording Quality | Front Camera: 1080P HD up to 30 frames per second (fps) Rear Camera: 1080P HD up to 30 frames per second (fps) |
Audio | ||
---|---|---|
File Types | MP3(.mp3), WAV(.wav), 3GPP(.3gp), MPEG-4(.mp4,.m4a), ATDS raw AAC(.aac), MPEG-TS(.ts), FLAC(.flac), MIDI(.midi, .xmf, .mxmf ), RTTTL/RTX(.rtttl, .rtx), OTA(.ota), iMelody(.imy), Ogg(.ogg), Matroska(.mka), QCELP(.qcp), RealMedia(.ra), Windows Media(.wma), AC3(.ac3) | |
Audio Output | 2W | |
Audio Distortion | ≤3% | |
Digital Vocoder Type | AMBE+2™ |
Environment | ||
---|---|---|

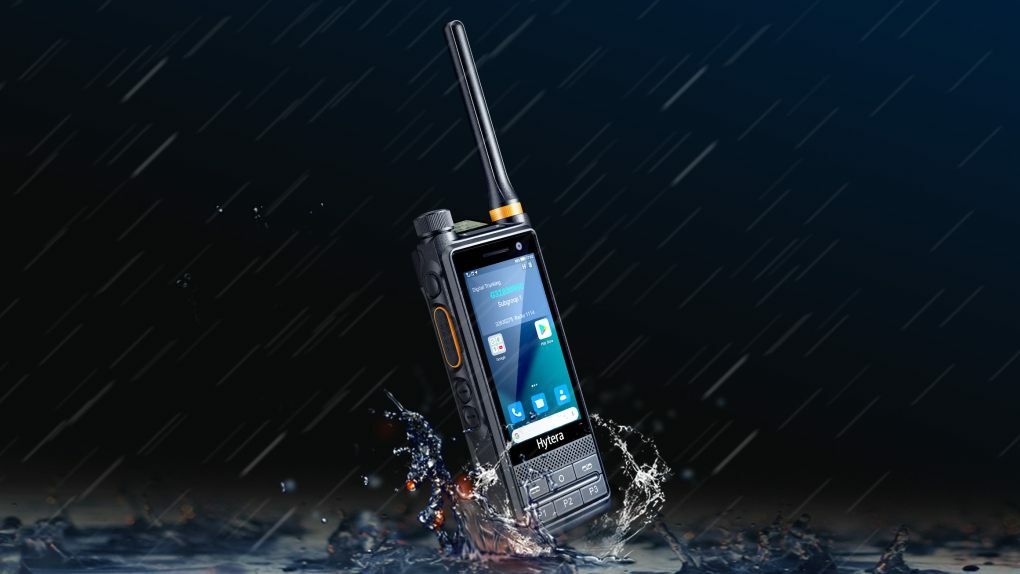

Dust and Water Proofing | IEC60529- IP68 (2m, 4h), IEC60529- IP66 | |
Shock and Vibration | MIL-STD-810G | |
Humidity | MIL-STD-810G, ≤ +65°C,95%RH | |
ESD | IEC 61000-4-2 (Level 4), ±8kV (Contact), ±15kV (Air) | |
Operating Temperature | -20°C - +60°C | |
Storage Temperature | -30°C - +80°C |
* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
Multi-unit Charger for Li-ion Battery( 2A)

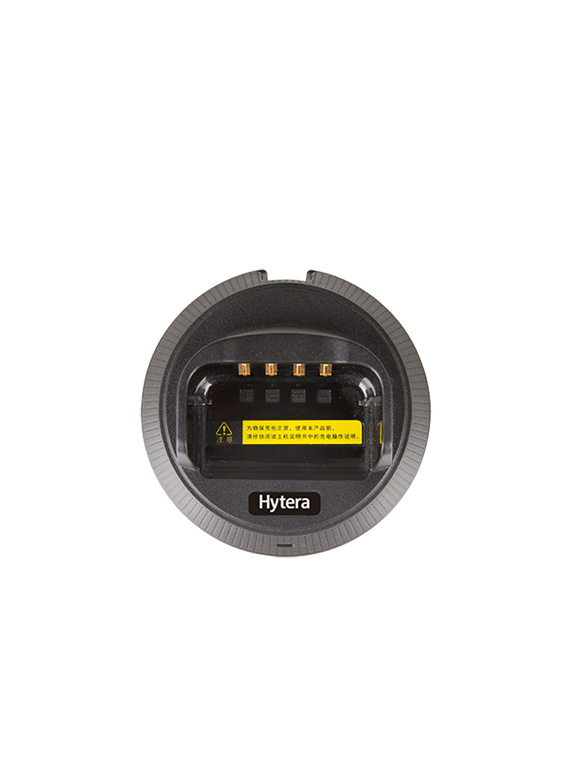

Desktop Charger
Switching Power Adapter(UK)
Switching Power Adapter(AU)
Power Adapter for Rapid Charger (Euro standard plug) -- EOL, replaced by PS1044
UK/EU/AU-standard Switching Power Adapter 12V/2A
AC Plug for Switching Power Adapter (EU-standard)
AC Plug for Switching Power Adapter (UK-standard)
Double PTT BT Earpiece
BT earpiece
Waterproof Remote Speaker Microphone(IP67)
3-wire Surveillance Earpiece with Transparent Acoustic Tube(Beige)
2-wire Surveillance Earpiece with Transparent Acoustic Tube(Beige)
Receive-only Earpiece with Transparent Acoustic Tube
Heavy duty Noise-cancelling Headset
Receive-Only C-Style Earloop
Receive-Only Adjustable Earhook with Swivel Speaker
C-Earset with in-line MIC
Receive-Only Earbud
Wireless PTT
Waterproof Remote Speaker Microphone(IP54)
Wireless Remote Speaker Microphone
VHF(136-145MHz/1575MHz)9cm
VHF(144-154MHz/1575MHz)9cm
VHF(153-164MHz/1575MHz)9cm

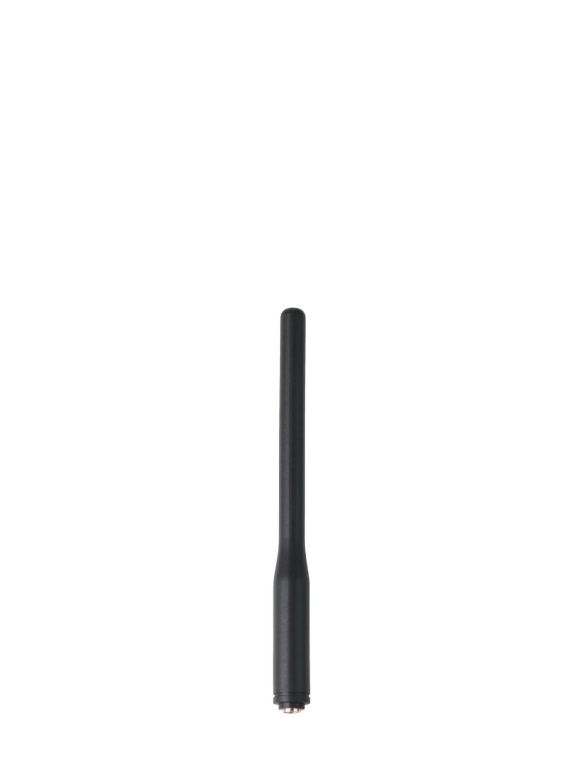

VHF/LTE thick long antenna 150-174MHz/698-870MHz, 17 cm, SMA (male) -- for PDC680
VHF(163-174MHz/1575MHz)9cm

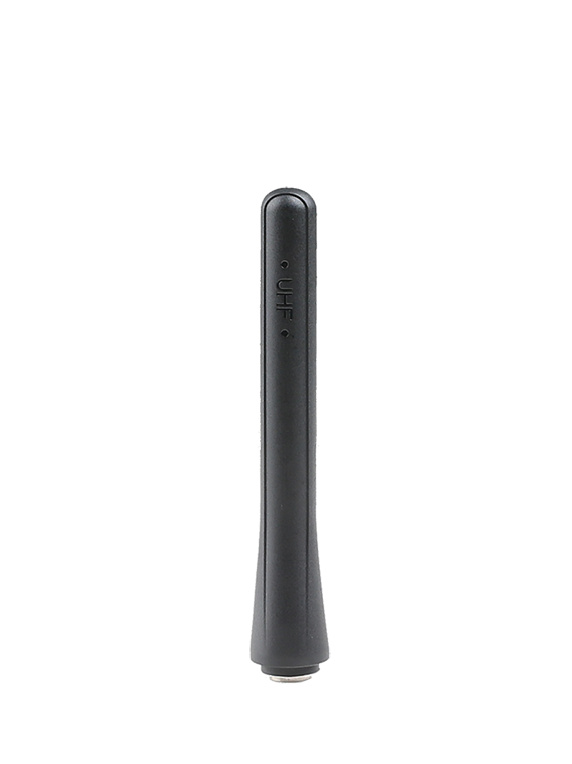

UHF(350-400MHz/1575MHz)9cm
