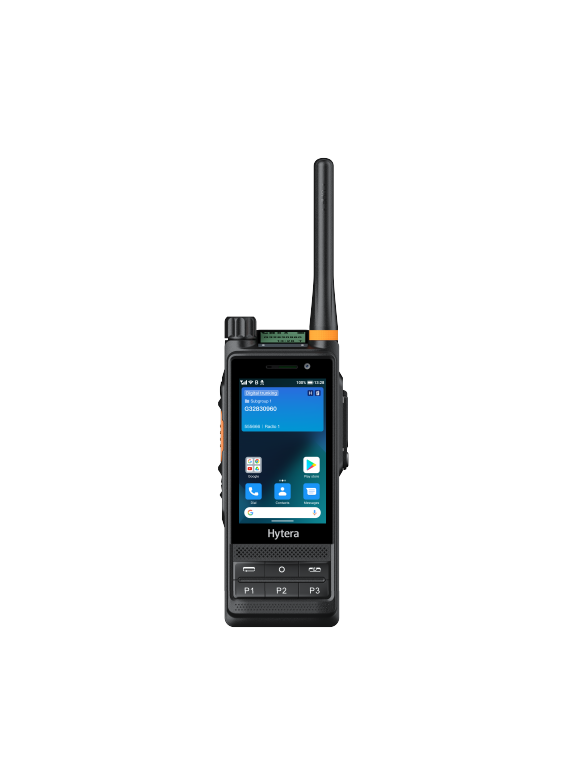

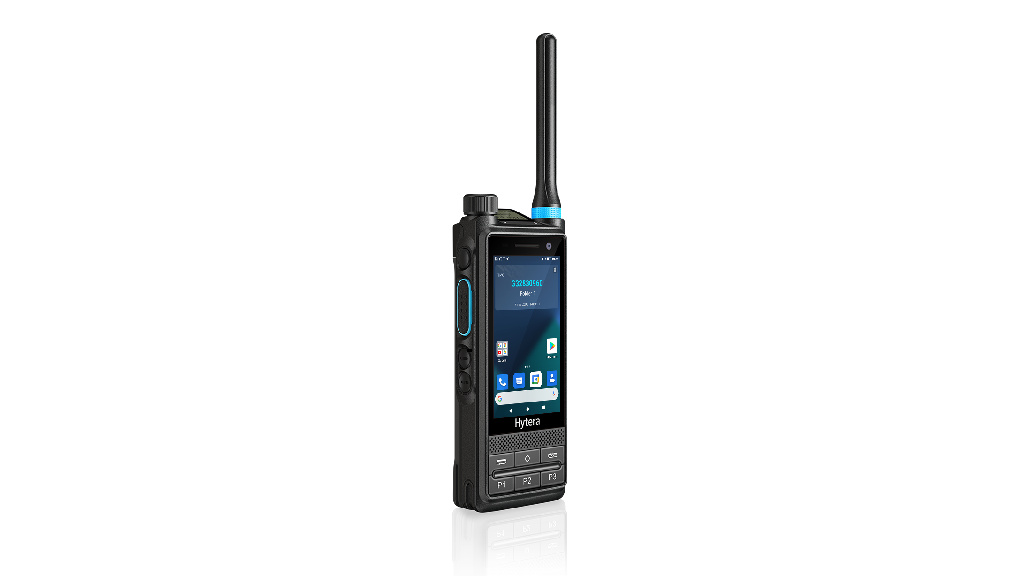

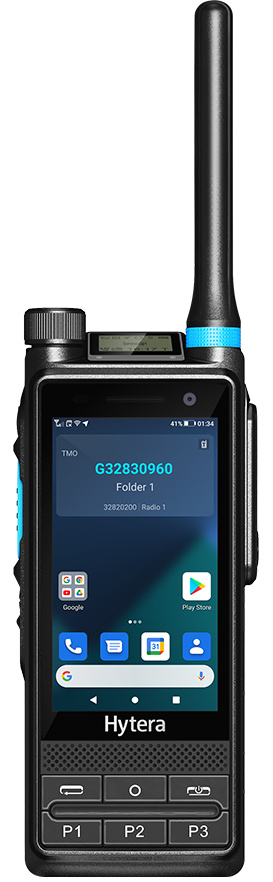

PTC680 Multi-mode Advanced Radio

Handheld | LTE | TETRA

Combining a mission-critical radio and smartphone into a single device, the compact and ergonomic PTC680 A10 (Android and PMR) provides diverse features including voice, HD photo and video capture, and broadband voice services that enables the user to carry out multiple critical tasks simultaneously and efficiently. This device also fully supports all TETRA features.

Highlights of PTC680

CRYSTAL CLEAR AUDIO

The PTC680 uses patented enlarged front chamber technology and has a professional acoustic design to provide up to 128dB of loudness. Multi-mic Noise Reduction, Wind Noise Suppression, Echo Cancellation are used to compete with the background noise in any environment. Therefore, the audio is always crystal clear.

FLEXIBLE CONNECTIVITY

PTC680 supports wired PIN connection and connections over WiFi, BT and NFC to a wide range of audio accessories, making it optimum for the frontline operatives to use their radios with higher efficiency.

COMPACT AND LIGHT WEIGHTED

Although the PTC680 combines a mission-critical radio and a smartphone into a single device, it is fully TETRA trunking functional to support all TETRA features with only 325g in weight, easy to carry and wear, and also provides intuitive controls to help users get in touch as soon as possible and, perform various programmable features to different missions. It has 6cm in width with big rounded corner on the back to deliver an unrivalled tactile feedback for palmfitted one hand operation.

ALL-ROUND SECURITY ASSURANCE

Multiple defensive mechanisms have been built to the PTC680 to safeguard your mission-critical communications. Signature authentication and preconfigured Se Android security strategy utilized to ensure the system security. All static user data is full-disk encrypted, while E2EE and AIE are used to secure data transmission. The management to PTC680 is based on industry standards to make the radio in complete control.

ADVANCED GLOBAL POSITIONING

The PTC680 uses five GNSS (Global Navigation Satellite System) and A-GNSS* (Assisted Global Navigation Satellite System) to make quick and accurate positioning in open outdoor areas, while Location-based Service (LBS) or WiFi when moving to buildings or areas not covered by GNSS, enabling the track to the user and device all the time.

MULTIMEDIA GATHERING

Thanks to the high definition cameras and large screen, the frontline operatives now can use PTC680 to clearly capture critical photographic evidence or record the important moments during the mission. Don’t worry about the space, because the PTC680 has a large-capacity memory for storage, in addition, a micro SD

COMPLETE CONTROL VIA SMART MDM

Smart MDM is the system to remotely manage your PTC680 in batch. It takes 5 minutes only to wirelessly program 100 radios, which saves 95% of time compared with wired programming. Stay in complete control over the radio with many other features for example remote firmware and software upgrades, multi-command, feature and application permissions, over-the-air wipe and lock capability, data backup and recovery.

EFFICIENT API FOR NARROWBAND

The PTC680 has standard android API for custom development of PMR features to match different requirements. The custom applications can be better shown and performed on its large screen.

Compact and Lightweight

Only 325g in weight, easy to carry and wear

Crystal Clear Audio

Enlarged front chamber (patented) and professional acoustic design to provide up to 128dB of sound

Full Trunking Capabilities

Support group call, broadcast call, DGNA, packet data, authentication, over-the-air encryption and end-to-end encryption

Specifications of PTC680

Standard Functions and Frequency Range
General Data
Transceiver
Environmental Specs

Standard Functions and Frequency Range
Narrow Band	350-475MHz
LTE	3GPP LTE; FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28; TDD-LTE: B38/B39/B40/B41
CDMA	CDMA 1xRTT BC0; CDMA2000 1xEV-DO BC0
WCDMA	B1/B2/B4/B5/B8
TD-SCDMA	B34/B39
GSM	850/900/1800/1900 MHz
WLAN	802.11 a/b/g/n/ac，2.4 GHz/5 GHz
NFC	13.56 MHz
BT	V4.2，BDR/EDR/BLE
Positioning	GPS/BDS/GLONASS/Galileo/QZSS/A-GPS; Position performance for open zone： TTFF（Cold boot）< 1minute; Horizontal accuracy < 5m (95% probable at -130dBm)

General Data
Dimensions(H×W×D) mm	140 mm x 60 mm x 29.1 mm
Weight	325±5 g
Operating System	Android 10.0
Peripheral Interface	13PIN Accessory/Charging Port
Display	Top Screen:0.92” 128x88 Color: black & white; Main Screen: 3.6" 1280x720, Color depth: 24bit; Capacitive, Touch Screen, Gloves Proofed, Passive Stylus
Card Slots	2x Nano SIM card; 1x Micro SD card; 1x Encryption card for narrowband
Camera	Front: 8MP, fixed focus; Rear: 13MP, auto focus
Battery	2400 mAh Li-polymer, 7.7V(Rated);4000 mAh Li-polymer, 7.7V(Optional)

Transceiver
Channel Spacing	25 kHz
TX Power	3W(Class 3) ; 1.8W(Class 3L) ; 1W(Class 4)

Environmental Specs
ESD	IEC 61000-4-2 (Level 4), ±8 kV (Contact), ±15 kV (Air)
Dust & Water Protection	IEC60529- IP68 (2m, 4h), IEC60529- IP66
