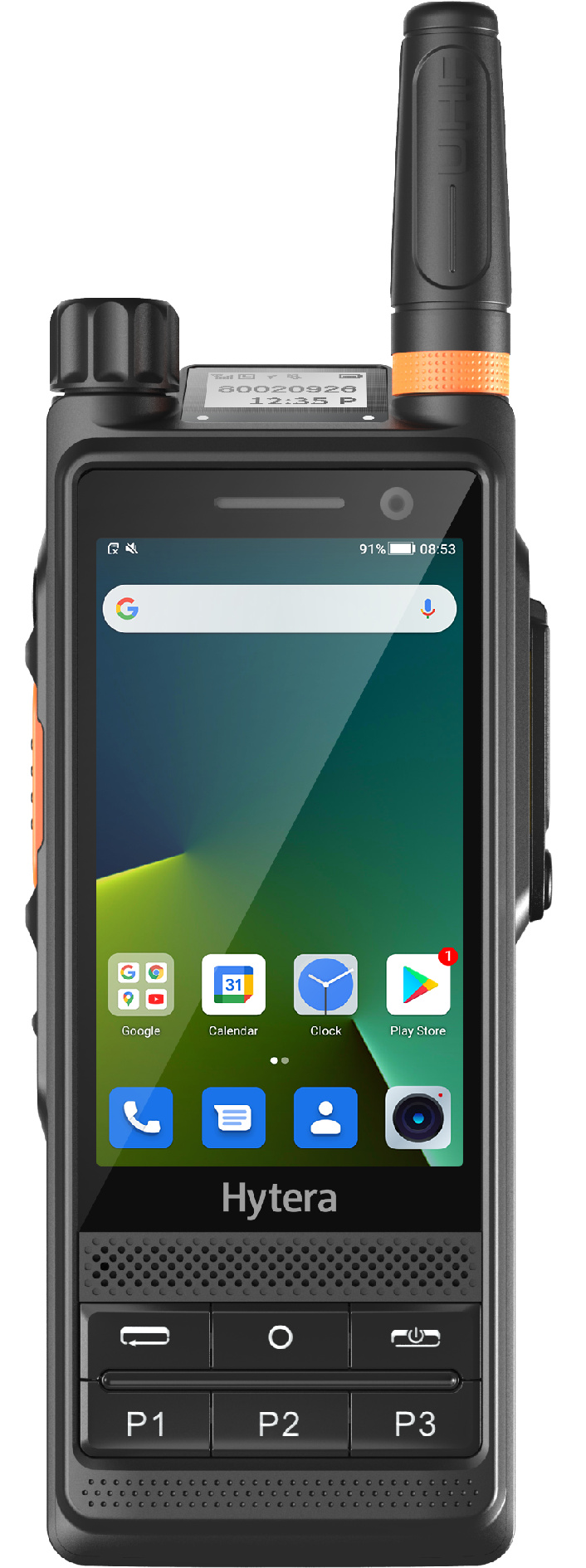

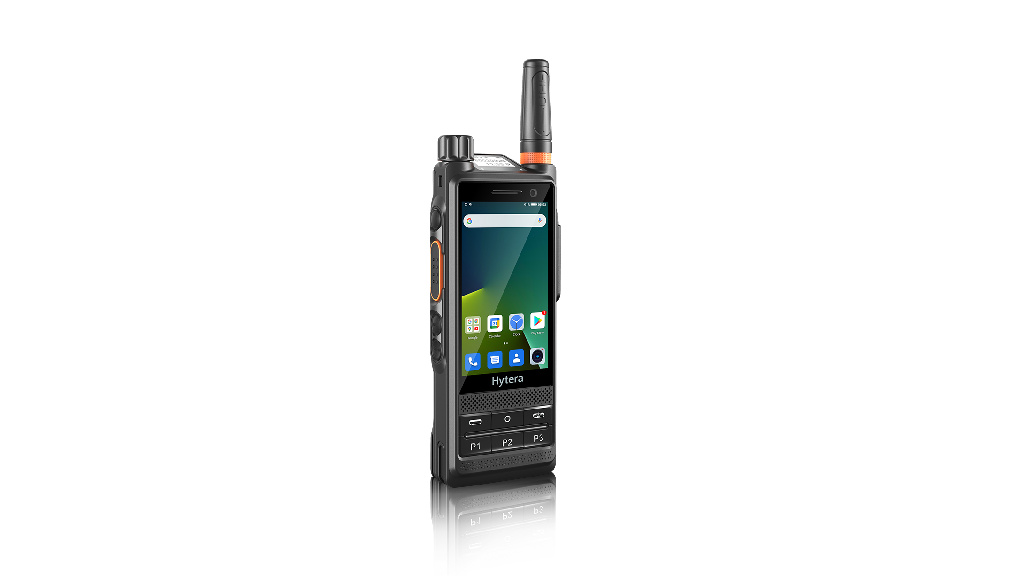

The PDM680 Rugged MCS radio

Name: The PDM680 Rugged MCS radio
Brand: Hytera
Availability: InStock

Handheld | LTE | DMR

The PDM680 Rugged MCS Radio is designed to help first responders stay connected and informed anywhere and anytime in critical situations. As a professional rugged radio, the PDM680 delivers reliable mission-critical voice communications, and mission-critical video and data services for those working in the most challenging conditions. In addition to the “on-network” operation, the PDM680 supports Digital Mobile Radio (DMR) Tier 2 and device-to-device (D2D) communications that allow the first responders to communicate without relying on the LTE network. The PDM680 is the best choice for those engaged in public safety, utilities, transportation, and more.

BP2402 MSDS

Highlights of PDM680

PROFESSIONAL MCS RADIO

Compliant with 3GPP MCS, the PDM680 delivers MCPTT, MCVideo, and MCData services to ensure mission critical communications for public safety. The PDM680 is equipped with a native Hytera HyTalk MC app - a 3GPP-compliant MCS solution.

D2D COMMUNICATION

Built with Digital Mobile Radio (DMR) technology, the PDM680 can provide D2D communications where LTE connectivity is unavailable. Moreover, the PDM680 features MCS-DMR Simulcall to call both MCS devices and DMR radios at the same time.

RUGGED AND DURABLE

The streamlined and intuitive user interface enables quick access to critical information. The radio's IP68 rating means it can handle dust and drops of up to 1.5 meters without a case, and its MIL-STD 810H certification makes it reliable in extreme environments.

BEST-IN-CLASS AUDIO QUALITY

The PDM680 audio can reach a maximum SPL of 118 dB. Even at 30 cm away from the sound source, the loudness level is as high as 98 dBPhon. Moreover, AI-based noise cancellation technologies minimize the background noise and boost the audio clarity.

POWERED BY ANDROID

With GMS certified Android platform, the PDM680 is compatible with various third-party applications to enhance productivity. PDM680 is equipped with a 13-Pin connector and USB Type-C port for reliable connection and charging. And the radio supports WLAN, BT, and NFC (optional).

ALL-ROUND SECURITY ASSURANCE

Signature authentication ensures system security. All data at rest is full-disk encrypted, while E2EE protects the data and voice in transit. The industry-leading remote management puts the radio in complete control.

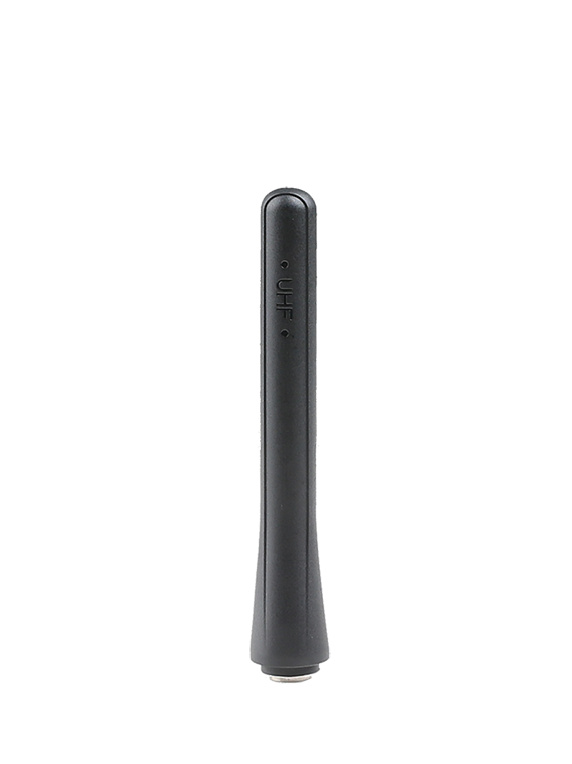

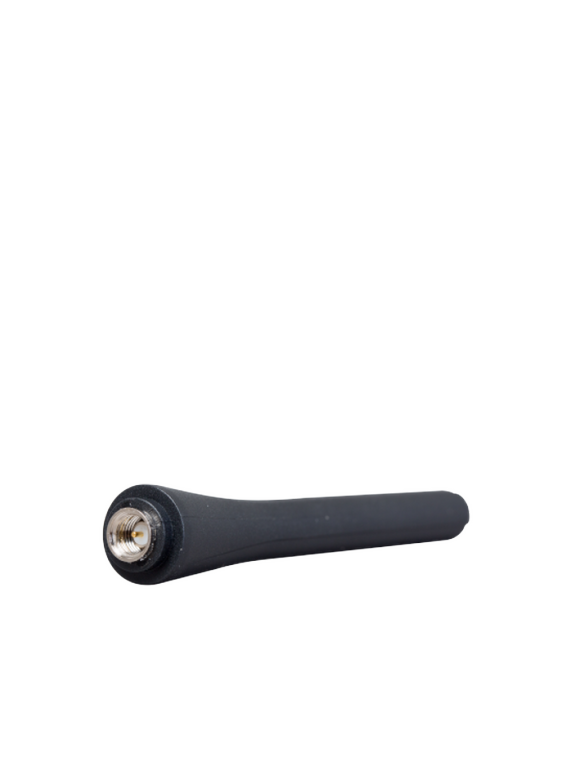

Antenna

4.5 cm long, more convenient to carry

Smart Knob

Volume/channel/contact

Dual Cameras

Rear 16 MP, front 8 MP

2 Programmable Keys

Dual Screens

Tilt top screen, HD main screen

3 Programmable Keys

Specifications of PDM680

Wireless Data Communication
General
Transceiver
Video and Imaging
Audio
Environmental

Wireless Data Communication
Narrow Band	UHF:340~470MHz
CDMA	CDMA 1xRTT BC0; CDMA2000 1xEV-DO BC0
WCDMA	B1/B2/B4/B5/B8
TD-SCDMA	B34/B39
GSM	850/900/1800/1900MHz
WLAN	IEEE 802.11 a/b/g/n/ac, 2.4 GHz/5 GHz
NFC	13.56MHz
Positioning	GPS/BDS/GLONASS/Galileo/QZSS/A-GPS/NLP; In open areas:; Time to first fix (cold start) < 60s; Time to first fix (hot start) < 10s; Horizontal accuracy ≤ 2 m, > 5 SVs, –130 dBm, CEP (50%)

General
Dimensions(H×W×D) mm	145.7 mm x 60 mm x 29.1 mm (with standard battery); 145.7 mm x 60 mm x 33.1 mm (with optional battery)
Weight	328±5 g (with standard battery and antenna);373±5 g (with optional battery and antenna)
Operating System	Android 10.0
Processor	8-core, 2.2 GHz
Memory	RAM: 4 GB; ROM: 64 GB eMMC; Micro SD card: 256 GB (max.)
Sensors	Proximity sensor; Ambient light sensor; 6-axis sensor (accelerometer + gyroscope); Geomagnetic sensor; Acceleration sensor
Peripheral Interface	USB Type-C port, USB2.0;13-Pin accessory interface
Display	Main Screen Size: 3.6 inches;Resolution: 1280 x 720;Pixel depth: 24 bits;Capacitive touchscreen, supporting operations with gloves and capacitive stylus; Top Screen:Size: 0.92 inch Resolution: 128
Card Slots	2x Nano SIM card; 1x Micro SD card; 1x Encryption card for narrowband
Camera	Front: 8MP Rear: 16MP
Operating Voltage	7.7V(Rated)

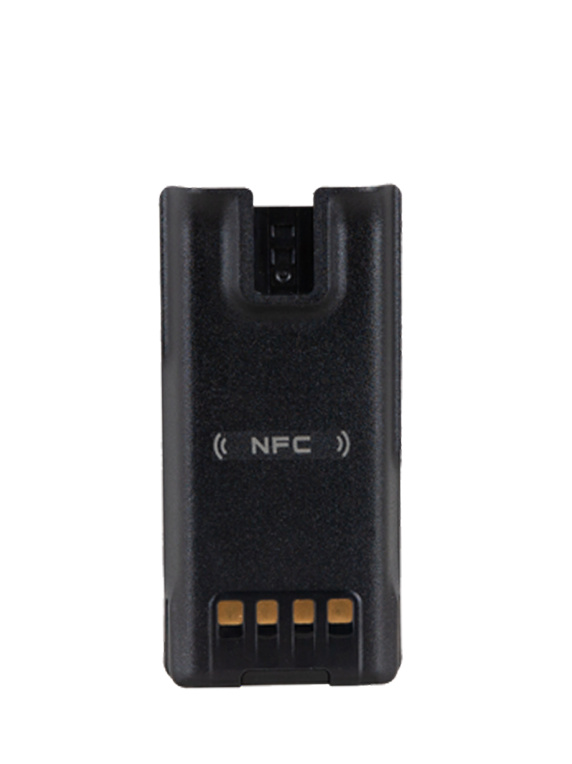

Battery	Standard:2400 mAh Li-polymer;Optional: 4000 mAh Li-polymer

Transceiver
TX Power	1W/4W
Audio Power Output	Audio power: 2 W Audio distortion: ≤ 3% Audio loudness: 118 dBSPL at 5 cm, 98 dBPhon at 30 cm

Video and Imaging
Video File Types	3GPP(.3gp),MPEG-4(.mp4),QuickTime(.mov),WEBM(.webm),Windows Media(.asf,.wmv),RealMedia(.rmvb,.rm),MPEG-PS(.mpg,.mpeg),MPEG-TS(.ts),AVI(.avi),Matroska(.mkv)
Image File Types	JPEG(.jpg),GIF(.gif),PNG(.png),BMP(.bmp)
Video Recording Quality	Front camera: 1080P HD, 30 fps Rear camera: 4K; 1080P HD, 30 fps

Audio
File Types	MP3(.mp3), WAV(.wav), 3GPP(.3gp), MPEG-4(.mp4,.m4a), ; ATDS raw AAC(.aac), MPEG-TS(.ts), FLAC(.flac), ; MIDI(.midi,.xmf,.mxmf), RTTTL/RTX(.rtttl,.rtx),OTA(.ota), ; iMelody(.imy), Ogg(.ogg), Matroska(.mka), QCELP(.qcp), ; RealMedia(.ra), Windows Media(.wma), AC3(.ac3)

Environmental
Operating Temperature	-20℃ ~ +60℃
Storage Temperature	-30℃~ +80℃
ESD	IEC 61000-4-2 (Level 4); ±8 kV (Contact); ±15 kV (Air)
Dust & Water Protection	IEC60529-IP68
Humidity	Per MIL-STD 810 G，≤ +65℃，95%RH
Vibration,Drop&Shock	MIL-STD-810H

* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
