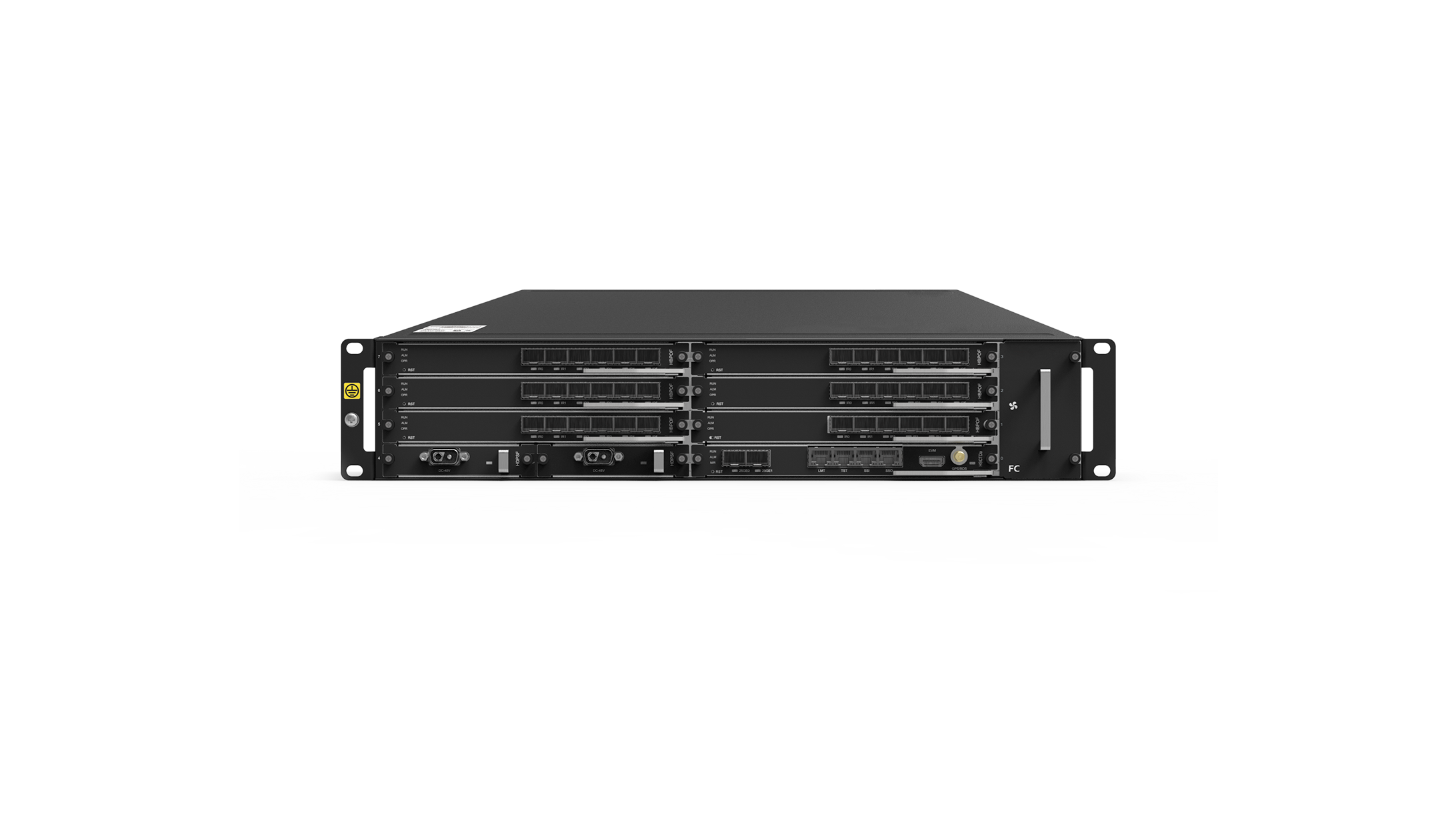

BBU5700M

4G/5G Dual-mode BBU

5G-LTE | BBU

BBU5700M is a 4G&5G dual-mode BBU. With modular stack design, it supports 5 NR, LTE FDD, TDD, and NB-IoT simultaneously. With full configuration (6 Basebands) maximum 36 LTE cells can be afforded. LTE-A features (such as Carrier Aggregation, High Order MIMO, CoMP, etc.) are supported. For 5G architecture, NSA & SA can be supported both. And up to 18 NR cells can be afforded.

Highlights of BBU5700M

High capability

Modular stack design. Support TD-LTE/LTE FDD/NB-IoT/NR.

Large capacity

Support TD-LTE 36*20M / LTE FDD 36*20M / NR 18*100M 64TR.

Highly integrated

2U, 19”.

LTE-A features

CA, COMP, MIMO, etc.

Synchronization modes

GPS, Beidou, 1588v2.

Specifications of BBU5700M

Dimension 88 × 440 × 360 mm
Weight 21Kg
Power Consumption 350W (S111)
Power Supply -48V DC (-57V ~ -40V)
Capacity (cell) LTE TDD 36x20MHz LTE FDD 36x20MHz NR 18×100M 64TR
Cell User Number RRC connected user: 1200 / cell RRC active user: 400 / cell
Synchronization Beidou / GPS / 1588v2
MTBF ≥200,000 Hours
MTTR ≤0.5 Hour
Temperature Long-term: -5°C ~ +55°C Short-term: -20°C ~ +70°C
Moisture Long-term: 15%~85% Short-term: 5%~95%

* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
