IBS3900

4G Micro-Cell One-Box

5G-LTE | One-box Base Station

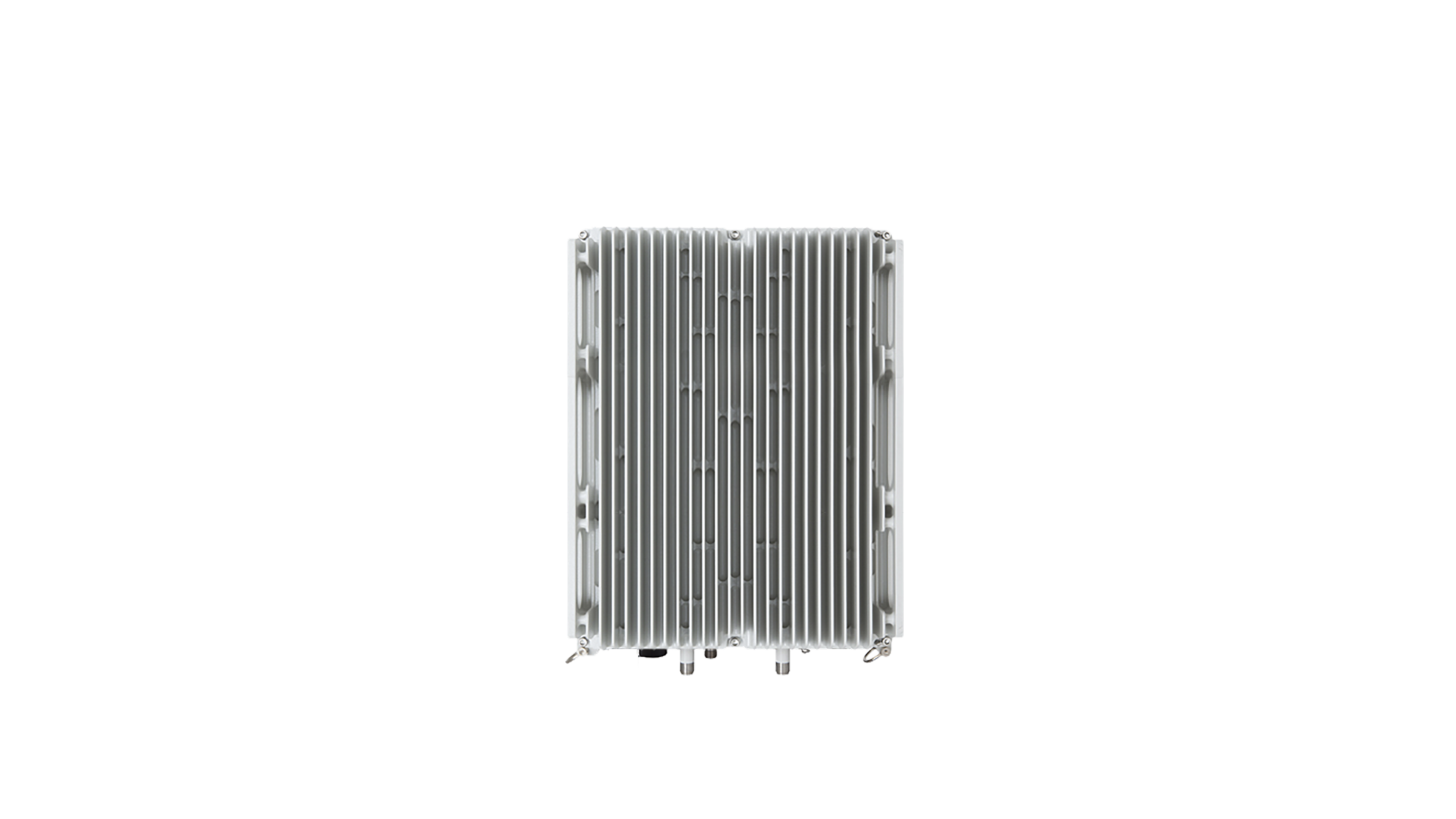

IIBS3900 is an integrated, high-power cellular base station connected to the EPC core network through fixed-line broadband to provide users with LTE service. The product can meet the application scenarios of weak signal coverage and macro network traffic sharing in residential communities, hotspots, and rural areas.

Highlights of IBS3900

Highly integrated

Adopt baseband and RF integrated design, highly integrated.

High capability

Support 5MHz, 10MHz, 15MHz, and 20MHz working bandwidth.

Large capacity

Achieve precise coverage and quickly increase the capacity of the existing network.

Flexible deployment

Support convenient networking, flexible and rapid deployment. SON function is supported.

High protection

Natural cooling, low noise and more environmentally friendly. IP65, suitable for harsh environments.

Specifications of IBS3900

Frequency B1/B3/B7
Peak throughput FDD: DL 200Mbps (256QAM)/UL 75Mbps (64QAM); TDD: DL 140Mbps (256QAM, SF2)/UL 30Mbps (64QAM, SF1)
Maximum users VoLTE user: 64; RRC active user: 128; RRC connective user: 384
MIMO 2T2R
RF power 2*40W
Volume 17L (typ.)
Weight 16Kg (typ.)
Power supply -48V DC
Consumption <350W
