ACN-01

PTT&MIC cable

Audio

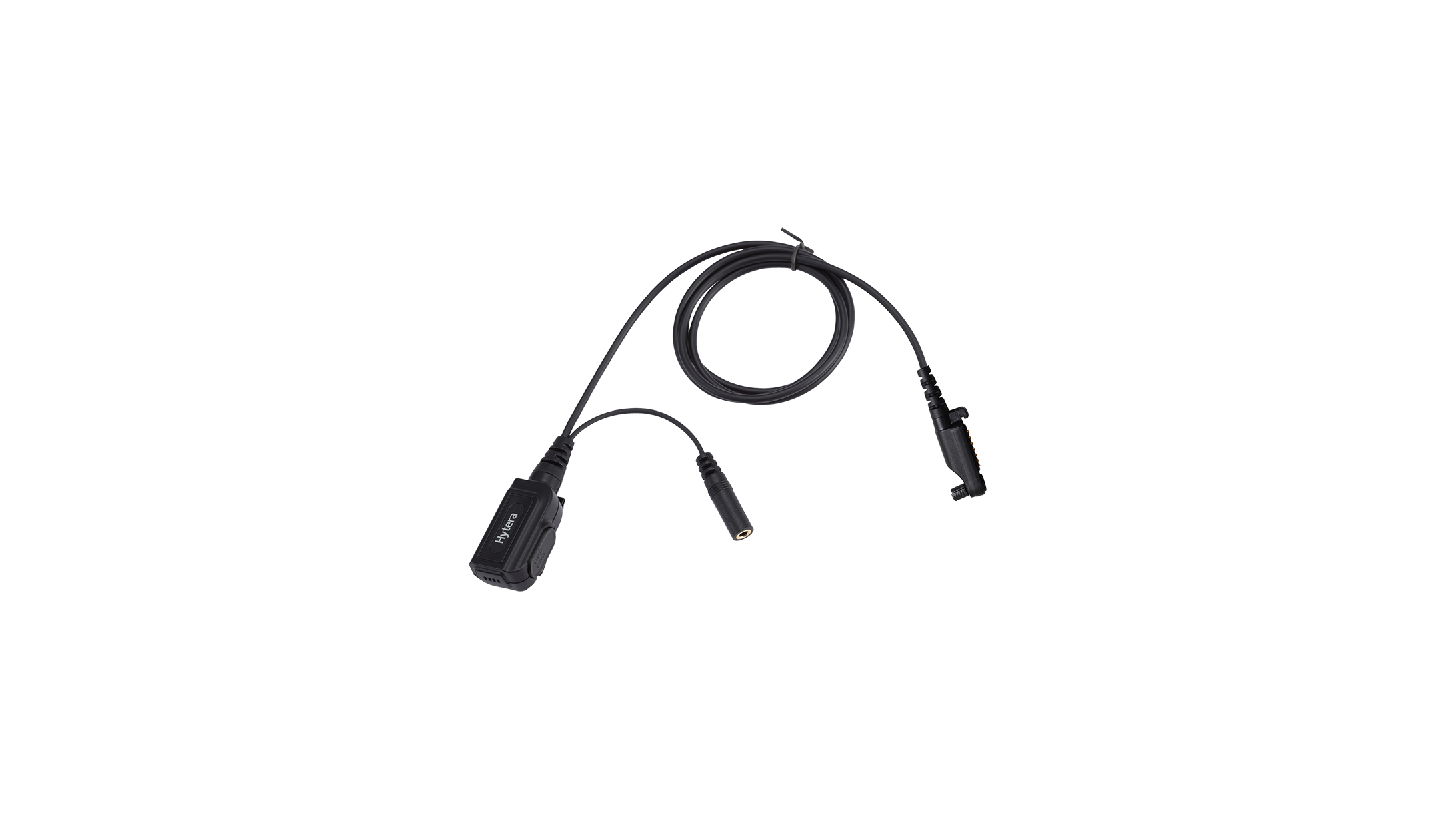

The ACN-01 interface cable is a small microphone/PTT unit to the terminal using a 1m long straight cable. The MIC/PTT unit can be clipped for comfortable wearing. A short flying lead from the MIC/PTT is terminated with a 3.5mm audio jack socket, which connects the earpiece such as ES-01, ES-02, EH-01 or EH-02.

Specifications of ACN-01

  • Specs_Acc_Audio
Specs_Acc_Audio
Weight about 37 g
Color black
PTT Key available
VOX none
Emergency Key none
Connector 16-pin connector
Microphone Sensitivity –45±3 dB @ 1 kHz 3.0 V 2.2 KΩ, 0 dB = 1 V/Pa
IP Rating IP54
Operating Temperature –20℃ to 60℃
Storage Temperature -40~85℃
Note Compatible with receive-only earpiece(φ3.5mm jack)

* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
