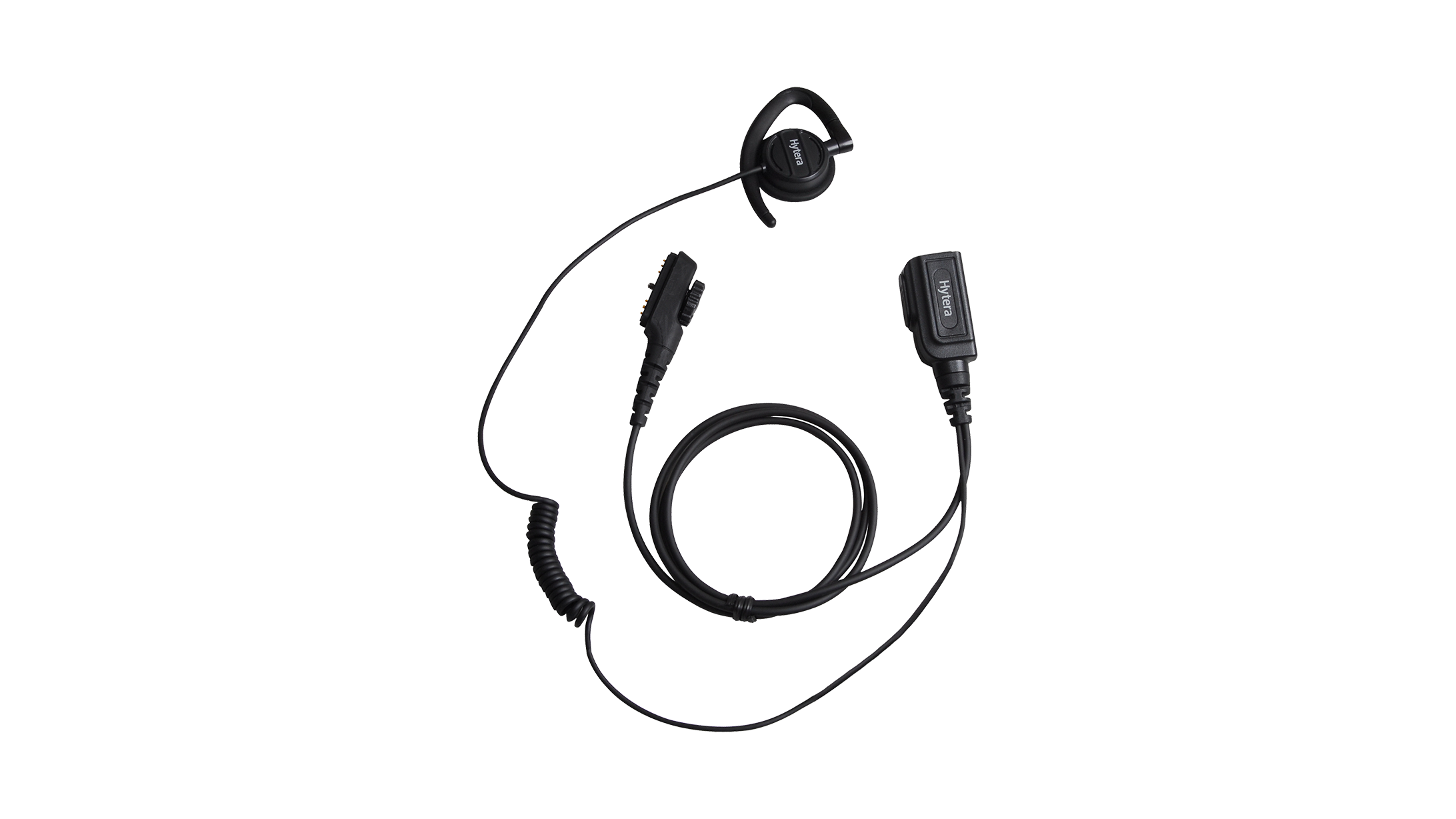

Specifications of EHN12-Ex
- Specs_Acc_Audio
| Specs_Acc_Audio | ||
|---|---|---|
| Weight | about 50 g | |
| Color | black | |
| PTT Key | available | |
| VOX | none | |
| Emergency Key | none | |
| Connector | 16-pin connector | |
| Microphone Sensitivity | –45±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa | |
| Speaker Power | 50 mW (rated); 100 mW (max.) | |
| Speaker Impedance | 150 Ω±15% @ 1 kHz | |
| Speaker Frequency Response | 108±3 dB @ 1kHz at 0.387 V | |
| IP Rating | IP6X | |
| Anti-explosion levels | ATEX, IECEx, FM, CQST, and CSA | |
| Operating Temperature | –20℃ to 60℃ | |
| Storage Temperature | –40℃ to 85℃ | |
* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
