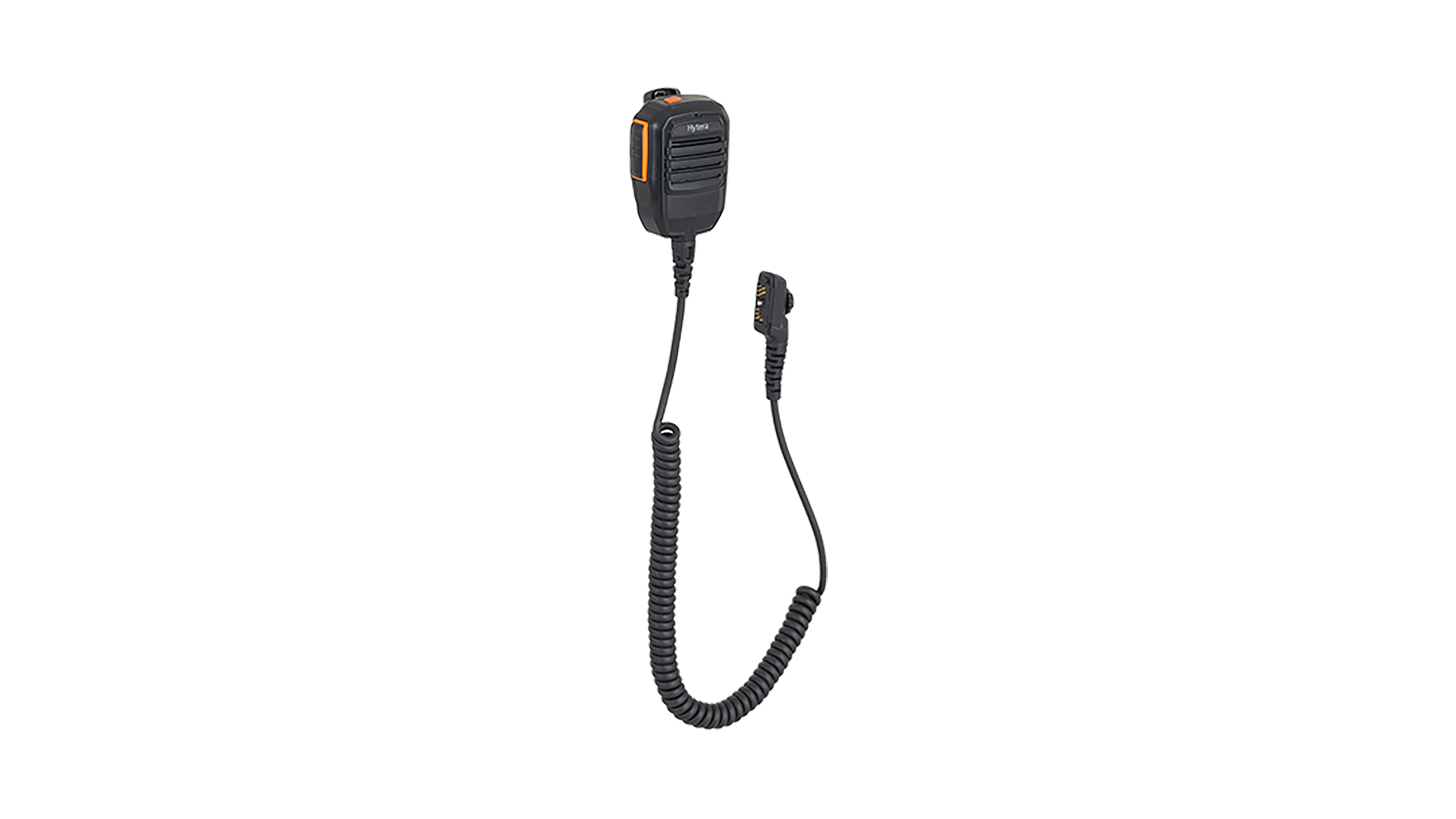

SM18N15

Remote Speaker Microphone(with patrol feature)

Audio

Used for identifying beacon points of the patrol system and compliant with UL913.

Specifications of SM18N15

  • Specs_Acc_Audio
Specs_Acc_Audio
Dimensions 86.3* 62.1* 43.8mm
Weight about 200 g
Color black
PTT Key available
Emergency Key available
Connector 16-pin connector
Microphone Sensitivity –42±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa
Speaker Power 1.5 W (rated); 2.5 W (max.)
Speaker Impedance 16 Ω±15% @ 1 kHz
Speaker Frequency Response 80±3 dB @ 1 kHz 1 W/50 cm
IP Rating IP67
Operating Temperature –30℃ to 60℃
Storage Temperature –40℃ to 85℃

* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
