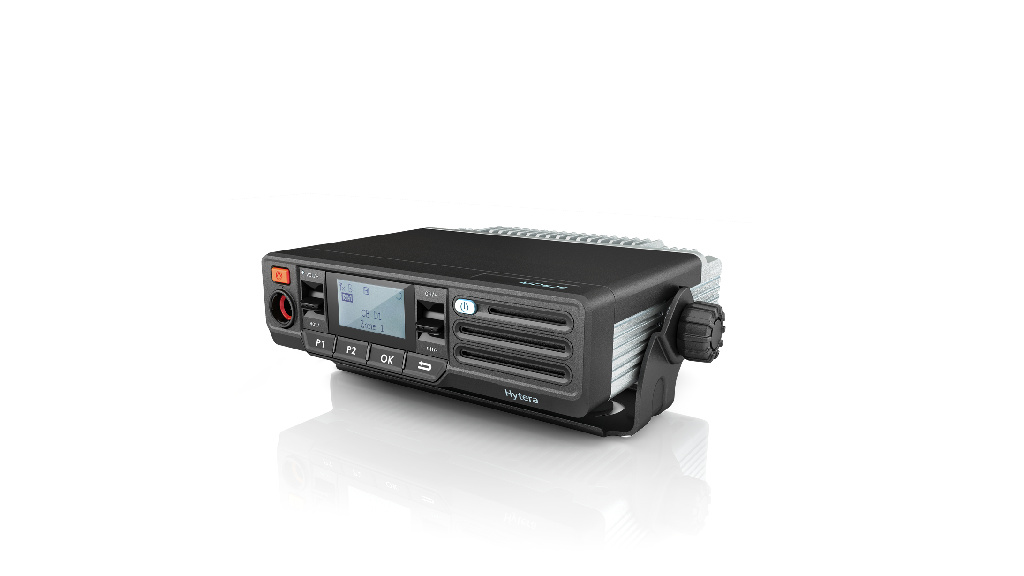

Easy to operate and offering excellent value for money, the MD625 is a cost-effective yet powerful digital mobile radio, the ideal choice for transportation, agriculture, utilities and logistics users.
General data | |
---|---|
Frequency Range | UHF: 400-470 MHz; VHF: 136-174 MHz |
Channel Capacity | 256 (16 channels per zone) |
Zone Capacity | 16 |
Current Drain(Standby) | around 0.3 A |
Current Drain(transmit) | 45 W:<12 A; 25 W:<8 A; 1 W:<3 A; 5 W:<5 A |
Current Drain(receive) | < 1 A |
Dimensions(H×W×D) mm | 164 mm×43 mm×150 mm |
Weight | 1100 g |
Display | LCD Display:1.5 inch,128*64 pixels, monochrome, 2 rows |
Receiver | ||
---|---|---|
Sensitivity(Digital) | 0.3 μV/BER 5% | |
Rated Audio Power Output(Internal) | Internal(@16 ohm olad)4 W | |
Rated Audio Power Output(External) | External (@8 ohm load) 8 W | |
Max. Audio Power Output(Internal) | Internal(@16 ohm olad)6 W | |
Max. Audio Power Output(External) | External(@8 ohm load)12 W |
Transmitter | ||
---|---|---|
RF Power Output | Low power version:1-25W (UHF/VHF); High power version:5-45W(UHF) / 5-50W(VHF) | |
Digital Vocoder Type | AMBE+2™/SELP |
Environmental Specs | ||
---|---|---|
Operating Temperature | -30 ℃~+60 ℃ | |
Storage Temperature | -40 ℃~+85 ℃ | |
ESD | IEC 61000-4-2(level 4); ±15 kV(Air); ±8 kV(Contact) | |
Dust & Water Protection | IP54 | |
Humidity | MIL-STD-810 G standard | |
Vibration,Drop&Shock | MIL-STD-810 G standard |
Power Supply for Mobile Radio (220W,Backup Power Supply applicable)
Power Supply (24 V DC to 12 V DC)
Replacement blade fuse 15A
AC power cord with either UK or EU plug (RoHS)
Vehicle Power Cord
