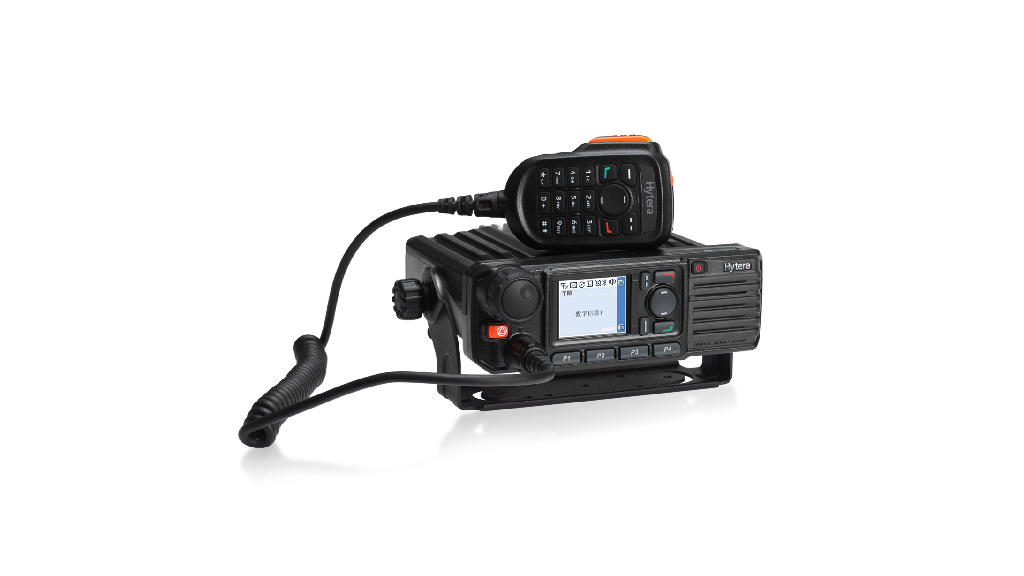

MD785i is the revised and improved version of its predecessor, the MD785. The MD785i is much more powerful and versatile due to further developments in technology.
General data | |
---|---|
Frequency Range | UHF2: 450-520 MHz ; UHF1: 400-470 MHz; UHF3: 350-400 MHz ; VHF: 136-174 MHz |
Channel Capacity | 1024 |
Zone Capacity | 64(each with a maximum of 256 channels) |
Channel Spacing | 12.5 kHz/20 kHz/25 kHz |
Operating Voltage | 13.6 V±15% |
Current Drain(transmit) | 1 W<2 A; 25 W<8 A; 45 W<12 A; 50 W<12 A |
Current Drain(receive) | <2.0 A |
Dimensions(H×W×D) mm | 174 mm x 60 mm x 200 mm |
Weight | 1.7 kg |
Display | LCD Display:2.0 inch, 4 rows |
Receiver | ||
---|---|---|
Rated Audio Power Output(Internal) | 3 W @20 ohm load | |
Rated Audio Power Output(External) | 7.5 W @8 ohm load | |
Max. Audio Power Output(Internal) | 8 W @20 ohm load | |
Max. Audio Power Output(External) | 20 W @8 ohm load |
Transmitter | ||
---|---|---|
RF Power Output | High power :UHF: 1-45 W; High power :VHF: 5-50 W; Low power:1-25 W | |
Digital Vocoder Type | AMBE+2™ or SELP |
Environmental Specs | ||
---|---|---|
Operating Temperature | -30 ℃~+60 ℃ | |
Storage Temperature | -40 ℃~+85 ℃ | |
ESD | IEC 61000-4-2(level 4); ±15 kV(Air); ±8 kV(Contact) | |
Dust & Water Protection | IP54 | |
Humidity | MIL-STD-810 C/D/E/F/G | |
Vibration,Drop&Shock | MIL-STD-810 C/D/E/F/G |
Location Service | ||
---|---|---|
Horizontal Position Accuracy | <5 m (50% probable),<10 m (95% probable) |

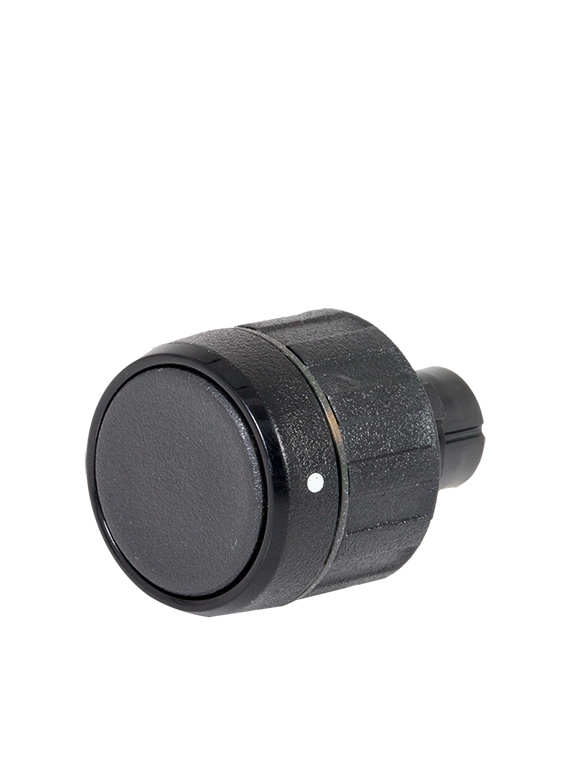

Wireless Audio Adapter
Footswitch (External PTT) with DB26 connector
External Speaker
External Speaker
Desktop Microphone
Palm Microphone(IP67)

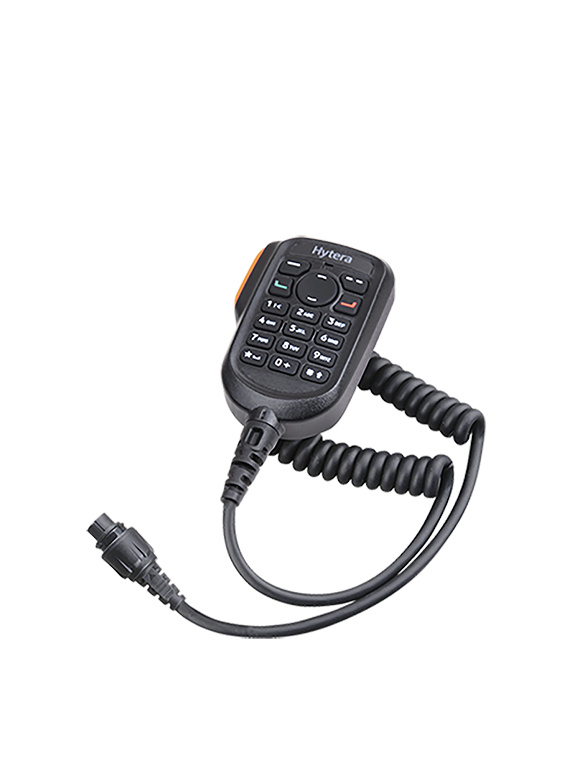

Keypad Palm Microphone
Telephone Style Handset

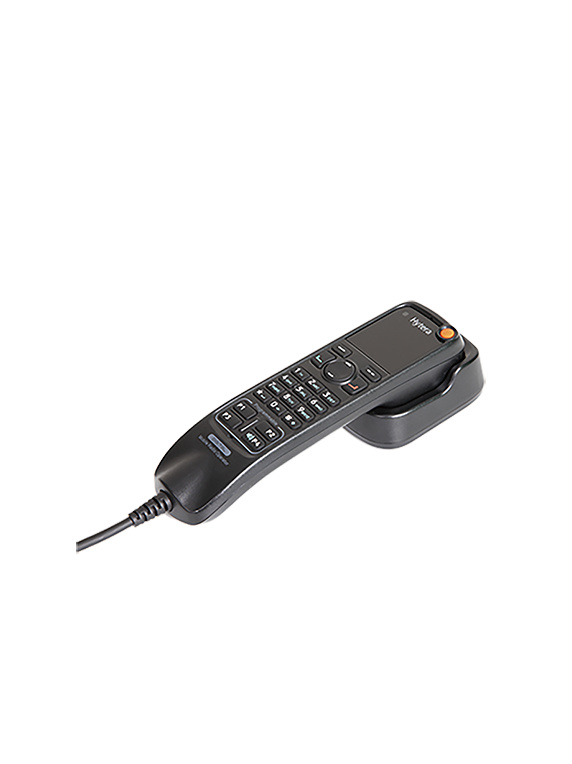

Telephone Style Handset With Keypad
Wireless Remote Speaker Microphone
ECN27
Vehicle Sun Visor Microphone (Straight Barrel Type) (use with POA117 or POA86)
Foot PTT with 3.5mm socket (for use with POA117 or POA86)
Foot PTT&Sun Visor Microphone&External Speaker Cable Kit
Wireless PTT
External Speaker
Programming Cable(USB to 10-pin Aviation Connector)
AC power cord with either UK or EU plug (RoHS)
Programming Cable(USB to DB26)

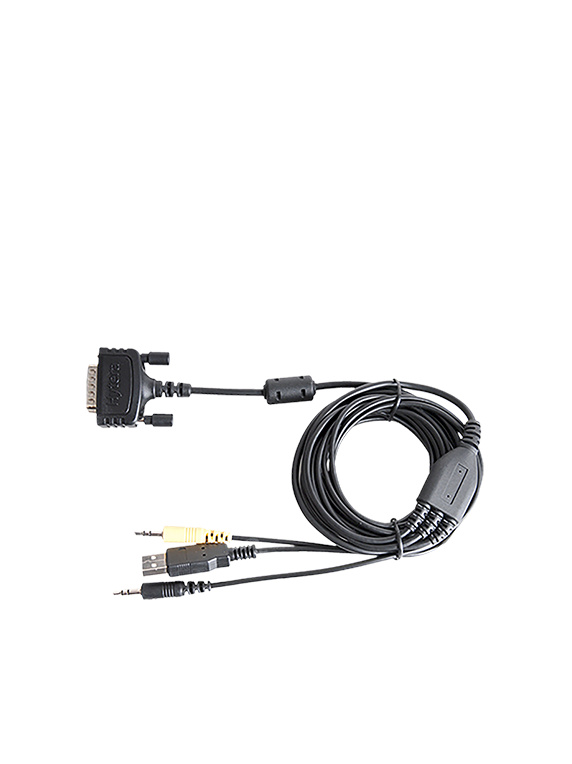

Dispatching Cable with USB Port&Dual Audio Jack
Data Cable(COM Port)
Programming Cable(USB to 10-pin Aviation Connector)

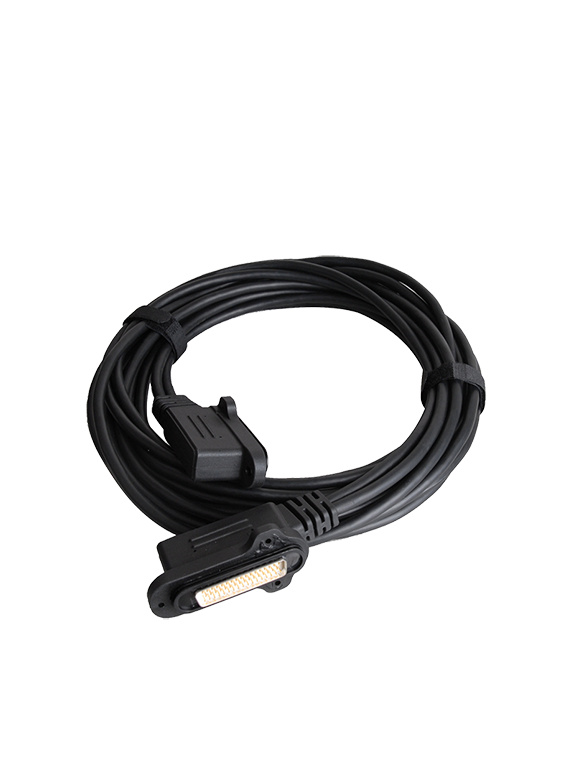

Data Cable(COM Port)(6 meters)
Back-to-back Data Cable(DB26 to DB26)
Ignition Cable

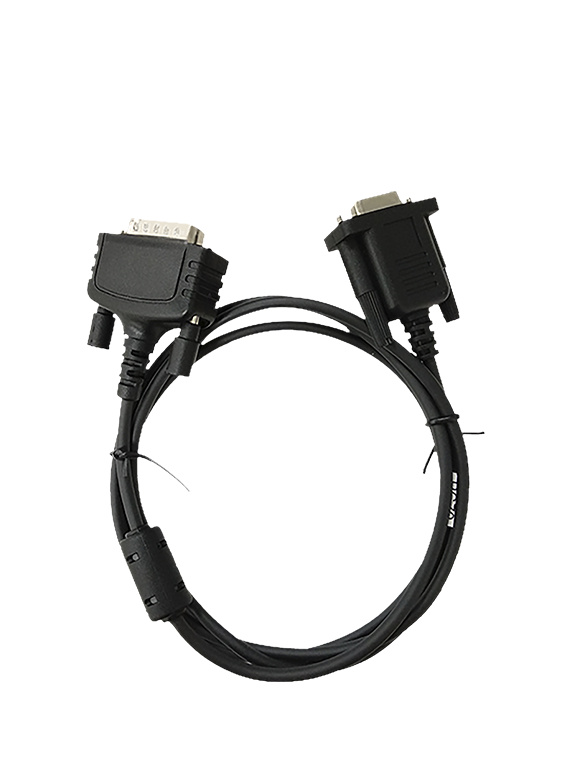

Data Cable(DB26 to DB9)(Female)
Programming Cable(USB to Micro USB)
Cable for Mobile Radio(DB26 interface split to speaker,PTT ignition,10m)

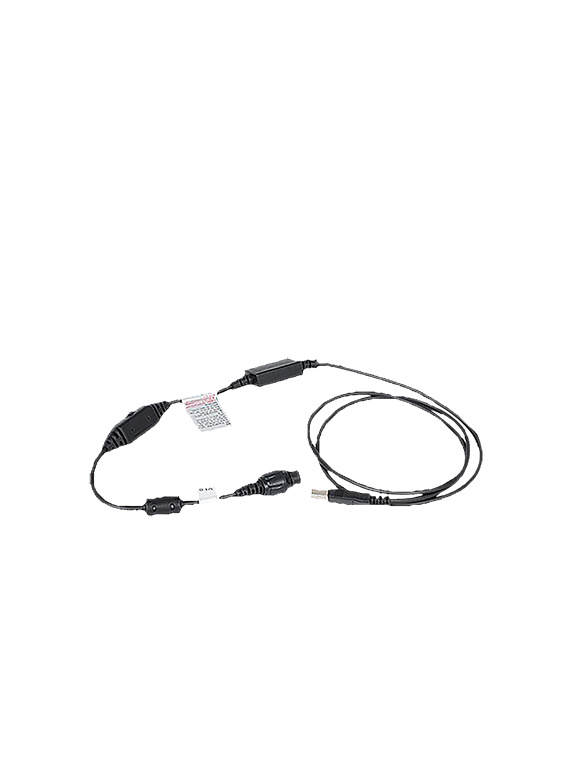

Programming Cable(USB to 10-pin Aviation Connector)(with signal amplification)

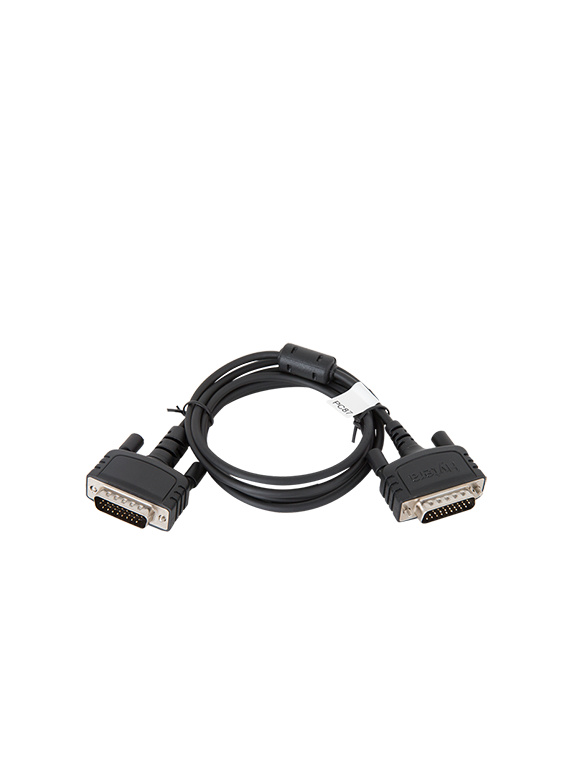

Back-to-back Data Cable with Ignition Function(DB26 to DB26)
Data Cable(DB26 connector with Ignition and Speaker cable)
Foot PTT and microphone cable kit for MD655, MD785, MD785G, MD785i, MT680, MT680 Plus
Foot PTT, microphone and speaker cable kit for MD655, MD785, MD785G, MD785i, HM785, MT680, MT680 Plus
Installation accessory for rack-mounted power supply (2U)(Black)
Installation Accessory for Rack-mounted Power Supply (2U)(Gray)

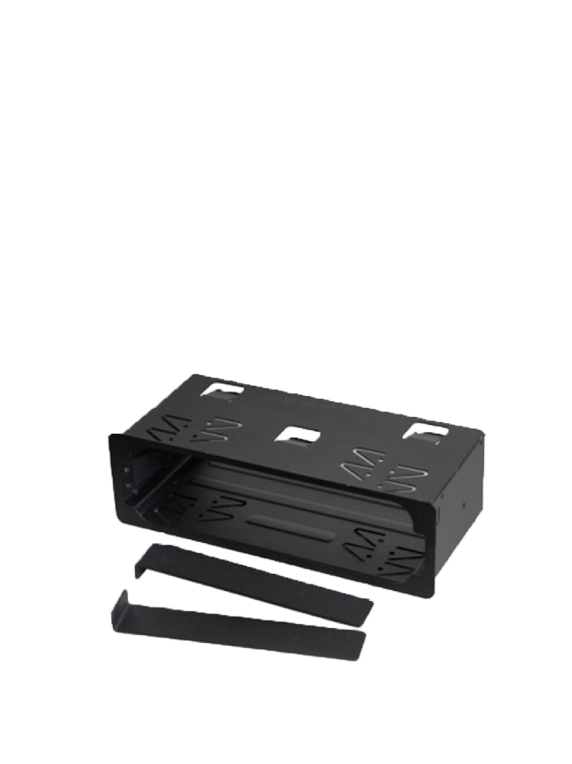

In-Dash Mounting Kit(DIN)
Mounting Bracket

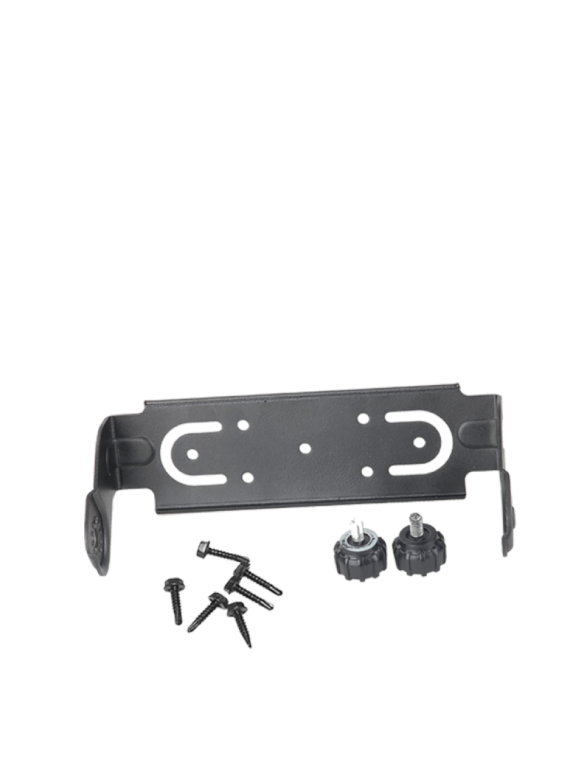

Mounting Bracket (for Motorcycle)

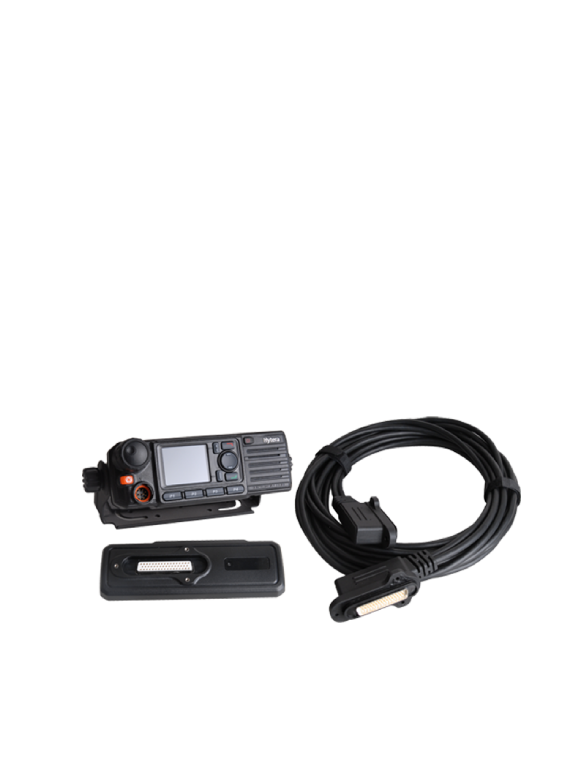

Mobile Radio Remote Mount Kit(3m)(IP67)
Mobile Radio Remote Mount Kit(6m)(IP67)

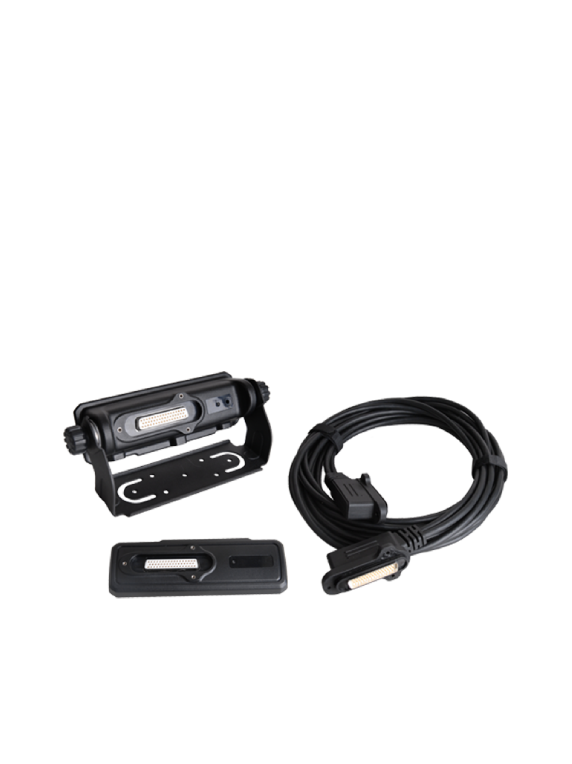

Mobile Radio Remote Mount Kit(3m)(IP54)

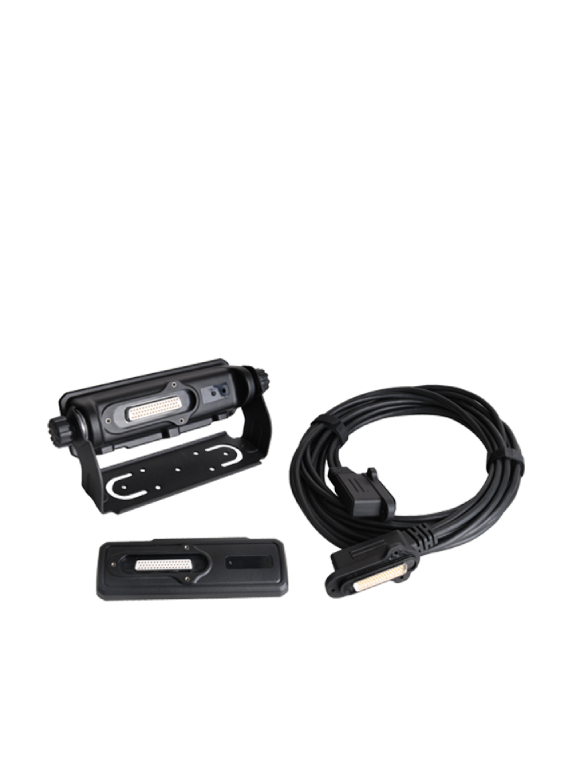

Mobile Radio Remote Mount Kit(6m)(IP54)
General Optional Board Processor
