HM785 Professional DMR Mobile Two-way Radio

HM785

Mobile | DMR

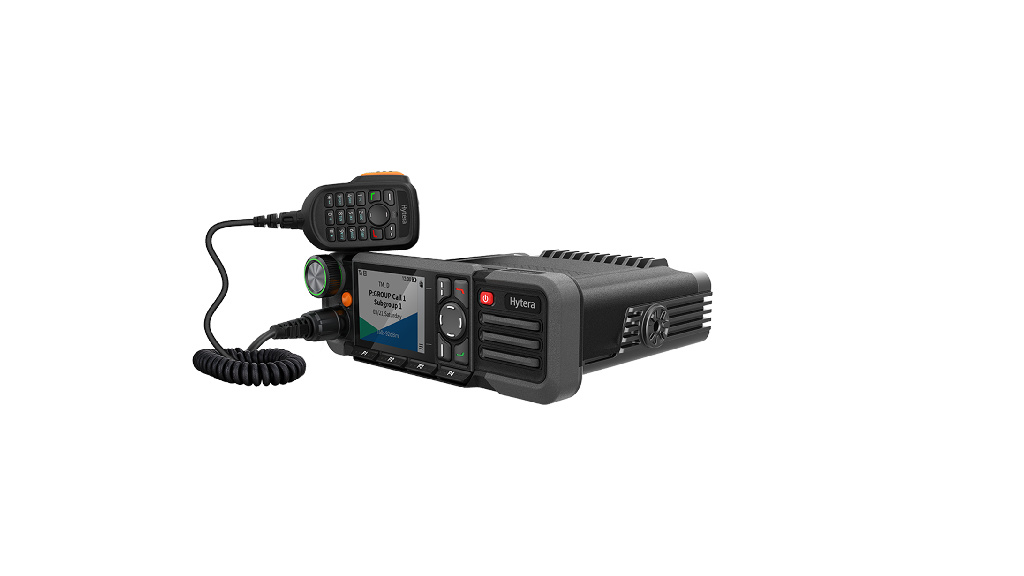

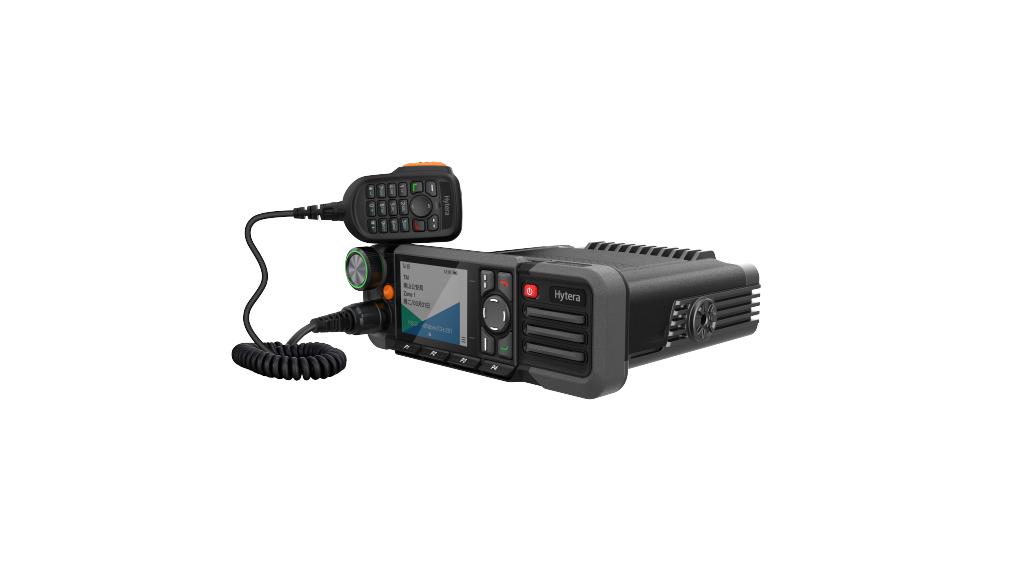

The HM785 DMR mobile radio is the next generation of professional digital mobile radio providing greater flexibility and scalability. This mobile radio with DMR technology supports a single control head as standard with options for remote control head mounting and dual control head to suit different environments (such as vehicles, motorcycles and fixed control rooms) ensuring efficient communication.

Highlights of HM785

MORE FLEXIBLE

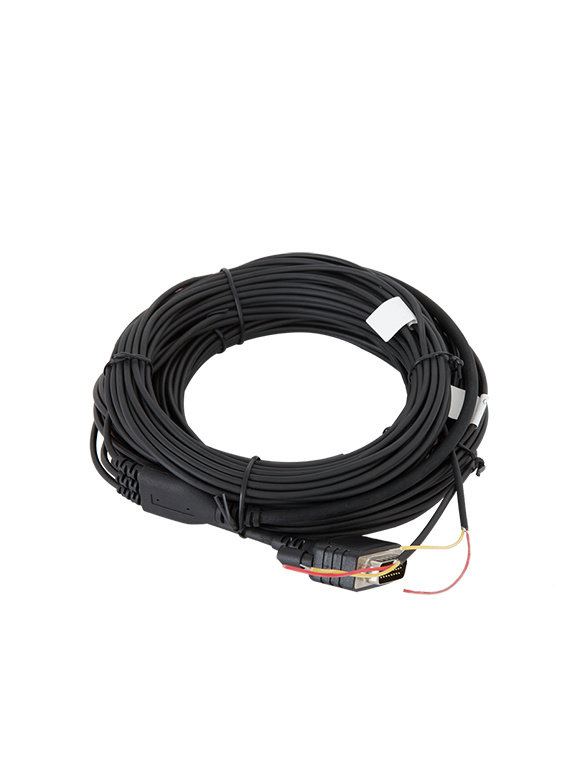

Flexible control heads and accessories allow installation according to the users requirements. The connection cable of the remote control head can be either 3m, 10m or 40m as standard. A connection cable of up to 120m is also available (Customisation required).

CLEARER AUDIO

Adopts AI noise cancellation technology to filter out background noise (such as road noise), eliminate echoes, enhance speech and reduce howling when in close proximity to the transmitting radio. With this technology, the mobile radio provides crisper and clearer audio when transmitting and receiving voice calls.

MORE RELIABLE

Improved receiver sensitivity improves audio quality in weak signal areas to provide clearer audio

RICH SCALABLE APPLICATION

Supports multiple connections through BT, and the accessory and network (Ethernet) ports. It also supports Clarity Transmission and back to back connections which will greatly facilitate your solutions.

Specifications of HM785

  • General data
  • Receiver
  • Transmitter
  • Environmental Specs
General data
Frequency Range V1: 136-174MHz Uv : 350-470MHz
Channel Capacity 1024
Zone Capacity 64 (256 channels per zone)
Channel Spacing 12.5 kHz/20 kHz/25 kHz
Operating Voltage 13.6V±15%
Current Drain(Standby) <0.5 A
Current Drain(transmit) 5W: <5A 25W: <8A 45W: <12A
Current Drain(receive) <2.0 A
Frequency Stability ±0.5 ppm
Antenna Impedance 50 Ω
Dimensions(H×W×D) mm 61.5 mm x 177 mm x 179 mm
Weight 1520 g
Display 2.4 inch, 4 line 160*128 pixels 262200 colours
BT BT5.0 BLE+EDR (hardware option)
Receiver
Sensitivity(Analog) 0.16 μV(Typical)(12 dB SINAD); 0.18 μV(12 dB SINAD)
Sensitivity(Digital) 0.18 μV/BER5%
Adjacent Channel Selectivity ETSI: 60 dB@12.5 kHz / 70 dB@20/25 kHz TIA-603: 60 dB@12.5 kHz / 70 dB@20/25 kHz
Intermodulation ETSI:65 dB@12.5/20/25 kHz TIA-603:70 dB@12.5/20/25 kHz
Spurious Response Rejection ETSI:70 dB@12.5/20/25 kHz TIA-603:70 dB@12.5/20/25 kHz
Blocking ETSI: 84 dB TIA-603: 80 dB
Hum&Noise 40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz
Rated Audio Power Output(Internal) 3 W @8Ω load
Rated Audio Power Output(External) 7.5 W @ 8Ω load
Max. Audio Power Output(Internal) 8 W @20Ω load
Max. Audio Power Output(External) 20 W @8Ω load
Rated Audio Distortion ≤3%
Audio Response +1~-3 dB
Conducted Spurious Emission <-57 dBm
Transmitter
RF Power Output Low power: UHF:1-25 W, vHF:5-25 W High power: UHF:1-45 W, VHF:5-50 W
FM Modulation 11K0F3E@12.5 kHz; 14K0F3E@20 kHz; 16K0F3E@25 kHz
4FSK Digital Modulation 12.5 kHz Data Only:7K60FXD; 12.5 kHz Data&Voice:7K60FXW
Conducted/Radiated Emission -30 dBm>1 GHz; -36 dBm<1 GHz
Modulation Limiting ±2.5 kHz@12.5 kHz; ±4.0 kHz@20 kHz; ±5.0 kHz@25 kHz;
FM Hum&Noise 40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz
Adjacent Channel Power 60 dB@12.5 kHz; 70 dB@20/25 kHz
Audio Distortion ≤3%
Digital Vocoder Type AMBE+2™
Digital Protocol ETSI-TS102 361-1,-2,-3
Environmental Specs
Operating Temperature -30 ℃~+60 ℃
Storage Temperature -40 ℃~+85 ℃
ESD IEC 61000-4-2(level 4); ±15 kV(Air); ±8 kV(Contact)
MIL Standard MIL-STD-810 G
Dust & Water Protection IP54
Humidity Per MIL-STD-810 G Standard
Vibration,Drop&Shock Per MIL-STD-810 G Standard
Horizontal Position Accuracy <5 m
Cold Start (Time to First Fix) <1 minute
Hot Start (Time to First Fix) <10 seconds
Note Accuracy specs are for long-term tracking (95th percentile values>5 satellites visible at a nominal -130 dBm)

* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
