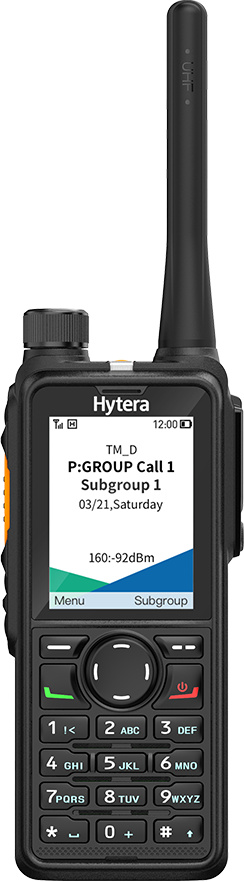

The HP785 DMR handset with large screen and AI noise cancellation represents the future on style and functions that refreshes the standards in digital radios, providing more efficient and more reliable communication with loud and clear audio, powerful 24 hour battery, remarkable portability and IP68 ruggedness for ease of use across multiple environments and industries. Click to view full range here.
AI-based noise cancellation reduces background noise and enhances speech. The anti-magnetic design prevents the absorbtion of metallic waste generated in heavy manufacturing facilities.
A 2.4-inch color display with two notifications and content preview on the home screen. The graphical interface is more intuitive, messages are listed in conversation and a Quick Access Menu to access frequently used menus.
PU paint spray silicone keyboard allows characters to be clearly seen after 10000 times of cleaning with alcohol or 4000 times of rubbing with RCA paper tape.
IP68 rated and resilient to 2-meter drop to stand up to a lot of wear and tear, MIL-STD-810 G standard
Water-porting technology allows any water that gets into the speaker cavity to drain out when vertical, ensuring the audio clarity is maintained.
The 24-hour long battery life, ensures a full day of delivering key information and calls, truly reduce burden and increase efficiency for users, and with anti-counterfeiting function, safety is more guaranteed.
General data | |
---|---|
Frequency Range | VHF: 136~174MHz UHF:350~470MHz |
Channel Capacity | 1024 |
Zone Capacity | 64 (256 channels per zone) |
Channel Spacing | 12.5 kHz/20 kHz/25 kHz |
Operating Voltage | 7.7 V(rated) |

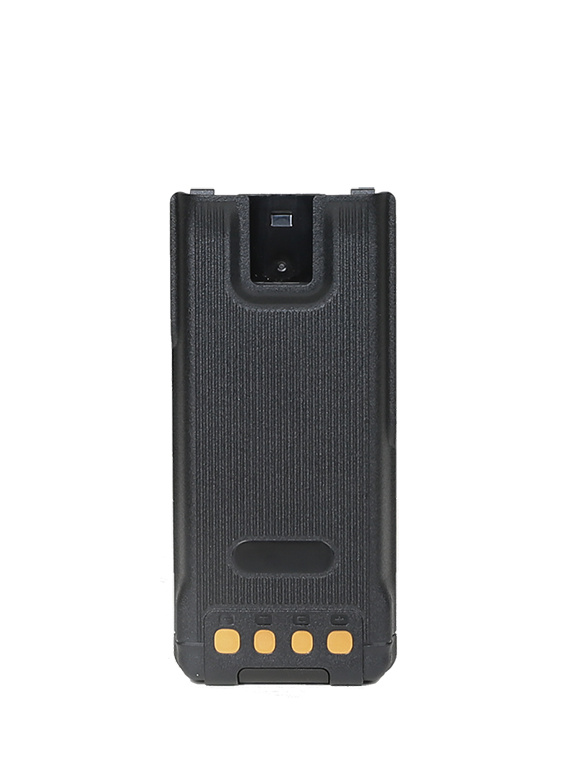

Battery | 2400 mAh Li-polymer |
Battey Life(5/5/90 Duty Cycle,High TX Power) | GNSS disabled: 24 hours; GNSS enabled: 20 hours (digital mode) |
Frequency Stability | ±0.5 ppm |
Antenna Impedance | 50 Ω |
Dimensions(H×W×D) mm | 132 mm ×55 mm ×29.5 mm |
Weight | 310 g (with 2400 mAh Bat.) |
Display | LCD Display: 2.4 inch, 10 row, 240x320 pixel, 262000 colours |
BT | V5.0 BLE+EDR (hardware option) |
Receiver | ||
---|---|---|
Sensitivity(Analog) | 0.16 μV (typical) (12 dB SINAD); 0.18 μV (12 dB SINAD) | |
Sensitivity(Digital) | 0.18 μV/BER5% | |
Adjacent Channel Selectivity | ETSI: 60 dB@12.5 kHz / 70 dB@20&25 kHz TIA-603: 60 dB@12.5 kHz / 70dB@20&25kHz | |
Intermodulation | TIA-603: 70 dB; ETSI: 65 dB | |
Spurious Response Rejection | TIA-603: 70 dB; ETSI: 70 dB | |
Blocking | ETSI: 84 dB; TIA-603: 80 dB | |
Hum&Noise | 40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz | |
Rated Audio Power Output | 0.5 W | |
Audio Response | +1 ~-3 dB | |
Conducted Spurious Emission | <-57 dBm |
Transmitter | ||
---|---|---|
RF Power Output | UHF: 1W / 4W; VHF: 1W / 5W | |
FM Modulation | 11K0F3E@12.5 kHz; 14K0F3E@20 kHz; 16K0F3E@25 kHz ; | |
4FSK Digital Modulation | 12.5 kHz Data Only: 7K60FXD; 12.5 kHz Data & Voice: 7K60FXW | |
Conducted/Radiated Emission | -30 dBm > 1 GHz; -36 dBm <1 GHz | |
Modulation Limiting | ±2.5 kHz@12.5 kHz; ±4.0 kHz@20 kHz; ±5.0 kHz@25 kHz | |
FM Hum&Noise | 40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz | |
Adjacent Channel Power | 60 dB@12.5 kHz; 70 dB@20/25 kHz | |
Audio Distortion | ≤3% | |
Digital Vocoder Type | AMBE+2™ | |
Digital Protocol | ETSI-TS102 361-1,-2,-3 |
Environmental Specs | ||
---|---|---|
Operating Temperature | -30 ℃*~+60 ℃ | |
Storage Temperature | -40 ℃~+85 ℃ | |
ESD | IEC 61000-4-2(level 4); ±15 kV(Air); ±8 kV(Contact) | |
MIL Standard | MIL-STD-810 G | |
Dust & Water Protection | IP68 | |
Humidity | Per MIL-STD-810 G | |
Vibration,Drop&Shock | Per MIL-STD-810 G |
Location Service | ||
---|---|---|
Horizontal Position Accuracy | <5 m | |
Cold Start (Time to First Fix) | <1 minute | |
Hot Start (Time to First Fix) | <10 seconds | |
Note | Accuracy Specs are for long-term tracking (95th percentile values>5 satellites visible at a nominal-130 dBm signal strength) |
* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
VHF(136-145MHz/1575MHz)9cm
VHF (136-150MHz/1575MHz) 17cm
VHF(144-154MHz/1575MHz)9cm
VHF (136-174MHz/1575MHz) 20cm
VHF (146-164MHz/1575MHz) 17cm
VHF(153-164MHz/1575MHz)9cm
VHF(163-174MHz/1575MHz)9cm

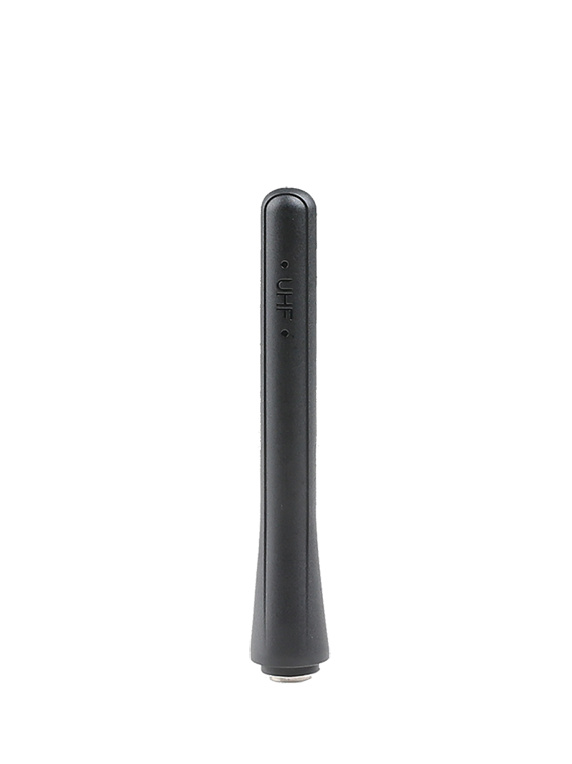

UHF (450-520MHz/1575MHz) 9cm
VHF/GPS thick long antenna 136-174MHz/1575MHz, 20 cm, SMA (male) -- for HP705, HP785, PDC680
PTT&MIC cable
3-wire Surveillance Earpiece with Transparent Acoustic Tube(Beige)
2-wire Surveillance Earpiece with Transparent Acoustic Tube(Beige)
Heavy duty Noise-cancelling Headset
Receive-Only C-Style Earloop
Swivel Style Earpiece (Receive-Only) (3.5mm Audio Plug)
C-Earset with in-line MIC
Double PTT BT Earpiece
BT earpiece
Receive-Only Earbud
Receive-Only Earpiece with Transparent Acoustic Tube
Wireless PTT
Waterproof Remote Speaker Microphone(IP67)
Waterproof Remote Speaker Microphone(IP54)
Receive-only Earpiece with Transparent Acoustic Tube
Wireless RSM SM27W2
