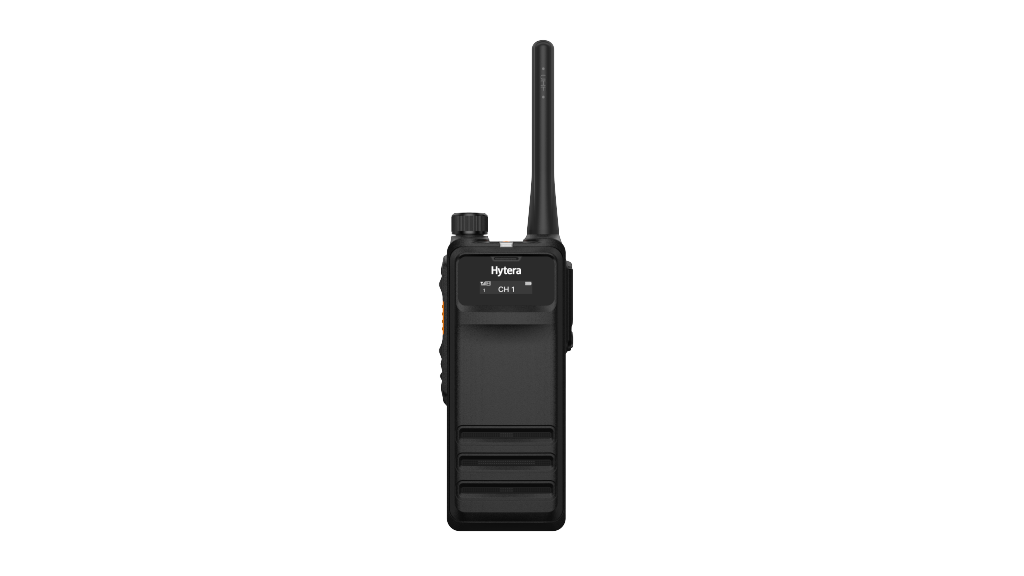

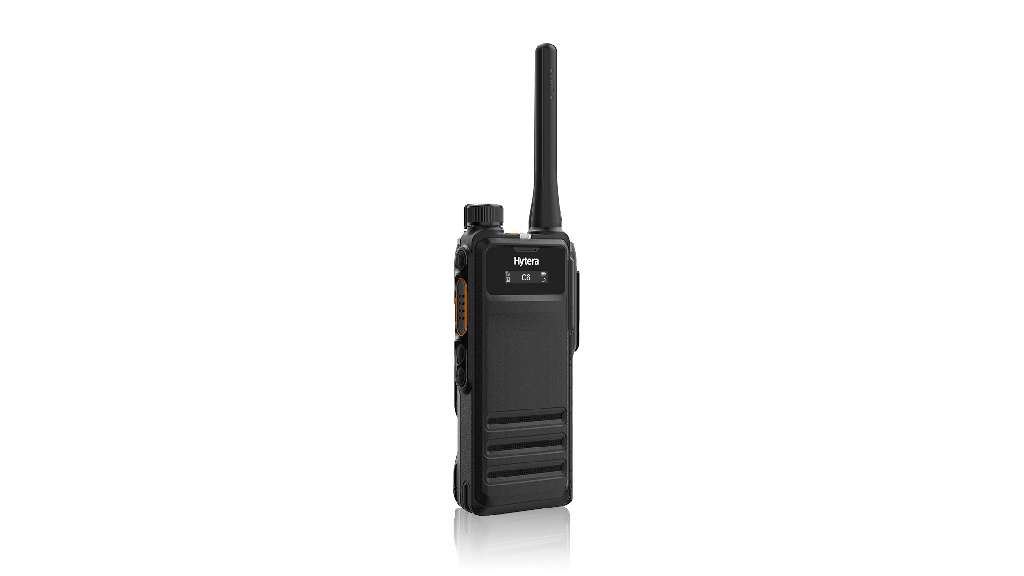

The HP705 DMR two way radio presents a thinner, lighter style and come with functions that refresh the standards in digital radios. Innovative noise cancelling, MIL-STD-810 G standard and IP68 rating provided more efficient and more reliable communication with loud and clear audio, powerful battery, remarkable portability and ruggedness for ease of use across multiple environments and industries. Click here to view the full H Series Range.
General data | |
---|---|
Frequency Range | VHF: 136~174MHz UHF: 350-470MHz |
Channel Capacity | 1024 |
Zone Capacity | 64 (256 channels per zone) |
Channel Spacing | 25/20/12.5KHz |
Operating Voltage | 7.7 V(rated) |
Battery | 2400 mAh Li-polymer |
Battey Life(5/5/90 Duty Cycle,High TX Power) | VHF:25 hours(GNSS off),21 hours(GNSS on) UHF:26 hours(GNSS off),22 hours(GNSS on) |
Frequency Stability | ±0.5 ppm |
Antenna Impedance | 50 Ω |
Dimensions(H×W×D) mm | 132 mm ×55 mm ×29.5 mm |
Weight | 290 g (with 2400 mAh Bat.) |
Display | OLED Display: 0.91 inch |
BT | V5.0 BLE+EDR (hardware option) |
Receiver | ||
---|---|---|
Sensitivity(Analog) | 0.16 μV (typical) (12 dB SINAD); 0.18 μV (12 dB SINAD) | |
Sensitivity(Digital) | 0.18 μV/BER5% | |
Adjacent Channel Selectivity | ETSI: 60 dB@12.5 kHz / 70 dB@20&25 kHz TIA-603:60 dB@12.5 kHz / 70 dB@20&25kHz | |
Intermodulation | TIA-603: 70 dB; ETSI: 65 dB | |
Spurious Response Rejection | TIA-603: 70 dB; ETSI: 70 dB | |
Blocking | ETSI:84 dB; TIA-603:80 dB | |
Hum&Noise | 40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz | |
Rated Audio Power Output | 0.5 W | |
Rated Audio Distortion | ≤3% | |
Audio Response | +1 ~-3dB | |
Conducted Spurious Emission | <-57 dBm |
Transmitter | ||
---|---|---|
RF Power Output | UHF: 1 W/4 W; VHF: 1 W/5 W | |
FM Modulation | 11K0F3E@12.5 kHz; 14K0F3E@20 kHz; 16K0F3E@25 kHz ; | |
4FSK Digital Modulation | 12.5 kHz Data Only: 7K60FXD; 12.5 kHz Data & Voice: 7K60FXW | |
Conducted/Radiated Emission | -30 dBm > 1 GHz; -36 dBm <1 GHz | |
Modulation Limiting | ±2.5 kHz@12.5 kHz; ±4.0 kHz@20 kHz; ±5.0 kHz@25 kHz | |
FM Hum&Noise | 40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz | |
Adjacent Channel Power | 60 dB@12.5 kHz; 70 dB@20/25 kHz | |
Audio Distortion | ≤3% | |
Digital Vocoder Type | AMBE+2™ | |
Digital Protocol | ETSI-TS102 361-1,-2,-3 |
Environmental Specs | ||
---|---|---|
Operating Temperature | -30 ℃*~+60 ℃ | |
Storage Temperature | -40 ℃~+85 ℃ | |
ESD | IEC 61000-4-2(level 4); ±15 kV(Air); ±8 kV(Contact) | |
MIL Standard | MIL-STD-810 G | |
Dust & Water Protection | IP68 | |
Humidity | Per MIL-STD-810G Standard | |
Vibration,Drop&Shock | Per MIL-STD-810G Standard |
Location Service | ||
---|---|---|
Horizontal Position Accuracy | <5 m | |
Cold Start (Time to First Fix) | <1 minute | |
Hot Start (Time to First Fix) | <10 seconds | |
Note | Accuracy Specs are for long-term tracking (95th percentile values>5 satellites visible at a nominal-130 dBm signal strength) |
Certification | Per MIL-STD-810G Standard |
* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
VHF(136-145MHz/1575MHz)9cm
VHF/GPS thick long antenna 136-174MHz/1575MHz, 20 cm, SMA (male) -- for HP705, HP785, PDC680
VHF (136-150MHz/1575MHz) 17cm
VHF(144-154MHz/1575MHz)9cm
VHF (136-174MHz/1575MHz) 20cm
VHF (146-164MHz/1575MHz) 17cm
VHF(153-164MHz/1575MHz)9cm
VHF(163-174MHz/1575MHz)9cm
UHF (450-520MHz/1575MHz) 9cm
PTT&MIC cable
3-wire Surveillance Earpiece with Transparent Acoustic Tube(Beige)
2-wire Surveillance Earpiece with Transparent Acoustic Tube(Beige)
Heavy duty Noise-cancelling Headset
Receive-Only C-Style Earloop
Swivel Style Earpiece (Receive-Only) (3.5mm Audio Plug)
C-Earset with in-line MIC
Double PTT BT Earpiece
BT earpiece
Receive-Only Earbud
Receive-Only Earpiece with Transparent Acoustic Tube
Wireless PTT
Waterproof Remote Speaker Microphone(IP67)
Waterproof Remote Speaker Microphone(IP54)
Receive-only Earpiece with Transparent Acoustic Tube
Wireless RSM SM27W2
