Highlights of PT590
Precise Positioning
With dual frequency positioning, the position can be determined with an accuracy of
up to 1 meter by receiving and processing satellite signals in two frequency bands
simultaneously.
Anti-multipath Algorithm
Experience smooth and stable voice communication in harsh electromagnetic environments.
Innovative Design
The very compact and lightweight design with a depth of only 31mm and a weight of
285g provides the user with comfort when carrying the radio for long periods of use
2.4 inch LCD display
The semi-transparent and semi-reflective LCD screen ensures clear readability in direct
sunlight and reduces eye strain.
Advanced Version of Hardware
Includes features such as up to 100 voice commands in English, wake-up by voice, WLAN
for smart radio management, full function car kit ability, and an anti-multipath algorithm.
Robust and Reliable
IP65, IP66, IP67 and IP68 certified to withstand immersion in 2 meters of water for
up to 4 hours. Tested to MIL-STD-810 H standard.
Fast charging
The built-in battery can be fully charged in just 1.5 hours, and a 30-minute quick
charge provides 10 hours of communication.
Superior Audio Quality
AI-based noise cancellation reduces background noise and improves speech intelligibility.
A high-performance speaker and professional acoustic cavity design ensure the highest
audio volume.
Water-porting Design
Ensures clear audio quality and extends the life of the speakers, even in heavy rain
One port fits all
The PT590 can not only be charged but also programmed and upgraded via the Type-C
USB port on the bottom.

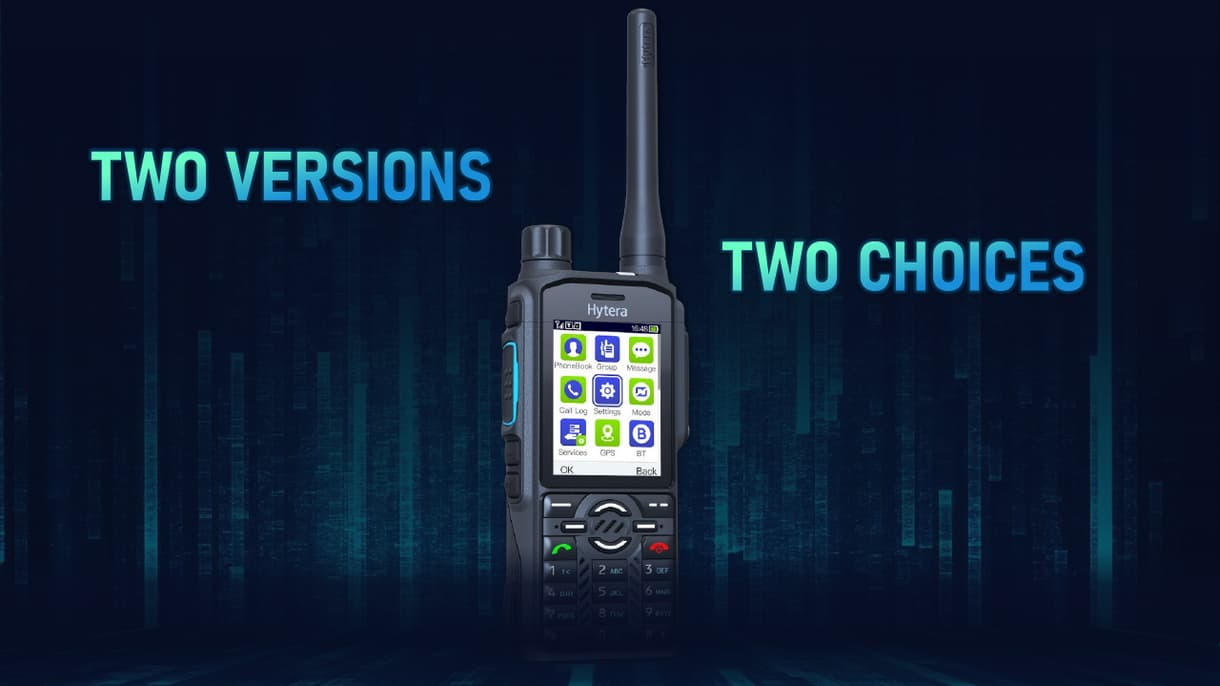

Advanced Hardware Version for Even More Features
The PT590Adv is the advanced hardware version, packed with cutting-edge features designed to elevate your communication experience. It includes up to 100 voice commands in English, wake-up by voice, WLAN with smart radio management, full function car kit ability, and an anti-multipath algorithm.
Superior Audio Quality

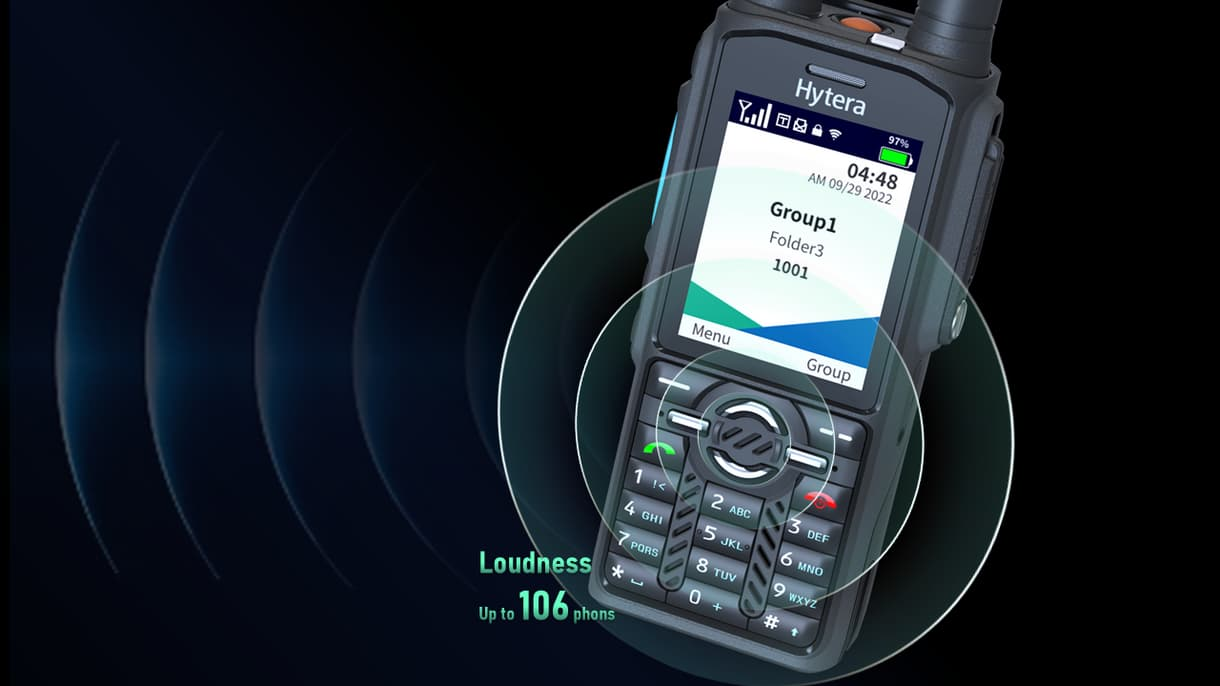

The PT590 is equipped with a powerful speaker with an innovative acoustic cavity design and a large acoustic aperture for 106 phon audio volume. It can help users hear clear sounds even in a noisy environment. Additionally, water porting technology is used to drain any water that enters the speaker cavity, ensuring sound clarity is maintained. AI-based noise cancellation technology reduces background noise and howling by up to 30 dB. No matter what noise environment the caller is in, it ensures that the called party hears clear sound.

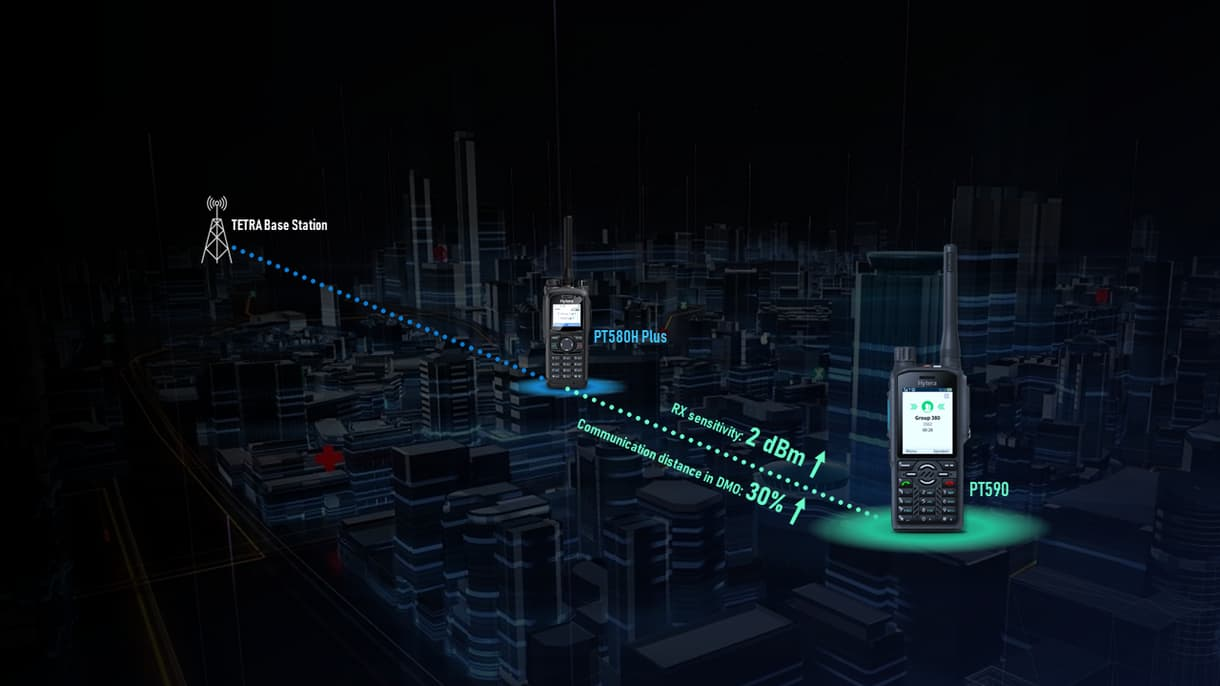

Extended Radio Range
The PT590 is trustworthy when your employees take it to work. With sustained and stable Class 3 transmit power (3W) and industry-leading receive sensitivity (-120 dBm), the PT590 ensures stable communication without loss of information, even at a distance or at the edge of radio coverage. Your employees stay connected anytime, anywhere.
Accurate Positioning
The PT590 utilizes dual-frequency positioning technology in an unprecedented way. By simultaneously receiving and processing satellite signals in two frequency bands, signal distortions are effectively compensated and corrected. This improves the positioning accuracy of the PT590 to an industry-leading level – within 1 meter.

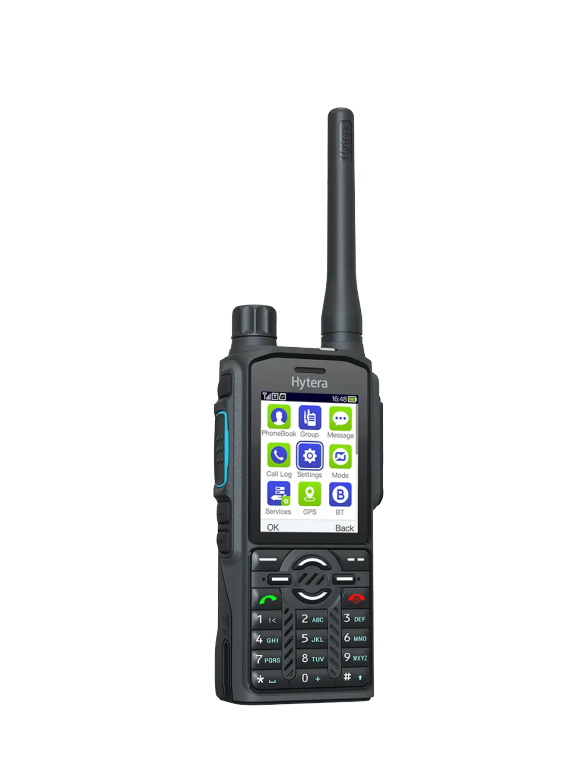

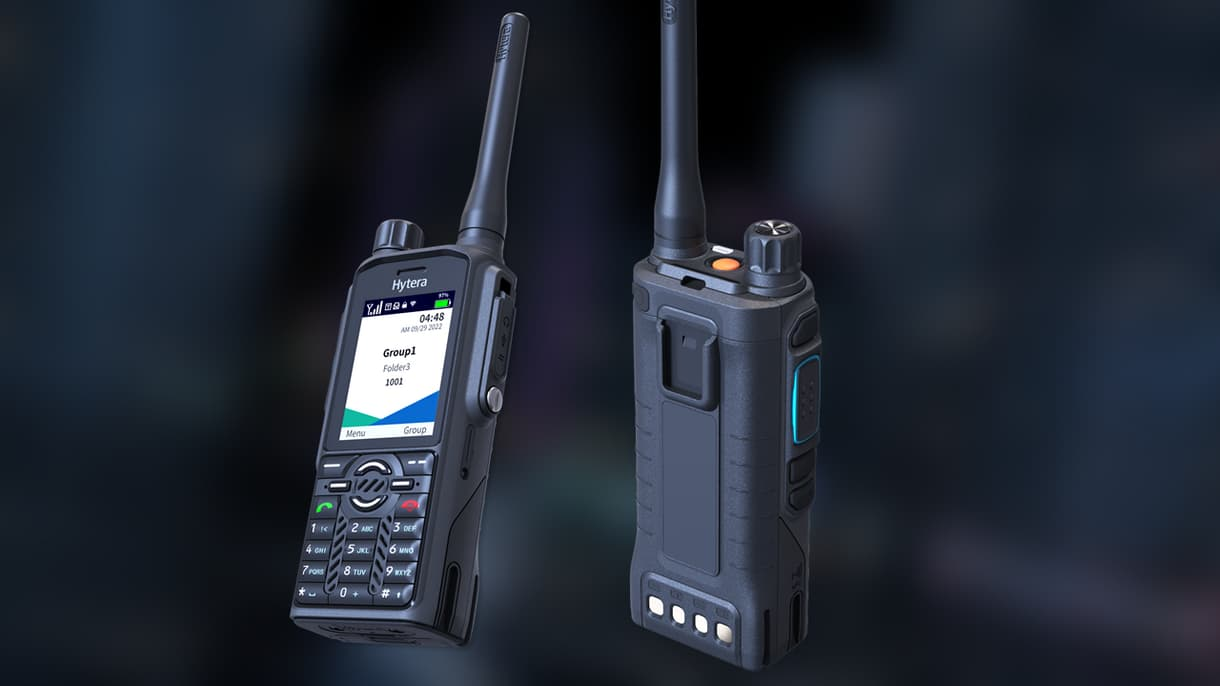

Better User Friendliness
This wonderfully light and surprisingly slim radio weighs just 285g and is 31mm deep. It is easy to carry throughout the day and convenient to use with one hand. The large textured PTT button and independent four navigation buttons are more user-friendly. The PT590's 2.4-inch LCD screen is semi-transparent and semi-reflective, ensuring clear readability in direct sunlight and reducing eye strain. The PT590 features a new, user-friendly UI design that helps your staff access the function directly with 9 icons arranged in two dimensions.

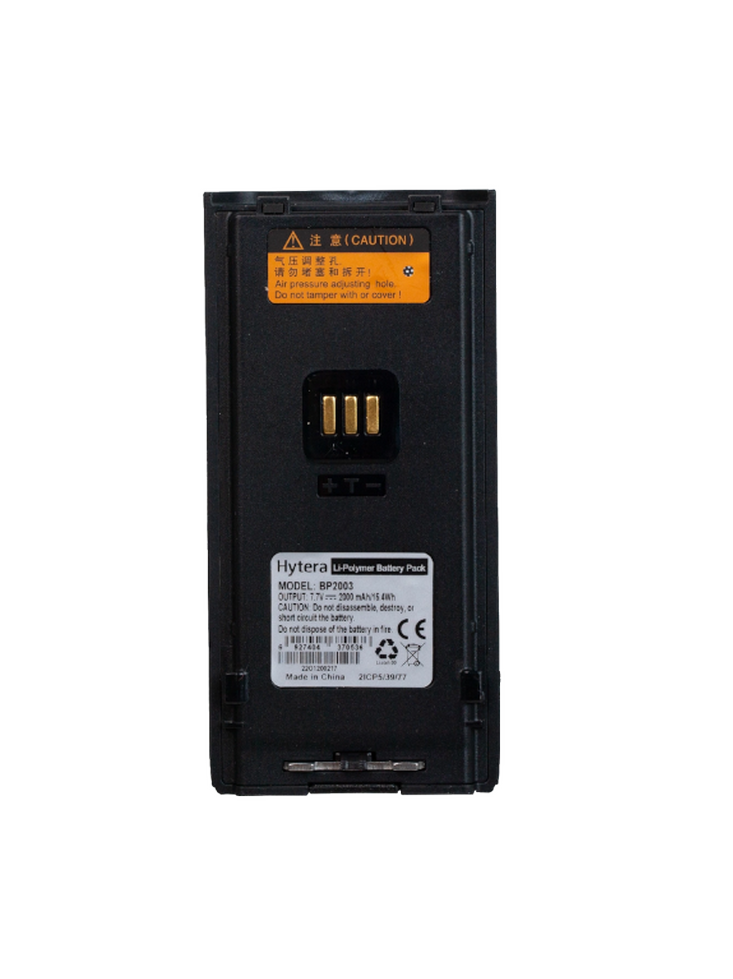

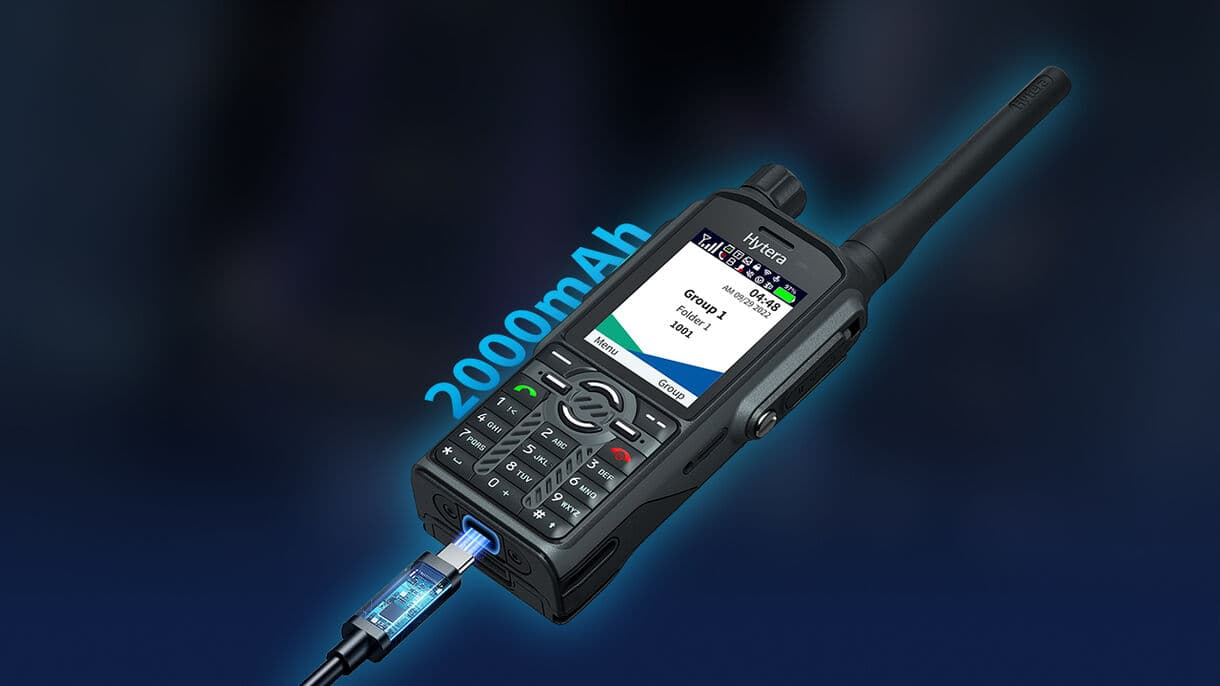

Long Lasting Battery
The 2,000mAh Li-Polymer battery, along with innovative low power consumption technology, can last up to 22 hours on the 5-5-90 operating cycle. In addition to the conventional charging contacts, the PT590 has an additional USB Type-C port, which can be used to charge the radio anywhere and at any time using mains power or even the power bank. With 18W fast charging, the PT590 can be fully charged in just 1.5 hours. Even a 30-minute quick charge can give the PT590 at least 10 hours of power for unexpectedly long shifts.
Control Your Radio on Voice*
We introduced voice control for the first time on the PT590. This feature supports group calls, talk group change, and feature switching such as turning on BT or location services. This allows users to concentrate on what they are doing while making the voice-activated call. (only supported by Advanced version, to be launched soon)

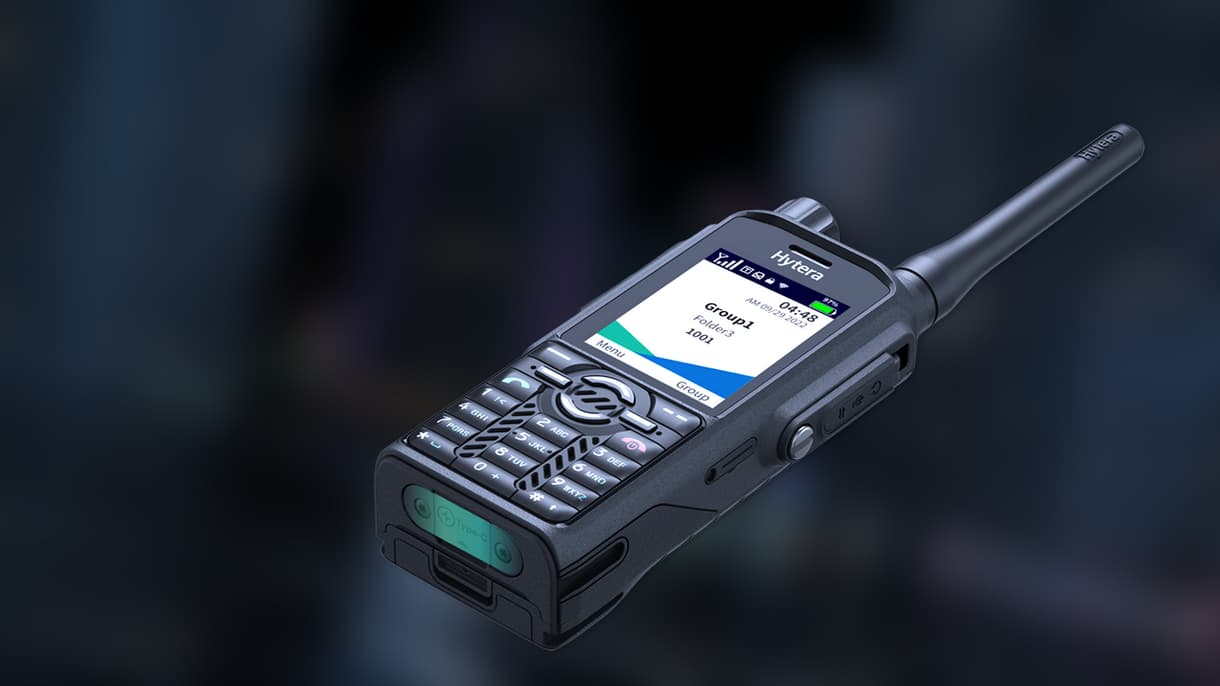

Professional USB Type-C Port
In addition to the charging function, this USB Type-C port also offers programming and updating functions. This design provides the ability to configure the device even if there is no programming cable for the accessory port at hand. To ensure the reliability of this connector, advanced nano-coating technology is used to protect the internal structure from corrosion and oxidation. This helps to ensure a stable connection even after long periods of use.
Specifications of PT590
- General
- User Interface
- RF Specifications
- GPS Specifications
- Environmental
| General | |
|---|---|
| Frequency Range | Fv: 380-475 MHz |
| Dimensions(H×W×D) mm | 125 x 55 x 31 mm |
| Weight | 285 g |
| Operating Voltage | 7.7 V |
| Battery | 2000mAh |
| Battery Life (TMO 5/5/90 duty cycle) | >22 hours |
| User Interface | ||
|---|---|---|
| Display | 2.4 inch, 320*240 pixels, 262K colors | |
| Talk Group-TMO | 12000 | |
| Talk Group-DMO | 6000 | |
| Telephone book | 2000 | |
| Inbox | ≤550 entries | |
| Outbox | ≤550 entries | |
| Drafts | ≤550 entries | |
| Folder-TMO | 200 | |
| Folder-DMO | 50 | |
| State Message | 200 | |
| RF Specifications | ||
|---|---|---|
| Channel Bandwidth | 25 kHz | |
| RF Power Output | 3 W | |
| RF Power Level Accuracy | ±2 dB | |
| RF Power Control | 5 dB per step | |
| Receiver Class | ETSI EN 392-2/396-2 Class A and Class B | |
| RX Sensitivity(Static) | -118 dBm (min) -120 dBm (typical) | |
| RX Sensitivity(Dynamic) | -108 dBm (min) -110 dBm (typical) | |
| Audio Power Output | 2 W (Peak 3 W) | |
| GPS Specifications | ||
|---|---|---|
| GNSS | GPS, BDS, GLONASS, Galileo | |
| RX Sensitivity | -149 dBm acquisition sensitivity -165 dBm tracking sensitivity | |
| Horizontal Position Accuracy | <1.0 m (95% Probable, -130 dBm) | |
| Cold Start (Time to First Fix) | <35 seconds | |
| Hot Start (Time to First Fix) | <1 second | |
| Conditions: | Open Sky environment -130 dBm signal strength 24 H static | |
| Environmental | ||
|---|---|---|
| Operating Temperature | -20°C to + 60°C -30°C to + 70°C (limited performance) | |
| Storage Temperature | -40°C to + 85°C | |
| Dust & Water Protection | IP65, IP66, IP67, IP68 (2 m, 4 h) | |
| Humidity | <95% | |
| Vibration,Drop&Shock | MIL-STD-810 H EN300 019-1-7 5M3 GJB150A | |
* Die auf dieser Seite gezeigten Produktbilder, Spezifikationen, Funktionen und Zubehörteile können aufgrund fortlaufender Technologie-Upgrades und Produktionsverbesserungen Änderungen unterliegen. Um sicherzustellen, dass Sie das korrekte Produkt und kompatibles Zubehör erhalten, kontaktieren Sie bitte vor Bestellung das Hytera-Verkaufsteam für die neuesten Informationen. Hytera behält sich das Recht vor, Produktdetails ohne vorherige Ankündigung zu ändern.

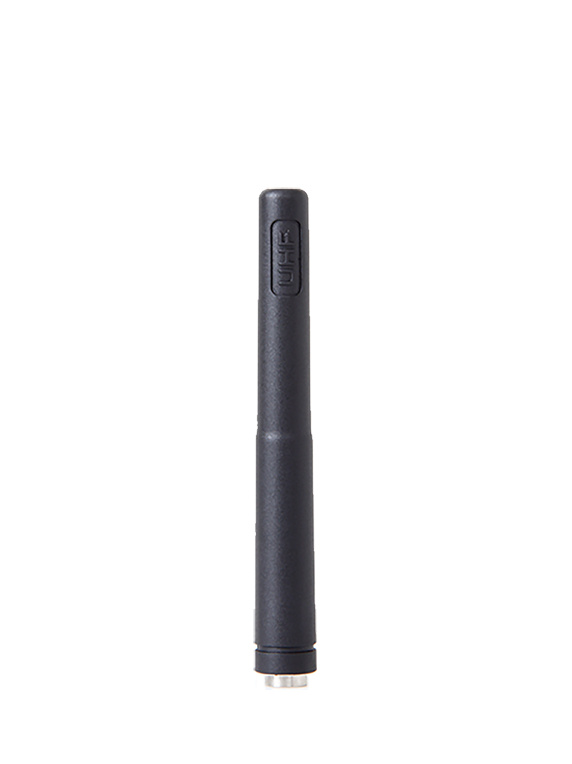

Standard Accessories of PT590

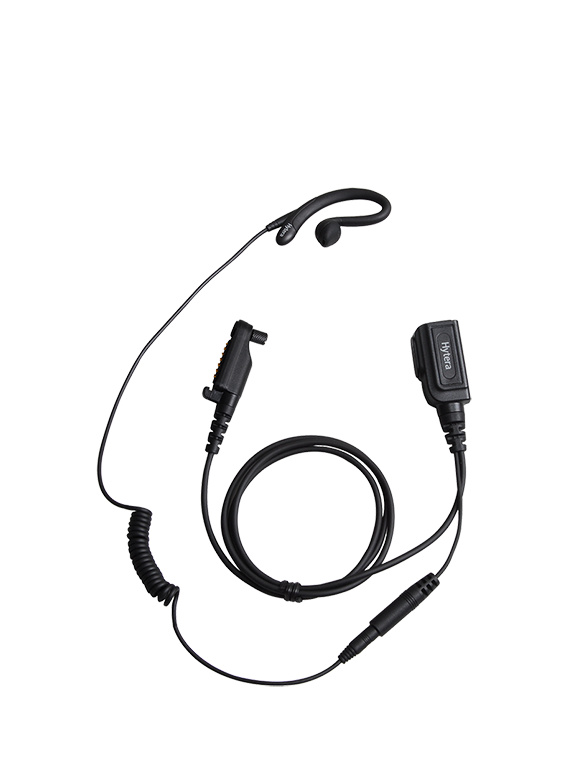

Optional Accessories of PT590
