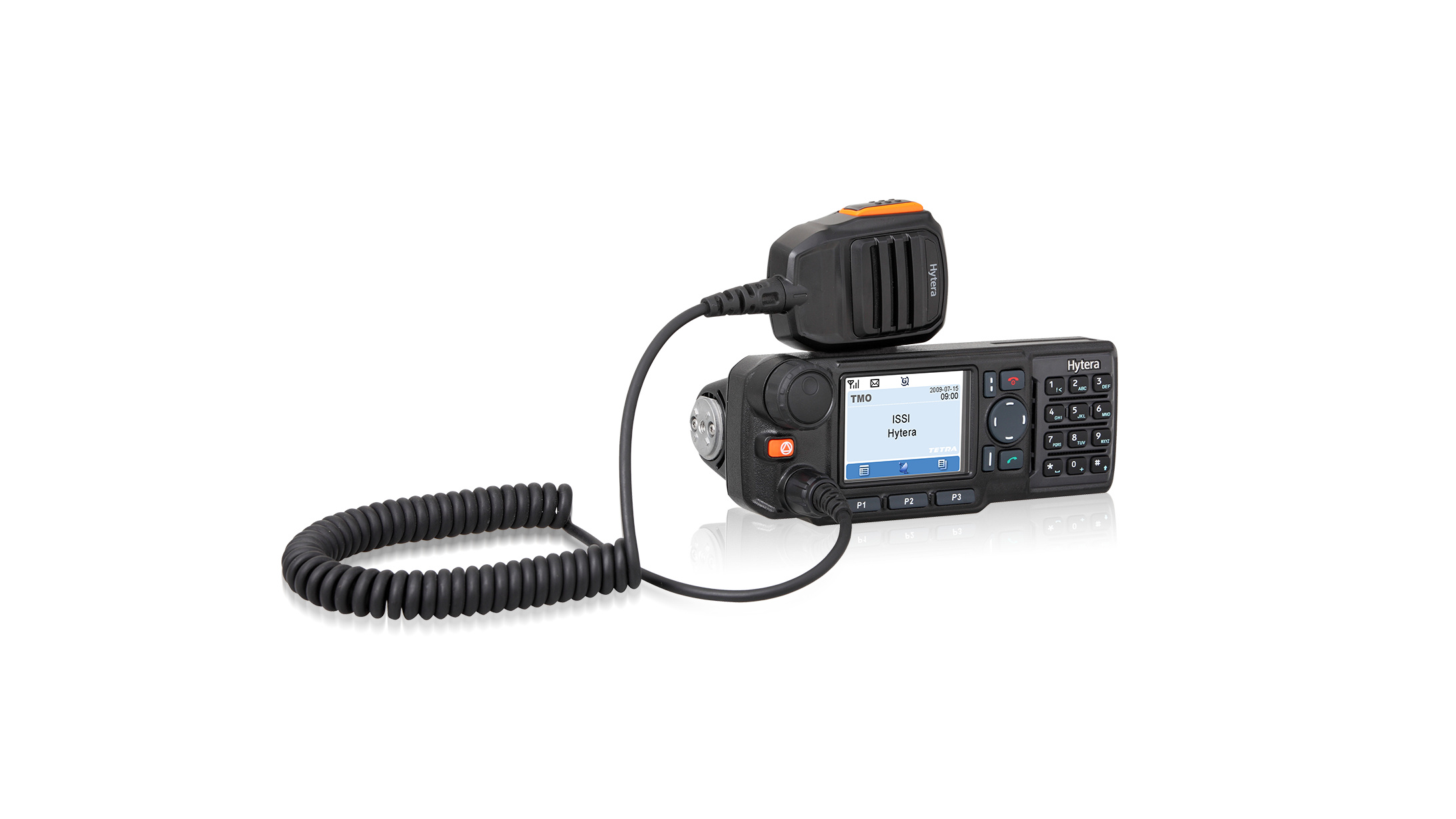

Ideal for vehicles, the Hytera MT680 Plus S is the mobile radio of choice for TETRA users. It stands out for its proven reliability, easy operation and ruggedness, offering versatile operating modes to tackle all manner of applications.
General | |
---|---|
Frequency Range | F1 : 320 - 380MHz F3 : 380 - 430MHz F4 : 405 - 475MHz F5 : 806-870 MHz |
Dimensions(W×H×D) | 70 x 184 x 201 (mm) |
Weight | 1853g |
Display | LCD Color 240 x 320 pixels Up to 260000 colors |
Keypad | Available both on main unit and keypad microphone |
Programmable Buttons | 25 |
Environmental Specifications | ||
---|---|---|
Dust & Water Intrusion | IP54 Standard (radio unit) IP67 Standard (control unit) |
Voice calls | ||
---|---|---|
Individual, Hooking | YES | |
Individual, non-Hooking | YES | |
Group, with Late Entry, TPID | YES | |
Notification Talkgroups | YES | |
Priority calls (group/indiv, HD/FD), 15 levels incl pre-emption | YES | |
via Repeater | YES | |
Repeater Type 1A, single call single frequency | YES | |
Repeater SDS and Status | YES | |
Repeater Air Interface Encryption DMO-2C | YES | |
Repeater Call Initiate and Participate | YES | |
via Gateway | YES | |
Gateway, group & Indiv voice calls from TMO to DMO and vv. | YES | |
Gateway pre-emption TMO to DMO and DMO to TMO | YES | |
Gateway SDS messaging TMO to DMO and vv. | YES | |
Gateway DGNA | YES | |
Gateway Emergency calls | YES | |
Full Duplex | YES | |
Telephony: PSTN, PABX, DTMF | YES | |
Phonebook restricted individual calls | YES | |
Broadcast | YES | |
Open group Call (DMO) | YES | |
DGNA | YES | |
DGNA "drag and drop" | YES | |
CAD (Call Authorised by Dispatcher) | YES | |
Standard DMO and TMO Folders | YES | |
Favourite folder (TMO & DMO mixed) | YES | |
Audio Profiles (Silent, Normal, Loud etc) | YES |
User Safety and convenience | ||
---|---|---|
Lone Worker | YES | |
Man Down | YES | |
(Silent) Emergency call to Selected group | YES | |
Emergency Status | YES | |
Emergency Protect mode | YES | |
Emergency call via gateway or repeater | YES | |
Tactical Emergency (to predefined group) | YES | |
GPS, LIP and NMEA | YES | |
GPS Triggers (distance, time, status, Emergency, TX-I etc) | YES | |
GPS Overspeed alarm | YES | |
GPS via repeater or gateway | YES | |
GPS Route Trace (display distance and relative speed) | YES | |
Ambiance Listening | YES | |
Bluetooth | YES | |
Vibrate | YES | |
RUA (Radio User Aliasing) | YES | |
Low battery Alert | YES | |
No Coverage' Alert | YES | |
CallOut (Full) | YES | |
Configurable Keypad Lock | YES | |
Transmit Inhibit (TX-I) (with status) | YES | |
Group Change Voice broadcast | YES | |
Multiple Menu languages | YES | |
Time Synchronisation with GPS or Network time | YES | |
Customised Menu items | YES | |
Startup Logo & Screensaver Logo | YES | |
Customisable Alert tones | YES | |
System interface connector: GPIO, Ext Alarm, Ignition sense | YES | |
System interface connector: Public Address, Independant audio out | YES |
Data | ||
---|---|---|
Send & Receive Status, shortcut keys | YES | |
Send & Receive SDS, shortcut keys | YES | |
SDS-1, 2, 3, 4, TL | YES | |
Flash SDS / Status, with Timer, initiate and/or receive | YES | |
Long text message (TMO) | NO | |
Status Remote Control | YES | |
Short Data Template (TMO) | YES | |
Work Order (TMO) | YES | |
OTAP(Over The Air Programming) (TMO) | YES | |
Packet Data, Single Slot (TMO) | YES | |
Packet Data, Multi Slot (TMO) | YES | |
Packet Data User Authentication | YES | |
Peripheral Equipment Interface (PEI) | YES | |
WAP (TMO) | YES | |
Circuit Mode Data (TMO) | YES | |
JAVA Platform 2.0 (TMO) | NO |
Network operation | ||
---|---|---|
Fallback | YES | |
Energy Economy mode | YES | |
Seamless Cell Reselection | YES | |
Multiple Networks | YES | |
Automatic Network Selection | NO |
Security | ||
---|---|---|
Authentication | SWMI Initiated | |
Mutual Authentication (SWMI Initiated) | Mutual | |
Air Interface Encryption Classes | Classes 1,2, 3 and 3G | |
Air Interface Encryption Keys | SCK, DCK, CCK, GCK | |
Air Interface Encryption OTAR | OTAR of SCK, CCK and GCK | |
Air Interface Encryption Algorithms | Clear, TEA1, TEA2, TEA3, TEA4 | |
Temporary Enable / Disable | YES | |
Permanent Disable | YES | |
End to End Encryption - Embedded AES128 / AES256 | YES | |
End to End Encryption - SIM Card | YES | |
End to End Encryption - Voice calls | YES | |
End to End Encryption - SDS | YES | |
PIN & PUK | YES | |
Password Protected programming | YES | |
Encrypted TEI query | YES |

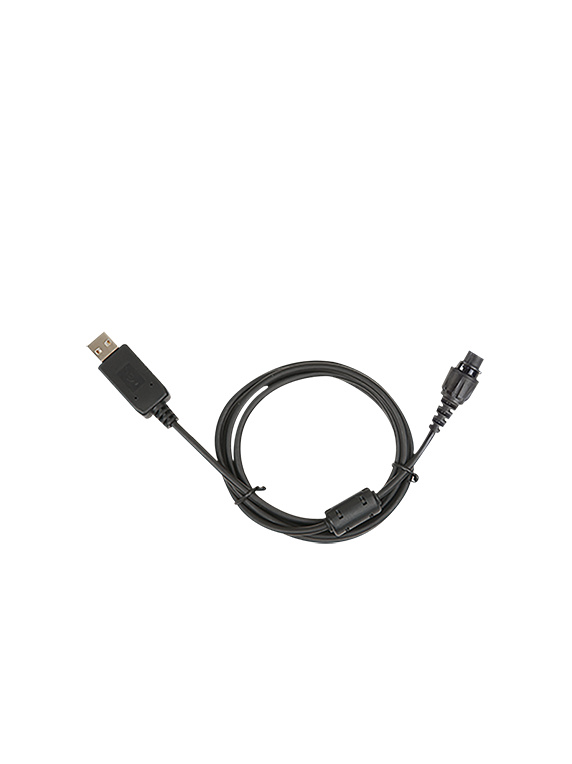

Programming Cable(USB to 10-pin Aviation Connector)
AC power cord with either UK or EU plug (RoHS)

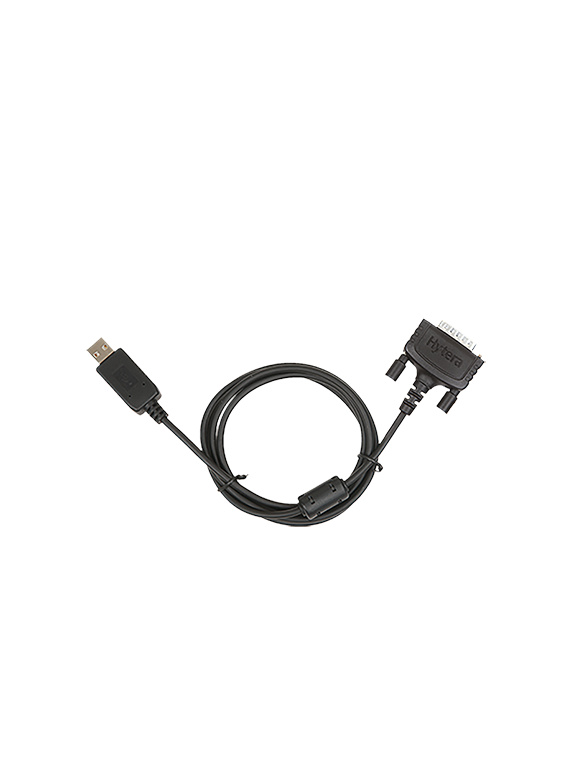

编程数据线(USB to DB26)

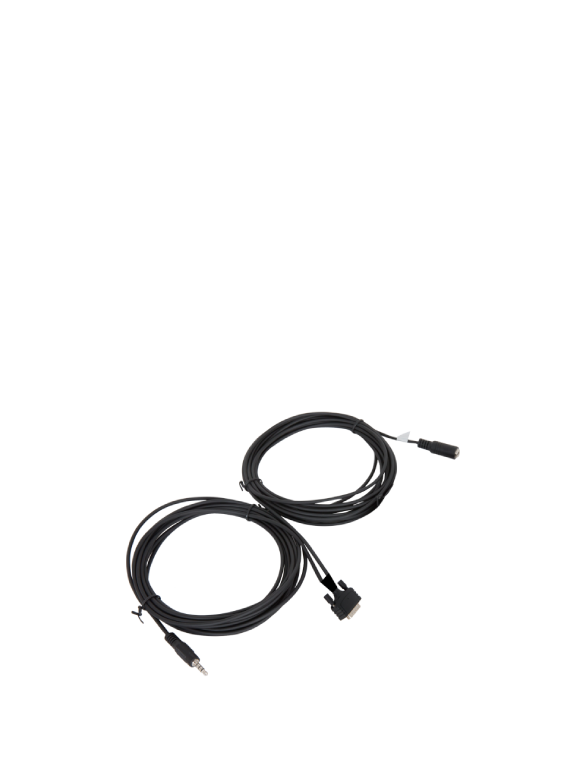

Foot PTT and microphone cable kit for MD655, MD785, MD785G, MD785i, MT680, MT680 Plus

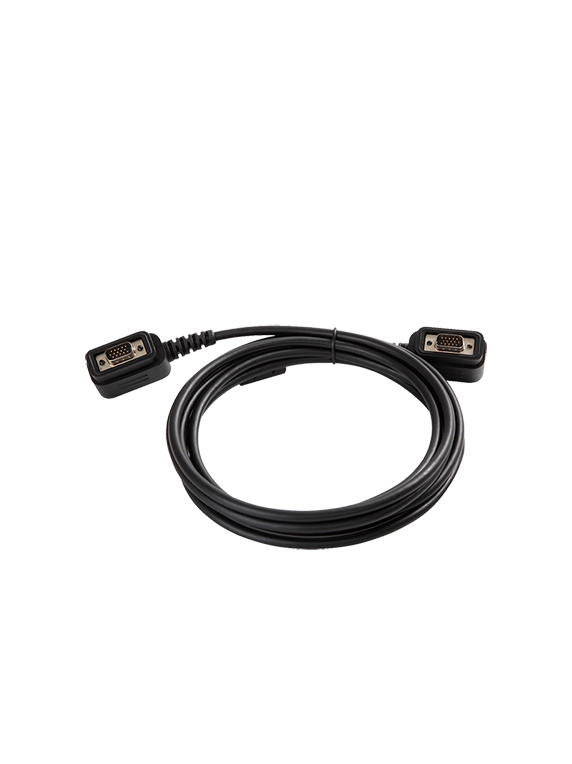

Data Cable, 15-core, 3 meters
Foot PTT, microphone and speaker cable kit for MD655, MD785, MD785G, MD785i, HM785, MT680, MT680 Plus

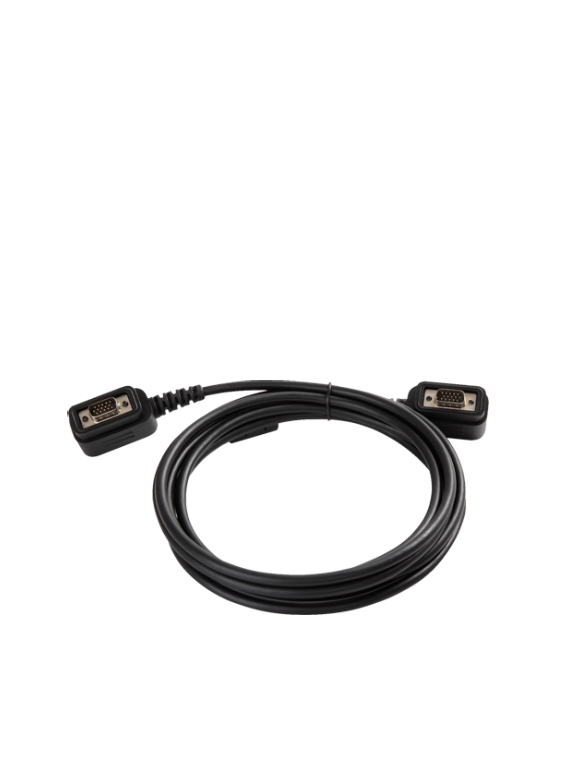

Data Cable, 15-core, 6 meters
Ignition Cable

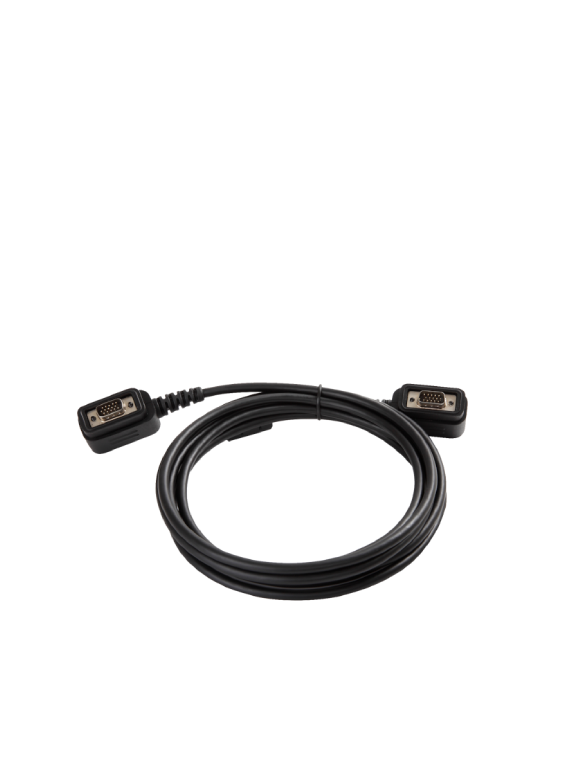

Data Cable, 15-core, 15 meters
Cable for Mobile Radio(DB26 interface split to speaker,PTT ignition,10m)

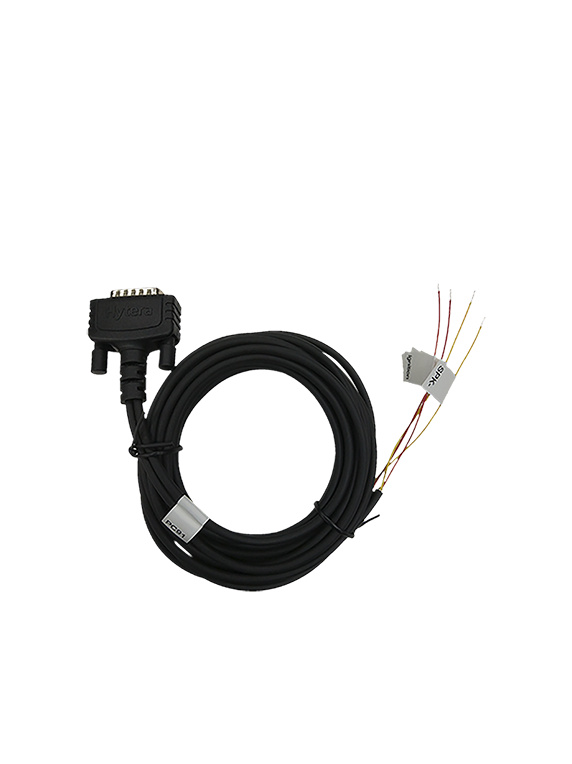

Data Cable(DB26 connector with Ignition and Speaker cable)

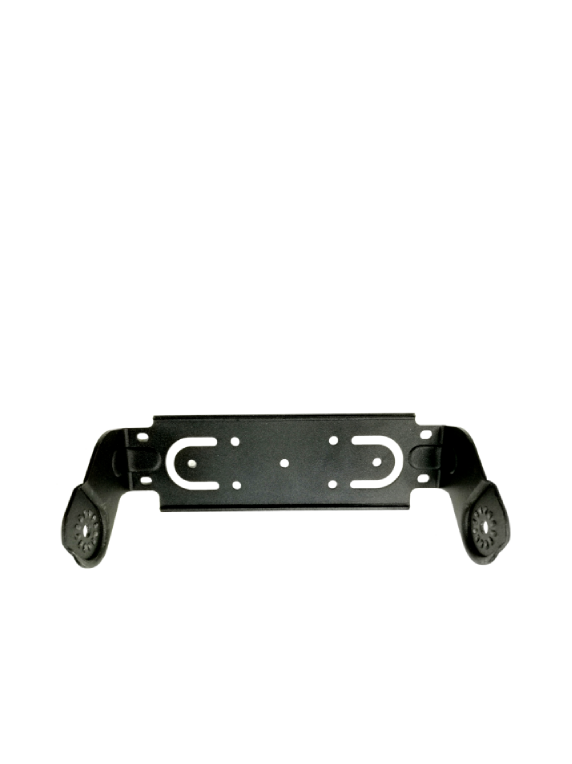

Mounting Bracket

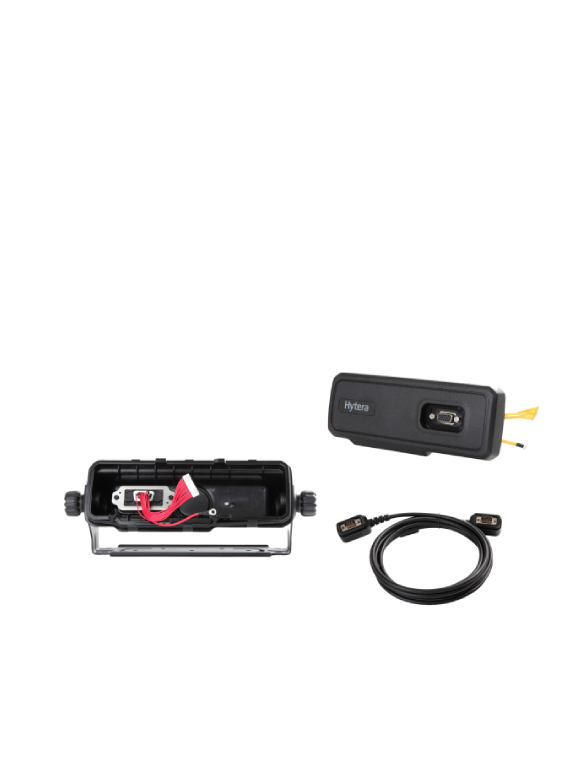

Mobile Radio Remote Mount Kit(3m)(IP54)

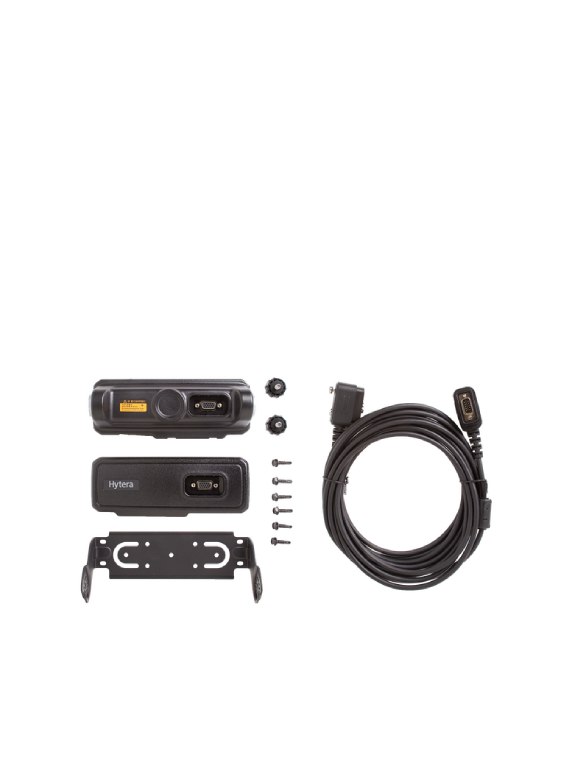

Mobile Radio Remote Mount Kit(6m)(IP54)
Mobile Radio Remote Mount Kit(3m)(IP67)
Mobile Radio Remote Mount Kit(6m)(IP67)

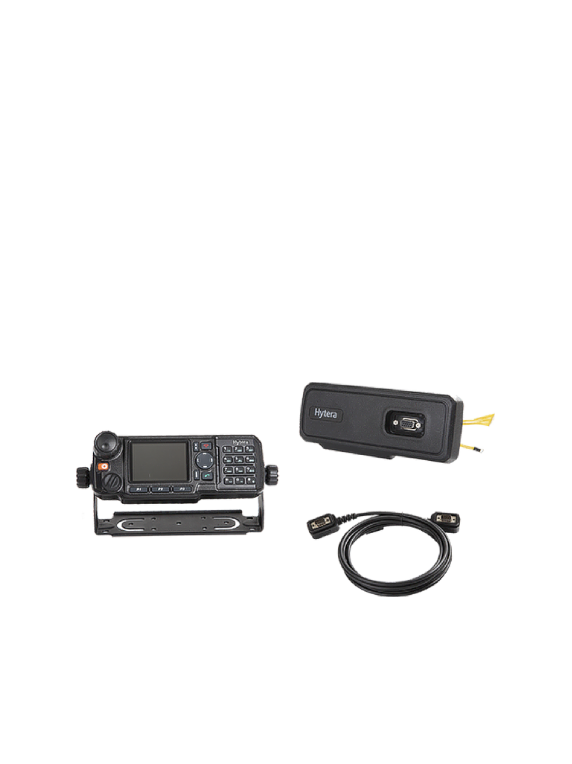

Mobile Radio Remote Mount Kit(15m)(IP67)
Mobile Radio Remote Mount Kit(15m)(IP54)
Foot PTT&Sun Visor Microphone&External Speaker Cable Kit
Vehicle Sun Visor Microphone (Straight Barrel Type) (use with POA117 or POA86)
Foot PTT with 3.5mm socket (for use with POA117 or POA86)
Footswitch (External PTT) with DB26 connector
Wireless PTT
External Speaker
External Speaker
External Speaker

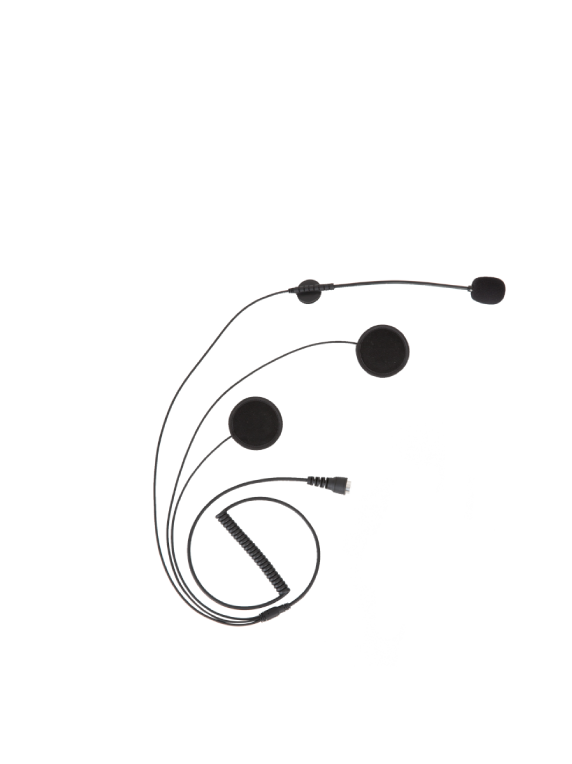

ECN27
Desktop Microphone
Palm Microphone(IP67)

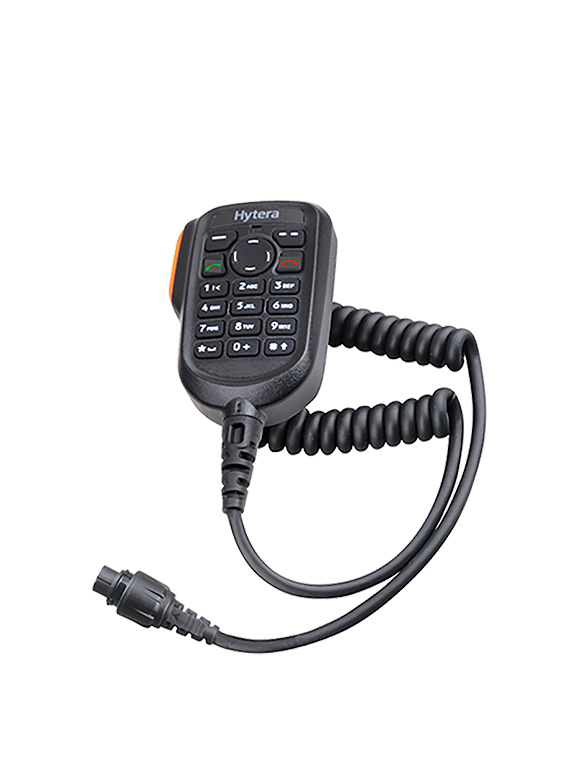

Keypad Palm Microphone

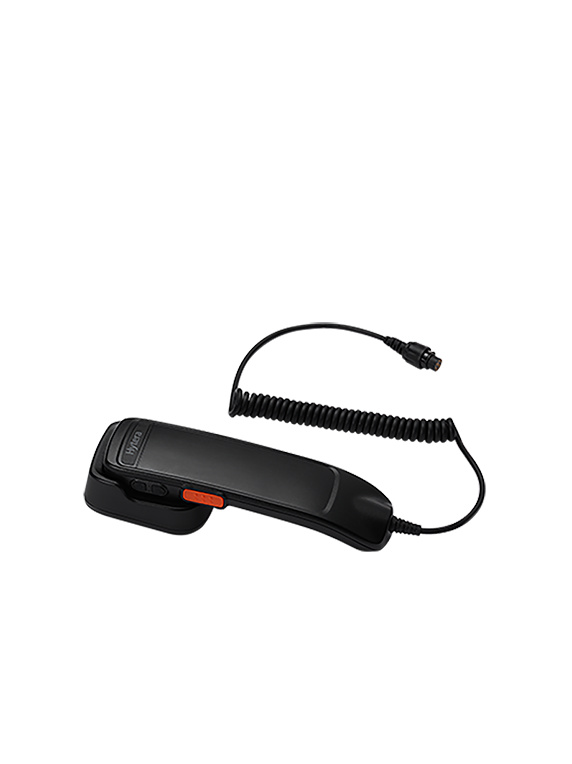

Telephone Style Handset
Wireless Remote Speaker Microphone
