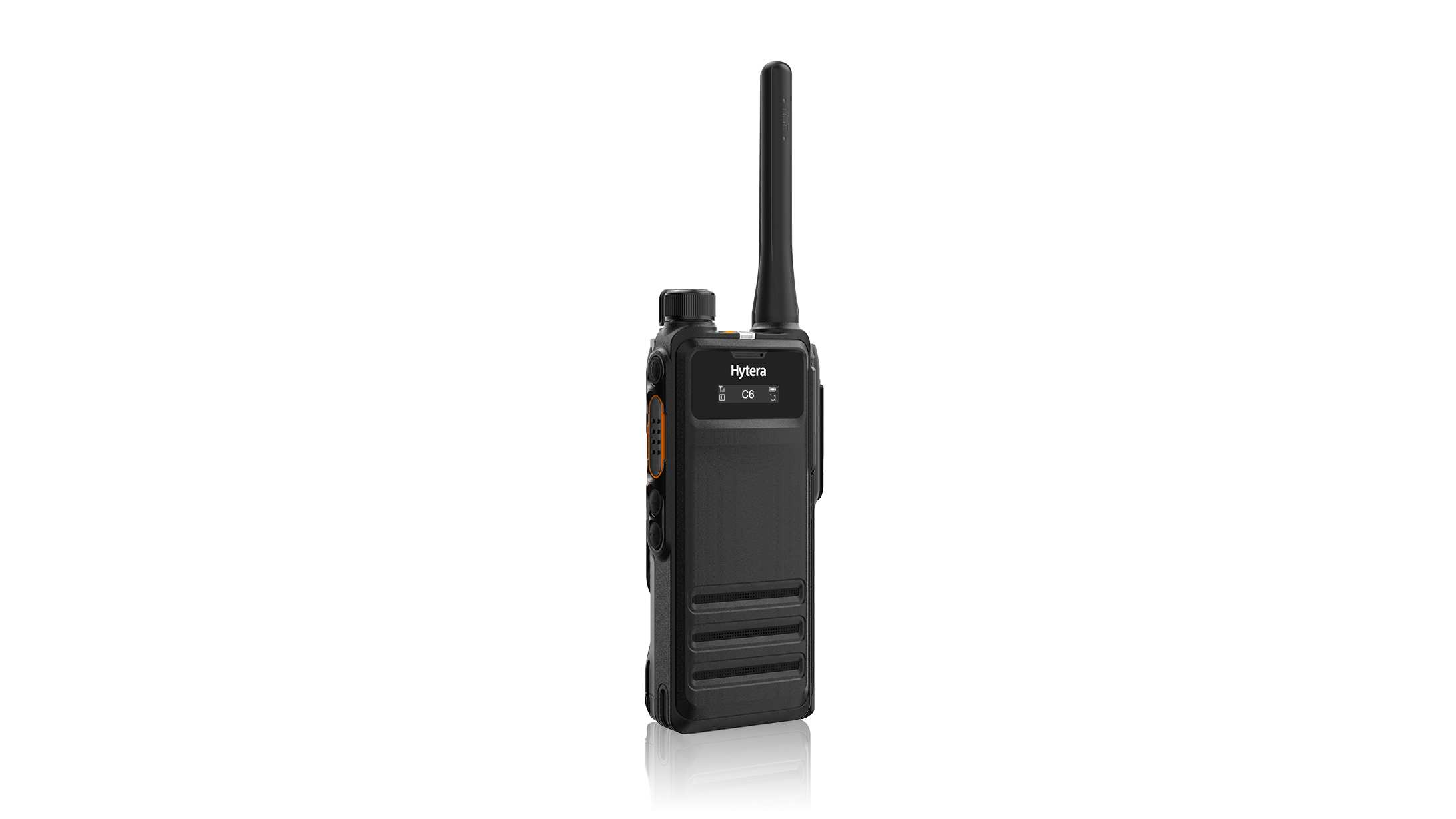

HP70X

Professional DMR Portable Two-way Radio

Handheld | DMR | GPS

The HP70X is our brand new Professional DMR Portable Two-way Radio, and represents the future on style and functions that refreshes the standards in digital radios, providing more efficient and more reliable communication with loud and clear audio, powerful battery, remarkable portability and ruggedness for ease of use across multiple environments and industries.

Thinner and Lighter

Thinner and Lighter

An optimized mechanical design and a compact lithium polymer battery are discreetly made to fit into the HP70X's design, making the radio only 29.5mm in thickness and 290g in weight, easy to carry.
Louder and Clearer Audio

Louder and Clearer Audio

HP70X equips an optimized powerful loudspeaker that can help users to hear clear sounds even in a noisy environment. Water-porting technology is also used to drain out any water that gets into the speaker cavity, ensuring the audio clarity is maintained. AI-based noise cancellation technology can decrease 30dB background noise and howling. No matter what noise environment the calling party is in, it ensures that the called party hears a clear sound.
Longer Battery Life

Longer Battery Life

HP70X optimizes product design and technologies to reduce power consumption, meanwhile the latest in proven lithium polymer technology is used in the standard battery which is lighter and smaller than ever before. The new technologies bring a duty cycle of 5/5/90 on achieving a shift life of 24 hours on high transmit power and ensure a full day of delivering key information and calls.
Enhanced Coverage

Enhanced Coverage

Extends the operational range and improves the talk range through high receiver sensitivity and high transmit power, stretching communications into areas where it simply was not possible before.
Higher Level of Ruggedness

Higher Level of Ruggedness

It is IP68 rated, impervious to water jets and submersible to a depth of 2 meters for 4 hours, and also resilient to 2-meter drops onto concrete, and stand up to the toughest environments.
Flexible Wireless Connection

Flexible Wireless Connection

HP70X supports the built-in BT 5.0 for wireless connections. The advantages of BT 5.0 are low power consumption, rapid transmission, multiple devices and more rich data applications such as BT earpiece, BT Patrol, BT positioning.
HP70X Professional DMR Portable Two-way Radio
Water-porting Design

Water-porting technology is also used to drain out any water that gets into the speaker cavity, ensuring the audio clarity is maintained.

Battery

The 26-hour long battery life, ensures a full day of delivering key information and calls, truly reduce burden and increase efficiency for users, and with anti-counterfeiting function, safety is more guaranteed.

High Reliability

IP68 rated and resilient to 2-meter drop to stand up to a lot of wear and tear, MIL-STD-810G standard.

Emergency Button

The emergency alarm button is bigger which is benefit to blind operation.

Buttons

Tactile PTT, two programmable buttons and more shortcut function settings.

Outstanding Audio

AI-based noise cancellation reduces background noise and enhances speech. The anti-magnetic design prevents the absorbtion of metallic waste generated in heavy manufacturing facilities.

Specifications of HP70X

  • General
  • Environmental
General
Frequency Range UHF1:400~470MHz; UHF3:350~400MHz; VHF: 136~174MHz
Channel Capacity 1024
Zone Capacity 64
Operating Voltage 7.7 V(rated)
Battery 2400 mAh Li-polymer Smart Battery: 3000 mAh Li-polymer(optional)
Battey Life(5/5/90 Duty Cycle,High TX Power) 2000mAh: 24 hours(GNSS off),20 hours(GNSS on); 3000mAh: 30 hours(GNSS off),25 hours(GNSS on)
Dimensions(H×W×D) mm 2400mAh:132 x 55 x 29.5mm 3000mAh:132 x 55 x 37.5mm
Weight 290 g (with 2400 mAh Bat.); 325 g (with 3000 mAh Bat.)
Display OLED Display: 0.91 inch
BT 5.0
Environmental
Operating Temperature -30 ℃*~+60 ℃
Storage Temperature -40 ℃~+85 ℃
Dust & Water Protection IP68
