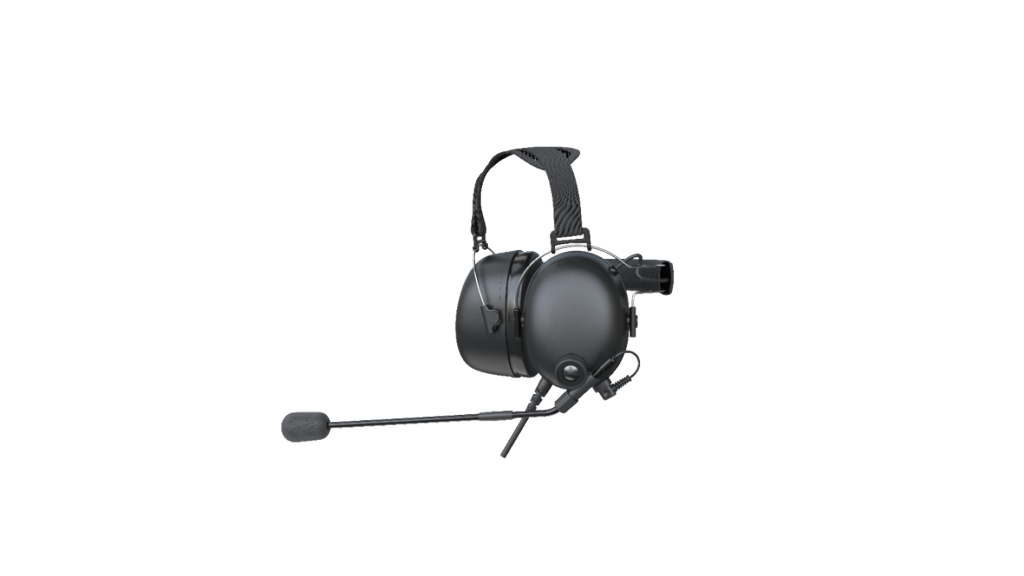

Specifications of ECN48-P
- Speaker specifications
- Microphone specifications
- General
| Speaker specifications | |
|---|---|
| Sensitivity | 76±4 dB/0.2 W @ 50cm 1 kHz |
| Rated power | 200mW; max: 500mW |
| Resistance | 2x32 Ω ±15% @ 1 kHz |
| Microphone specifications | ||
|---|---|---|
| Sensitivity | -52±3 dB @ 1 kHz 3V 2.2k 0 dB = 1 V/Pa | |
| General | ||
|---|---|---|
| PTT cycles | ≥ 100,000 | |
| Operating temperature | -30 to +60°C | |
| NRR | 28dB | |
| IP rating | IP54 | |
| Weight | about 463g | |
* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
