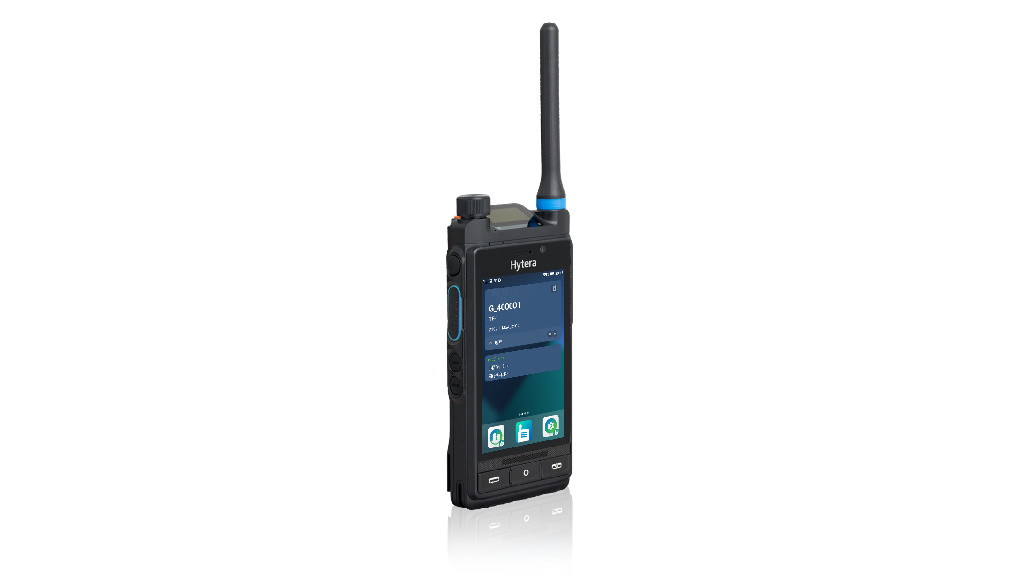

PTC760 Multi-mode Advanced Radio TETRA LTE

Handheld | LTE | TETRA

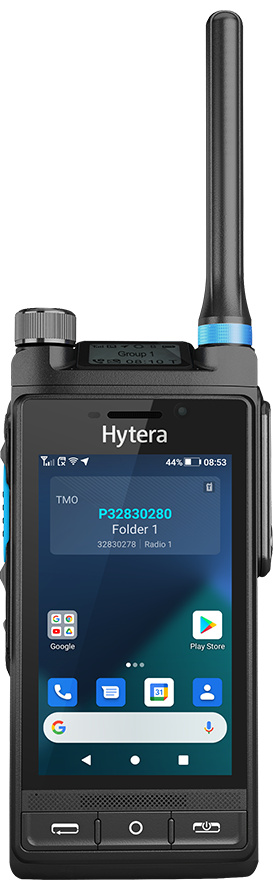

The PTC760 A10 is the revolutionary TETRA LTE hybrid device offering a radio and smartphone in one single device. It also comes with a large screen and powerful application adaptability, that ensures reliable critical voice communication via high speed transmission - from voice to multimedia services.

Highlights of PTC760

ACCESSORY OPTIONS

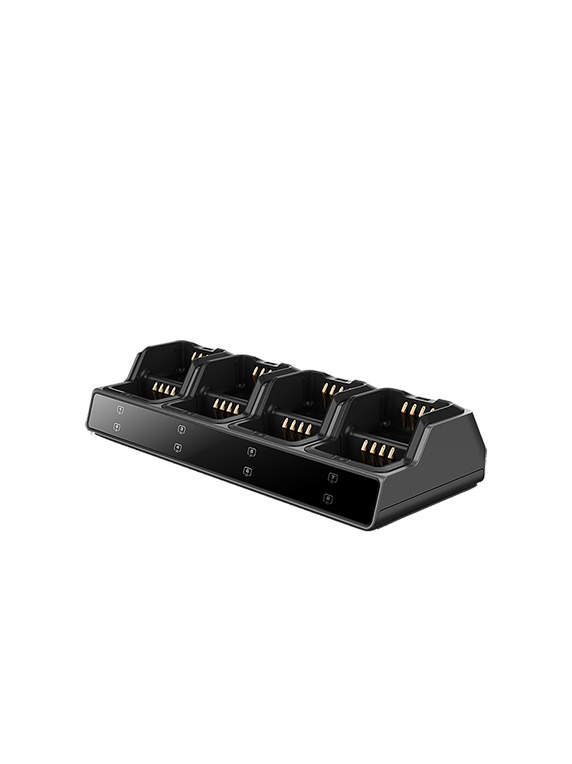

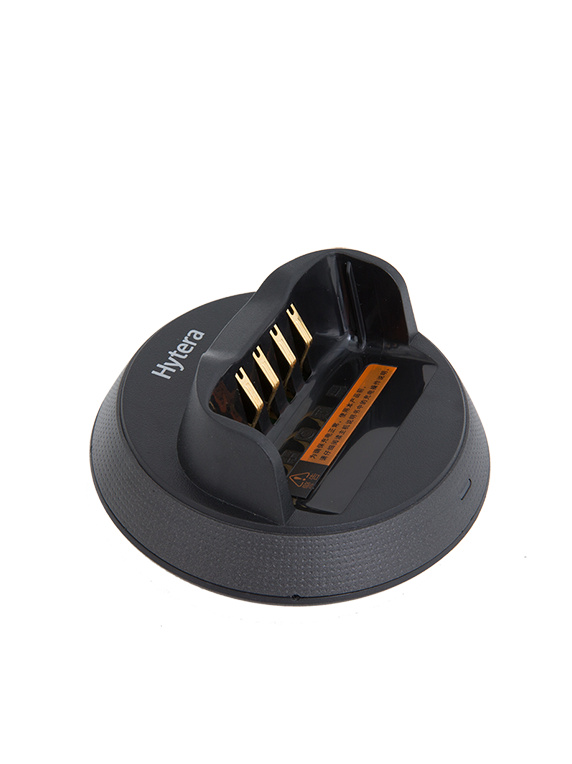

Optimise with high capacity power and charger options available to boost your device.

DUAL BLUETOOTH

Bluetooth V4.2 delivers an enhanced data rate with low energy consumption through a secure connection for wireless connectivity.

FLEXIBLE APPLICATIONS

Utilise the Hytera app development program (ADP), or push APK files to your device to improve your efficiency. You can even utilise the onboard applications and sensors provided.

OTAP

The Hytera Mobile Device Management (MDM) client can track device activity, push apps and updates over the air to your advanced radio fleet.

ROAMING

Traverse networks, moving from LTE to TETRA and back seamlessly to ensure you always remain connected. Dual SIM slots as standard.

WI-FI

Wireless connectivity for MDM programming and all manner of data applications, even operating as a portable hotspot.

Broadband and Narrowband Converged

Broadband data is supported by an LTE network (private or public), while the narrowband requirement is delivered by a private PMR network (TETRA).

Situational Awareness

Advanced audio technology supported by in-built GPS positioning and front and rear cameras supporting 4K HD video for information gathering.

Rugged and Reliable

Dust and waterproof, rated IP67, with scratch and shatter-resistant Gorilla® Glass 3.

Multiple Security Assurances

The device supports authentication and both software and hardware encryption to prevent voice and data theft.

SmartKey

Allows the user to quickly toggle between widgets and applications on the device screen.

Rapid Charging

The latest smart battery technology delivers fast charge, 3 times faster than regular batteries. With 80% of the battery capacity charged within 30 minutes.

Specifications of PTC760

Standard Functions and Frequency Range
General Data
Transceiver
Environmental Specs

Standard Functions and Frequency Range
Narrow Band	350-470 MHz;806-870MHz
LTE	3GPP LTE; FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28; TDD-LTE: B38/B39/B40/B41
CDMA	CDMA 1xRTT BC0; CDMA2000 1xEV-DO BC0
WCDMA	B1/B2/B4/B5/B8
TD-SCDMA	B34/B39
GSM	850/900/1800/1900 MHz
WLAN	802.11 b/g/n, 2.4 GHz
NFC	13.56 MHz (only the model of 350-470MHz is supported)
BT	V4.2 BDR+EDR+BLE
Positioning	GPS/BDS/GLONASS/Galileo/QZSS/A-GPS; Position performance for open zone: Horizontal position accuracy < 10 meters; TTFF(Cold boot)< 1 minute; TTFF(Hot boot)< 10 seconds

General Data
Dimensions(H×W×D) mm	139.5 mm x 68 mm x 25.3 mm
Weight	378±5 g
Operating System	Android 10.0
Processor	8-core, 2.0 GHz
Memory	RAM：3 GB; ROM：32 GB eMMC; Supports up to 256 GB with Micro SD card
Sensors	6-axis E-Compass; Accelerometer; Ambient Light Sensor; Proximity Sensor; Gyroscope
Peripheral Interface	20PIN Accessory/Charging Port
Display	Top Screen: 1.0” 128x88 Color: black & white; Main Screen: 4.0" 1024x600, Color depth: 24bit; Capacitive, Touch screen, Gloves Proofed
Card Slots	2x Micro SIM card; 1x Micro SD card; 1x Encryption card for narrowband
Camera	Front&Rear: 13MP, auto focus

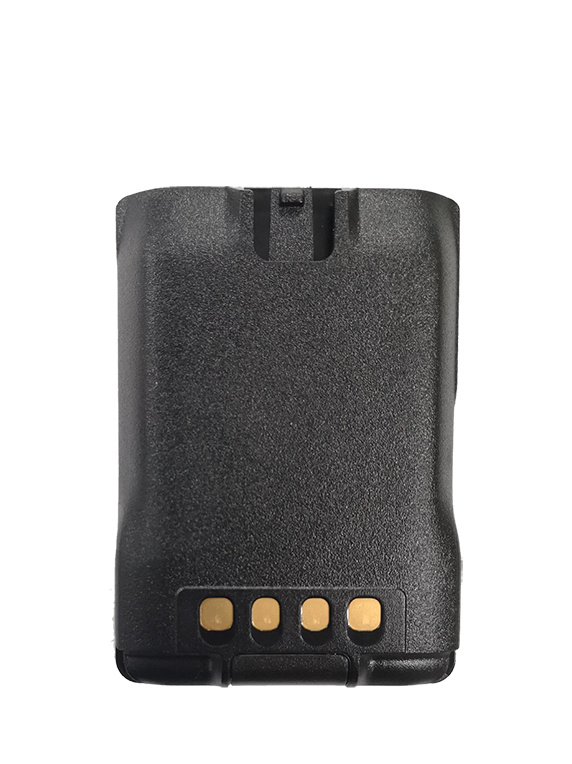

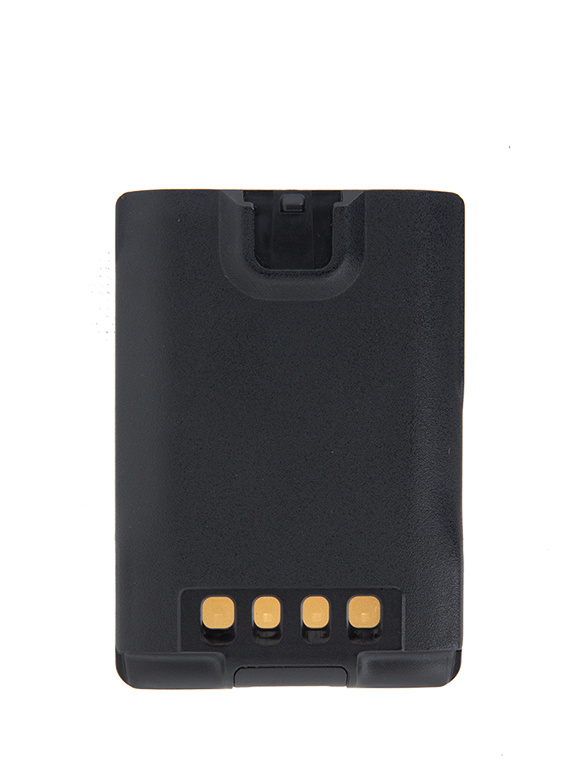

Battery	2900 mAh Li-polymer, 7.6V(Rated);4000mAh Smart Li-polymer, 7.6V(Optional)

Transceiver
Channel Spacing	25 kHz
TX Power	1.8 W(Class 3L); 1 W(Class 4)

Environmental Specs
ESD	IEC 61000-4-2 Level 3
Dust & Water Protection	IEC 60529-IP67
