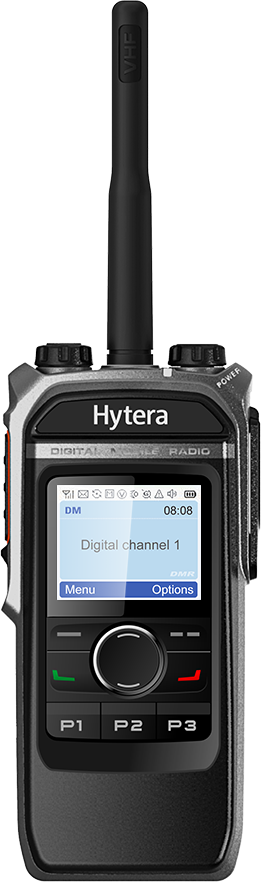

PD66X Professional DMR Portable Two-way Radio


Handheld | DMR | GPS

With IP67 protection, this radio with rugged metal frame can perform extremely well in harsh outdoor environment, such as with dust, rain, and snow, which further protects communications against interruption. With advanced digital noise-cancelling technology, the radio provides clear and crisp call quality in highly noisy environment.

* We recommend this model.

Highlights of PD66X

DMO True 2-slot

Hytera provides 2-slot solution in Repeater Mode . The radio can useboth slots for the communication.

Reliable and Durable

The radio is IP67 certified and can withstand up to 1m submersionfor 30 minutes.

Dual Modes

The radio can work in both analog and digital modes for a smoothanalog-to-digital migration.
PD66X Professional DMR Portable Two-way Radio
Small , Sleek , Light

The size is 122×55× 27mm , weight is 310g.

One Touch Call/Text

PD66X supports One Touch Call/Text features to transmit callor text message via the programmed key.

Speaker and Microphone

Provide clear receive andtransmit audio.


Double Channel Capacity.


LCD display & limited keypad design.

Specifications of PD66X

Frequency Range UHF:400-527MHz; VHF:136-174MHz
Channel Capacity 1024
Zone Capacity 64
Operating Voltage 7.4V(rated)
Battery 1500mAh (Li-ion); 2000mAh (Li-ion)
Battey Life(5/5/90 Duty Cycle,High TX Power) Analog/Digital: 14.5hours/21hours (2000mAh); 11hours/16hours (1500mAh)
Dimensions(H×W×D) mm 122mm×54mm×27mm
Weight 329g (2000mAh); 310g(1500mAh)
Display LCD display:160×128 pixel,65536 colours,1.8 inch,6 rows
Operating Temperature -30℃~+60℃
Storage Temperature -40℃~+85℃
Dust & Water Protection IP67
